3NW7613-4

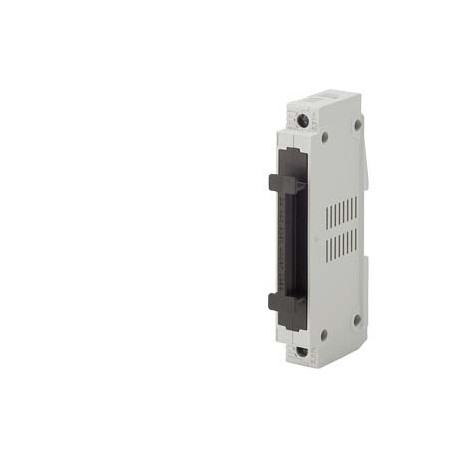

3NW7613-4 SIEMENS SENTRON, cylindrical fuse holder, 10x85 mm, 1-pole, In: 32 A, Ue DC: 1500 V, for photovolt..
$0.00USD
4314 in stock
Key Specifications
:
EAN:4001869502618
UPC:Not available
ETIM:6
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869502618 |
| UPC | Not available |
| ETIM | 6 |
| depth | 64 mm |
| width | 23 mm |
| UNSPSC | 14 |
| eClass | 7.1 |
| height | 130 mm |
| Group Code | P310 |
| net weight | 92 g |
| Confirmation | |
| Metal Factor | None |
| Date5/18/2022 | |
| Product Group | 5764 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | PV Cylindrical Fuses |
| Net Weight (kg) | 0,101 Kg |
| number of poles | 1 |
| Country of origin | Germany |
| operating voltage | |
| size of fuse link | 10 x 85 mm |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Lockable (EF000113) | false |
| Packaging Dimension | 124,00 x 143,00 x 72,00 |
| Product Description | SENTRON, cylindrical fuse holder, 10x85 mm, 1-pole, In: 32 A, Ue DC: 1500 V, for photovoltaic application |
| product designation | Cylindrical fuse holder |
| protection class IP | IP20 |
| design of the product | For photovoltaic applications |
| Minimum order quantity | 5 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at DC / rated value | 1 500 V |
| For fuse size (EF008316) | 10x85 mm |
| General Product Approval | Declaration of Conformity |
| Built-in depth (EF000218) | 64.0 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | - |
| Nominal voltage (EF000002) | 1500 |
| Number of poles (EF001391) | 1 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 3NW7613-4 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With optical defect indication (EF008181) | false |
| operational current / at AC / rated value | 32 A |
| Concurrently switching N-neutral (EF005997) | false |
| Width in number of modular spacings (EF002950) | 1.3 |
| Region Specific PriceGroup / Headquarter Price Group | 13K / 1DN |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.04.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
PV-FUSEHOLDER 10X85 1500V ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Multipurpose Order 5 Units ** ). Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
