3NW7513-0HG

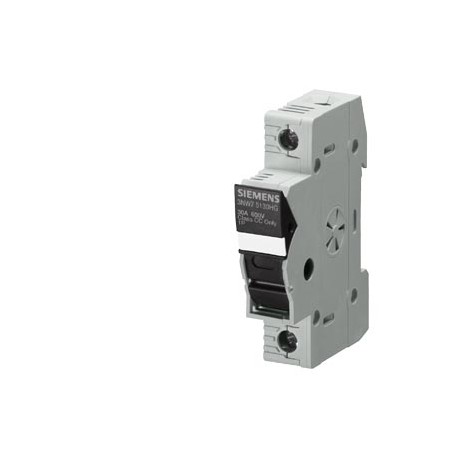

3NW7513-0HG SIEMENS SENTRON, fuse holder, Class CC, 1-pole, In: 30 A, Un AC: 600 V, respect national install..
$0.00USD
4987 in stock
Key Specifications
:Confirmation
EAN:4001869333564
UPC:754554927749
ETIM:6
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869333564 |
| UPC | 754554927749 |
| ETIM | 6 |
| IDEA | 4 |
| depth | 65 mm |
| width | 18 mm |
| UNSPSC | 14 |
| eClass | 7.1 |
| height | 85 mm |
| Group Code | P310 |
| net weight | 52 g |
| Metal Factor | L-P----- |
| Date5/13/2022 | |
| Product Group | 5538 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | SENTRON UL Fuse Systems |
| Net Weight (kg) | 0,051 Kg |
| number of poles | 1 |
| Country of origin | Germany |
| operating voltage | |
| size of fuse link | Class CC |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Lockable (EF000113) | false |
| Packaging Dimension | 92,00 x 215,00 x 63,00 |
| Product Description | SENTRON, fuse holder, Class CC, 1-pole, In: 30 A, Un AC: 600 V, respect national installation rules! |
| product designation | Fuse holder |
| protection class IP | IP20 |
| Minimum order quantity | 12 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 600 V |
| For fuse size (EF008316) | Other |
| General Product Approval | Declaration of Conformity |
| Built-in depth (EF000218) | 65.0 |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Mounting method (EF000003) | - |
| Nominal voltage (EF000002) | 600 |
| Number of poles (EF001391) | 1 |
| Standard lead time ex-works | 180 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| UK Declaration of Conformity | Miscellaneous |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 3NW7513-0HG |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With optical defect indication (EF008181) | false |
| operational current / at AC / rated value | 30 A |
| Concurrently switching N-neutral (EF005997) | false |
| Width in number of modular spacings (EF002950) | 1 |
| Region Specific PriceGroup / Headquarter Price Group | 13K / 1DN |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationDeclaration of ConformityotherUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
BASE FUSES CILIND P. MOUNTING 1 POLE, WIDTH MOUNT 1TE P. CARTRIDGES FUSES CILIND. 10.3 X 38.1 CLASS CC MOUNTING DEPTH 70 MM ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 12 U
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
