3NW7511-3HG

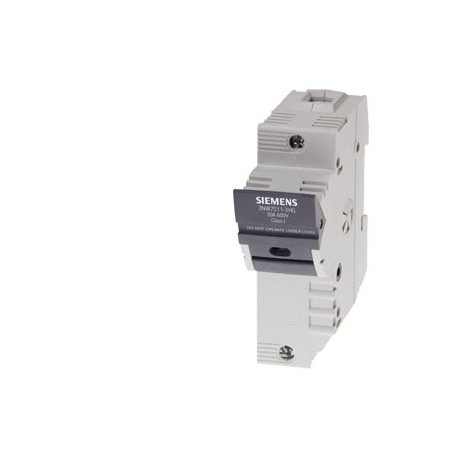

3NW7511-3HG SIEMENS SENTRON, fuse holder, Class J, 1-pole, In: 30 A, Un AC: 600 V, for mounting on DIN rail,..
$0.00USD
3890 in stock
Key Specifications
:Confirmation
EAN:4001869523125
UPC:Not available
ETIM:6
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869523125 |
| UPC | Not available |
| ETIM | 6 |
| depth | 69 mm |
| width | 36 mm |
| UNSPSC | 15 |
| eClass | 7.1 |
| height | 115 mm |
| Group Code | P310 |
| net weight | 158 g |
| Metal Factor | LHB----- |
| Date5/12/2022 | |
| Product Group | 5538 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | SENTRON UL Fuse Systems |
| Net Weight (kg) | 0,160 Kg |
| number of poles | 1 |
| Country of origin | Mexico |
| operating voltage | |
| size of fuse link | Class J |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Lockable (EF000113) | - |
| Packaging Dimension | 146,00 x 218,00 x 75,00 |
| Product Description | SENTRON, fuse holder, Class J, 1-pole, In: 30 A, Un AC: 600 V, for mounting on DIN rail, respect national installation rules! |
| product designation | Fuse holder |
| protection class IP | IP20 |
| design of the product | Mounting on DIN rail |
| Minimum order quantity | 6 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 600 V |
| For fuse size (EF008316) | Other |
| General Product Approval | other |
| Built-in depth (EF000218) | - |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Mounting method (EF000003) | Other |
| Nominal voltage (EF000002) | - |
| Number of poles (EF001391) | 1 |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 3NW7511-3HG |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With optical defect indication (EF008181) | - |
| operational current / at AC / rated value | 30 A |
| Concurrently switching N-neutral (EF005997) | false |
| Width in number of modular spacings (EF002950) | 2 |
| Region Specific PriceGroup / Headquarter Price Group | 13K / 1DN |
| General Product ApprovalotherConfirmationMiscellaneous | General Product Approval |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
FUSE HOLDER CLASS J 30A 600V 1P.( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiply 6 Units ** ). Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
