3NW7112

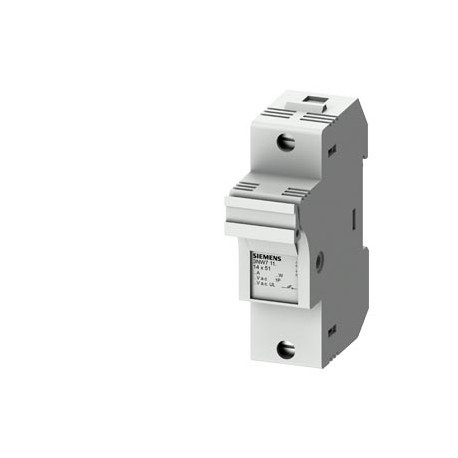

3NW7112 SIEMENS SENTRON, cylindrical fuse holder, 14x51 mm, 1-pole, In: 50 A, Un AC: 690 V, LED signal detec..
$0.00USD
3237 in stock
Key Specifications
:
EAN:4001869253244
UPC:754554927435
ETIM:6
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869253244 |
| UPC | 754554927435 |
| ETIM | 6 |
| depth | 70 mm |
| width | 27 mm |
| UNSPSC | 14 |
| eClass | 7.1 |
| height | 90 mm |
| Group Code | P310 |
| net weight | 101 g |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/13/2022 | |
| Product Group | 5539 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | Cylindrical Fuse Links and Cylindrical Fuse Holders |
| Net Weight (kg) | 0,116 Kg |
| number of poles | 1 |
| Country of origin | Slovenia |
| operating voltage | |
| size of fuse link | 14 x 51 mm |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Lockable (EF000113) | false |
| Packaging Dimension | 85,00 x 98,00 x 30,00 |
| Product Description | SENTRON, cylindrical fuse holder, 14x51 mm, 1-pole, In: 50 A, Un AC: 690 V, LED signal detector |
| product designation | Cylindrical fuse holder |
| protection class IP | IP20 |
| design of the product | LED signal detector |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 690 V |
| For fuse size (EF008316) | 14x51 mm |
| General Product Approval | Declaration of Conformity |
| Built-in depth (EF000218) | 70.0 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | - |
| Nominal voltage (EF000002) | 690 |
| Number of poles (EF001391) | 1 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 3NW7112 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With optical defect indication (EF008181) | true |
| operational current / at AC / rated value | 50 A |
| Concurrently switching N-neutral (EF005997) | false |
| Width in number of modular spacings (EF002950) | 1.5 |
| Region Specific PriceGroup / Headquarter Price Group | 13K / 1BM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
Fuse holder base w/LED signaller p/cylindrical fuse cartridges tam. 14 x 51, 50A, 1 pole. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
