3NP5065-1EF26

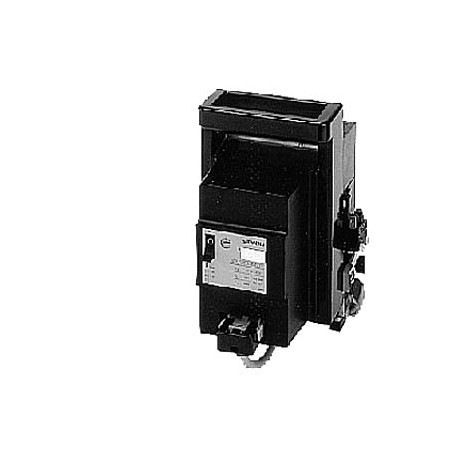

3NP5065-1EF26 SIEMENS SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, with Adapter for Busbar s..
$0.00USD
4596 in stock
Key Specifications
:Confirmation
EAN:4011209089426
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209089426 |
| UPC | Not available |
| ETIM | 5 |
| depth | 187.5 mm |
| width | 134 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 196 mm |
| Group Code | P360 |
| net weight | 2 807 g |
| fuse system | LV HRC fuse |
| ● maximum | 55 °C |
| ● minimum | -25 °C |
| Metal Factor | LCP----- |
| Date5/17/2022 | |
| Product Group | 5851 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| mounting type | Plug-in |
| Commodity Code | 85362090 |
| Product family | For 40 mm Busbar System |
| Net Weight (kg) | 2,807 Kg |
| number of poles | 3 |
| ● main switch | No |
| fastening method | Busbar |
| Country of origin | Germany |
| Test Certificates | other |
| operating voltage | |
| size of fuse link | NH000, NH00 |
| ● rail mounting | Yes |
| ● safety switch | Yes |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| ● floor mounting | No |
| Packaging Dimension | 155,00 x 220,00 x 260,00 |
| Product Description | SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, with Adapter for Busbar system 8US 40 mm, with high-speed closing, screw terminal, Fuse monitoring: through 3VU, Auxiliary switch at Switch disconnector: 1 NO+1 NC, Auxiliary switch at the Fuse monitoring: 2 NO |
| operational current | |
| product designation | 3NP5 fuse switch disconnector |
| suitability for use | |
| design of the product | auxiliary switch at the switch disconnector: 1 NO + 1 NC, auxiliary switch at the fuse monitoring device: 2 NC |
| Cable entry (EF000537) | - |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at DC / rated value | 440 V |
| ● switch disconnector | Yes |
| General Product Approval | Declaration of Conformity |
| Special Test Certificate | Miscellaneous |
| ● EMERGENCY OFF switch | No |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| size of disconnecting link | NH000, NH00 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 35 °C / rated value | 160 A |
| ● at 40 °C / rated value | 157 A |
| ● at 45 °C / rated value | 154 A |
| ● at 50 °C / rated value | 152 A |
| ● at 55 °C / rated value | 149 A |
| ● at 60 °C / rated value | 144 A |
| ● at 65 °C / rated value | 136 A |
| ● at 70 °C / rated value | 128 A |
| Package size unit of measure | MM |
| ● for main current circuit | screw-type terminals |
| Suitable for fuses (EF006692) | NH000, NH00 |
| number of modular width units | 1 |
| type of electrical connection | 2.5 - 150 mm² DIN 46 234 a. up to 95 mm² DIN 46 235 |
| Motor drive optional (EF007386) | false |
| busbar center-to-center spacing | 40 mm |
| design of the actuating element | Cover handle |
| design of the safety monitoring | by 3VU |
| With error protection (EF007384) | true |
| insulation voltage / rated value | 690 V |
| Motor drive integrated (EF006697) | false |
| Version as main switch (EF006981) | false |
| operational current / rated value | 160 A |
| ● at AC / rated value / maximum | 690 V |
| Type of control element (EF006976) | Cover grip |
| product function / fuse monitoring | Yes |
| protection class IP / on the front | IP00 |
| Equipped with connectors (EF011696) | false |
| Position control element (EF009410) | Front side |
| Version as safety switch (EF006985) | true |
| ambient temperature / during storage | |
| Article Number (Market Facing Number) | 3NP5065-1EF26 |
| Rated permanent current Iu (EF001389) | 160.0 |
| Suitable for floor mounting (EF007243) | false |
| Suitable for front mounting (EF007246) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| design of the load switch / strip form | No |
| surge voltage resistance / rated value | 6 kV |
| Suitable for busbar mounting (EF007259) | true |
| Max. rated operation voltage Ue AC (EF007355) | 690 |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Rated operation power at AC-23, 400 V (EF007027) | - |
| Rated short-time withstand current lcw (EF007050) | - |
| Version as emergency stop installation (EF006959) | false |
| Region Specific PriceGroup / Headquarter Price Group | 12Q / 1CL |
| Conditioned rated short-circuit current Iq (EF001444) | - |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| installation altitude / at height above sea level / maximum | 2 000 m |
| Compliance with the substance restrictions according to RoHS directive | Given |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Tris(4-nonylphenyl, branc... > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Tris(4-nonylphenyl, branched and linear) phosphite (TNPP) with greater than or equal to 0.1% w/w of 4-nonylphenol, branched and linear (4-NP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| breaking capacity maximum short-circuit current (Icu) / at 400 V / rated value | 1.6 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 2.66 W |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousUK Declaration of ConformityTest CertificatesotherSpecial Test CertificateMiscellaneousConfirmation | General Product Approval |
Product Description
Disconnectors with fuses under load I=160A, U=690V, 3-pole block of auxiliary contacts 1NA+1NC with adapter for 40mm system, with lower cable terminals, NH00 fuse size, with fuse monitoring by 3VU13.
