3NJ6214-1AA00-0AA0

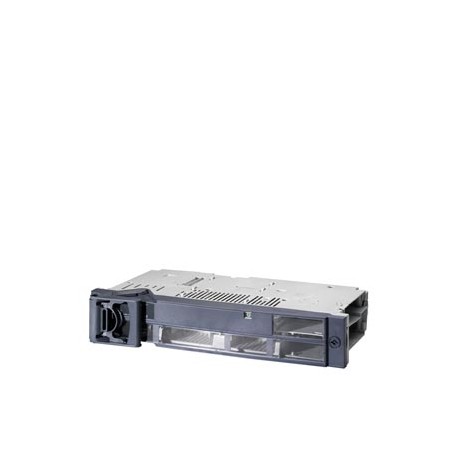

3NJ6214-1AA00-0AA0 SIEMENS Switch disconnector with fuses In-line design, pluggable NH1 250 A, 4-pole Standa..
$0.00USD
4885 in stock
Key Specifications
:Value
EAN:4011209760837
UPC:Not available
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209760837 |
| UPC | Not available |
| ETIM | 4 |
| eClass | 6 |
| Group Code | P360 |
| Price Group | 14M |
| Metal Factor | LAP----- |
| Product Group | 5862 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Not available |
| Net Weight (kg) | 9,320 Kg |
| Model (EF000010) | - |
| Country of origin | Bulgaria |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Packaging Dimension | 385,00 x 600,00 x 165,00 |
| Product Description | Switch disconnector with fuses In-line design, pluggable NH1 250 A, 4-pole Standard switching capacity S manual operation without auxiliary switch without current transformer without ammeter |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | ECCN : N / AL : N |
| Number of poles (EF001391) | 4 |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Release indication (EF011943) | - |
| Double interrupting (EF007103) | true |
| Product Dimensions (W x L x H) | Not available |
| Article Number (Market Facing Number) | 3NJ6214-1AA00-0AA0 |
| Rated permanent current Iu (EF001389) | 250.0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Construction size fuse insert (EF001452) | NH1 |
| Max. rated operation voltage Ue AC (EF007355) | 690 |
| Distance between rail centre, 40 mm (EF001431) | false |
| Distance between rail centre, 50 mm (EF001430) | false |
| Distance between rail centre, 60 mm (EF001432) | false |
| Distance between rail centre, 100 mm (EF006048) | false |
| Distance between rail centre, 185 mm (EF006049) | true |
| Conditioned rated short-circuit current Iq (EF001444) | 55.0 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Compliance with the substance restrictions according to RoHS directive | Since: 04.09.2008 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
