3NJ4103-3CF02

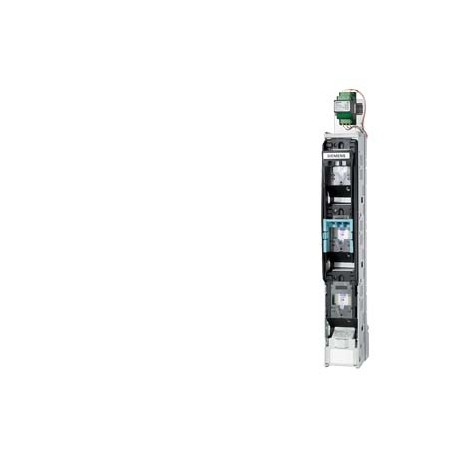

3NJ4103-3CF02 SIEMENS In-line fuse switch disconnector 3-pole selectable, Sz. 00 I 160 A, U 690 V Flat termi..
$0.00USD
3579 in stock
Key Specifications
:
EAN:4011209777934
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209777934 |
| UPC | Not available |
| ETIM | 5 |
| depth | 121 mm |
| width | 49.8 mm |
| eClass | 6 |
| height | 549 mm |
| ● 40 mm | No |
| ● 50 mm | No |
| ● 60 mm | No |
| Group Code | P360 |
| net weight | 1.56 kg |
| ● 100 mm | Yes |
| ● 185 mm | No |
| fuse system | LV HRC fuse |
| ● maximum | 55 °C |
| ● minimum | -25 °C |
| Confirmation | |
| Date5/9/2022 | |
| Metal Factor | -43----- |
| Product Group | 5852 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | 3-pole, Switchable |
| type of device | For busbar system 100 mm |
| Net Weight (kg) | 1,557 Kg |
| number of poles | 3 |
| ● main switch | No |
| ● rated value | 160 A |
| Model (EF000010) | Fuse switch disconnector |
| fastening method | Flachanschluss, M 8 |
| Country of origin | Germany |
| mounting position | vertical |
| product component | |
| size of fuse link | NH000, NH00 |
| ● safety switch | No |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 175,00 x 680,00 x 60,00 |
| Product Description | In-line fuse switch disconnector 3-pole selectable, Sz. 00 I=160 A, U=690 V Flat terminal M8 with electronic fuse monitoring |
| operational current | |
| product designation | Fuse switch disconnectors |
| suitability for use | |
| ● voltage trigger | No |
| design of the product | in in-line design |
| number of poles / note | 3-pole switchable |
| number of transformers | 0 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● switch disconnector | Yes |
| General Product Approval | Declaration of Conformity |
| ● EMERGENCY OFF switch | No |
| ● undervoltage release | No |
| suitability for operation | System protection |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| Standard lead time ex-works | 30 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 35 °C / rated value | 160 A |
| ● at 40 °C / rated value | 152 A |
| ● at 45 °C / rated value | 144 A |
| ● at 50 °C / rated value | 136 A |
| ● at 55 °C / rated value | 128 A |
| ● at 60 °C / rated value | 120 A |
| ● at 65 °C / rated value | 112 A |
| ● at 70 °C / rated value | 110.5 A |
| Package size unit of measure | MM |
| Release indication (EF011943) | - |
| ● maintenance/repair switch | No |
| Double interrupting (EF007103) | false |
| busbar center-to-center spacing | 100 mm |
| design of the auxiliary release | Without |
| design of the safety monitoring | Electronic |
| insulation voltage / rated value | 800 V |
| protection class IP / on the front | IP30 |
| Article Number (Market Facing Number) | 3NJ4103-3CF02 |
| Rated permanent current Iu (EF001389) | 160.0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| design of the load switch / strip form | Yes |
| operating voltage / at DC / rated value | 440 V |
| Construction size fuse insert (EF001452) | NH000, NH00 |
| Max. rated operation voltage Ue AC (EF007355) | 690 |
| ● undervoltage release with leading contact | No |
| Distance between rail centre, 40 mm (EF001431) | false |
| Distance between rail centre, 50 mm (EF001430) | false |
| Distance between rail centre, 60 mm (EF001432) | false |
| Distance between rail centre, 100 mm (EF006048) | true |
| Distance between rail centre, 185 mm (EF006049) | false |
| ● with capacitive load / at 400 V / rated value | 72 A |
| ● with capacitive load / at 500 V / rated value | 55 A |
| Region Specific PriceGroup / Headquarter Price Group | 14M / 1DL |
| Conditioned rated short-circuit current Iq (EF001444) | - |
| Type of electrical connection of main circuit (EF006819) | Rail connection |
| type of electrical connection / for main current circuit | busbar connection |
| type of switching contact / double breaking switching contact | No |
| arrangement of electrical connectors / for main current circuit | Flat terminal |
| Compliance with the substance restrictions according to RoHS directive | Since: 17.04.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 6 W |
| General Product ApprovalDeclaration of ConformityTest CertificatesotherConfirmationUK Declaration of ConformitySpecial Test CertificateMiscellaneous | General Product Approval |
Product Description
INTERR. DISCONNECTOR C / FUSES 3 MANEUVERABLE POLES, TAM 00 I = 160A, U = 690V FLAT CONNECTOR M 8 NEW DESIGN WITH ELECTRONIC FUSE SURVEILLANCE. Manufactured to order. Non-Cancelable Non-Returnable.
