3NH7360-4KK01

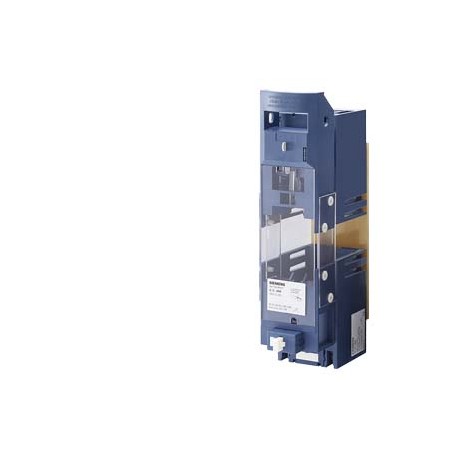

3NH7360-4KK01 SIEMENS LV HRC fuse base with microswitch 400 A 1000 V Size 2L for photovoltaic applications
$0.00USD
4635 in stock
Key Specifications
:
EAN:4001869484273
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869484273 |
| UPC | Not available |
| ETIM | 5 |
| depth | 170 mm |
| width | 83 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 326 mm |
| ● at DC | 1 000 V |
| Group Code | P310 |
| net weight | 1 781 g |
| Confirmation | |
| Date5/5/2022 | |
| Metal Factor | L-B----- |
| Product Group | 5764 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | PV Cumulative Fuses |
| supply voltage | |
| Net Weight (kg) | 1,781 Kg |
| number of poles | 1 |
| fastening method | fixed mounting |
| Country of origin | Czech Republic |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 165,00 x 365,00 x 105,00 |
| Product Description | LV HRC fuse base with microswitch 400 A 1000 V Size 2L for photovoltaic applications |
| operational current | |
| product designation | LV HRC fuse system |
| design of the product | LV HRC fuse bases with swivel mechanism |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 400 A |
| ● at DC / rated value | 25 kA |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 400 |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 1 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 35 °C / rated value | 376 A |
| ● at 40 °C / rated value | 368 A |
| ● at 45 °C / rated value | 356.16 A |
| ● at 50 °C / rated value | 344 A |
| ● at 55 °C / rated value | 332.16 A |
| ● at 60 °C / rated value | 324.16 A |
| ● at 65 °C / rated value | 308.16 A |
| ● at 70 °C / rated value | 296 A |
| Bus-mounting type (EF002573) | - |
| Construction size (EF002566) | Other |
| Package size unit of measure | MM |
| ● for main current circuit | flat connector |
| type of electrical connection | for mounting on mounting plate |
| Swivelling mechanism (EF002574) | true |
| fastening method / bus-mounting | No |
| Article Number (Market Facing Number) | 3NH7360-4KK01 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| product component / swivel-in mechanism | Yes |
| size of fuse system / according to EN 60269-1 | NH2L |
| design of the thread / of the connection screw | M10 |
| Region Specific PriceGroup / Headquarter Price Group | 12J / 1DN |
| breaking capacity maximum short-circuit current (Icu) | |
| tightening torque / with screw-type terminals / maximum | 20 N·m |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2013 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
PV FUSE-BASE SIZE 2L WITH MICROSWITCH. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
