3NH7230

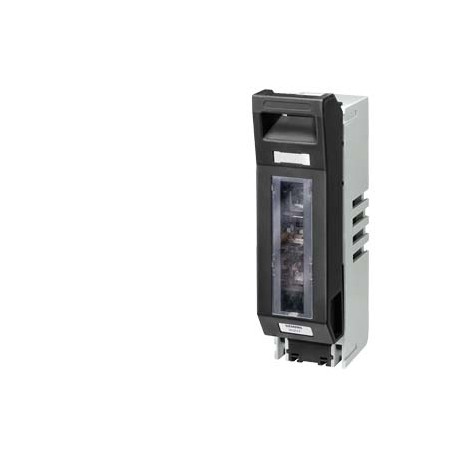

3NH7230 SIEMENS LV HRC fuse base Sz. 1, 1-pole 250 A 690 V with swivel equipment with flat terminal
$0.00USD
4677 in stock
Key Specifications
:Value
EAN:4001869183381
UPC:Not available
Depth:123.5 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869183381 |
| UPC | Not available |
| Depth | 123.5 mm |
| Notes | Sucessor:Please note: Different dimensions or Further information about local contact: wwThis product is a Spare Part, please visit the Spares & Service section for more informationIf you need assistance please contact our local Siemens office |
| Width | 68 mm |
| Height | 253 mm |
| ● at DC | 440 V |
| Group Code | P310 |
| net weight | 1 090 g |
| Price Group | 12J |
| Metal Factor | L-P----- |
| Mounting type | fixed mounting |
| Product Group | 5530 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | Not available |
| Supply voltage | |
| Net Weight (kg) | 1,090 Kg |
| number of poles | 1 |
| ● bus-mounting | No |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product is cancelled since: 31.05.2020 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 131,00 x 253,00 x 108,00 |
| Product Description | LV HRC fuse base Sz. 1, 1-pole 250 A 690 V with swivel equipment with flat terminal |
| Product designation | LV HRC fuse system |
| Design of the product | LV HRC fuse bases with swivel mechanism |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| ● at AC / rated value | 690 V |
| ● at DC / rated value | 25 kA |
| Rated current (EF000227) | 250 |
| circuit-breaker / Design | 3NH72 |
| Declaration of Conformity | other |
| Export Control Regulations | ECCN : N / AL : N |
| Number of poles (EF001391) | 1 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Bus-mounting type (EF002573) | - |
| Construction size (EF002566) | NH1 |
| Package size unit of measure | MM |
| Product Dimensions (W x L x H) | Not available |
| Swivelling mechanism (EF002574) | true |
| ● type of electrical connection | for mounting on mounting plate |
| Product component / Swivel mechanism | Yes |
| Article Number (Market Facing Number) | 3NH7230 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Operating current / at AC / rated value | 250 A |
| ● Reference code / acc. to DIN EN 81346-2 | F |
| ● reference code / acc. to DIN EN 61346-2 | F |
| Size of fuse system / acc. to DIN EN 60269-1 | NH1 |
| Design of the thread / of the connection screw | M10 |
| Maximum short-circuit current breaking capacity (Icu) | |
| Tightening torque / with screw-type terminals / maximum | 38 N·m |
| Declaration of ConformityotherEnvironmental Confirmations | Declaration of Conformity |
| ● Type of electrical connection / for main current circuit | flat connector |
| Tripping residual / rated value / derated current / at 40 Cel | 230 A |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
