3NH4032

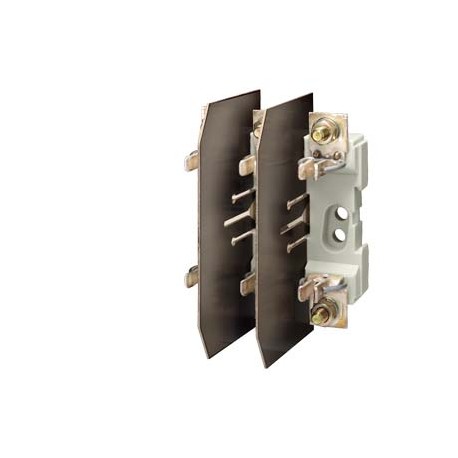

3NH4032 SIEMENS LV HRC fuse base Sz. 00, 3-pole 160 A 690 V (1000 V) Saddle-type connector, 6-70 mm2
$0.00USD
3066 in stock
Key Specifications
:Environmental Confirmations
EAN:4001869020655
UPC:754554242538
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Environmental Confirmations | |
| EAN | 4001869020655 |
| UPC | 754554242538 |
| ETIM | 5 |
| depth | 60 mm |
| width | 102 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 122 mm |
| ● at DC | 440 V |
| Group Code | P310 |
| net weight | 718 g |
| ● maximum | 70 mm² |
| ● minimum | 6 mm² |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/15/2022 | |
| Product Group | 5530 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | LV HRC Fuse Bases and Accessories |
| supply voltage | |
| Net Weight (kg) | 0,718 Kg |
| number of poles | 3 |
| fastening method | fixed mounting |
| Country of origin | Czech Republic |
| Marine / Shipping | other |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 108,00 x 145,00 x 70,00 |
| Product Description | LV HRC fuse base Sz. 00, 3-pole 160 A 690 V (1000 V) Saddle-type connector, 6-70 mm2 |
| operational current | |
| product designation | LV HRC fuse system |
| utilization category | Without |
| design of the product | LV HRC fuse base |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 690 V |
| ● at DC / rated value | 25 kA |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 160 |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 35 °C / rated value | 150.4 A |
| ● at 40 °C / rated value | 147.2 A |
| ● at 45 °C / rated value | 142.46 A |
| ● at 50 °C / rated value | 137.6 A |
| ● at 55 °C / rated value | 132.86 A |
| ● at 60 °C / rated value | 129.66 A |
| ● at 65 °C / rated value | 123.26 A |
| ● at 70 °C / rated value | 118.4 A |
| Bus-mounting type (EF002573) | - |
| Construction size (EF002566) | Other |
| Package size unit of measure | MM |
| ● for main current circuit | Saddle-type terminal |
| type of electrical connection | with saddle-type terminal |
| Swivelling mechanism (EF002574) | false |
| fastening method / bus-mounting | No |
| design of the thread / of the nut | M8 |
| Article Number (Market Facing Number) | 3NH4032 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| product component / swivel-in mechanism | No |
| size of fuse system / according to EN 60269-1 | NH00 |
| design of the thread / of the connection screw | M8 |
| Region Specific PriceGroup / Headquarter Price Group | 12J / 1BM |
| breaking capacity maximum short-circuit current (Icu) | |
| connectable conductor cross-section / on terminal strip | |
| tightening torque / with screw-type terminals / maximum | 14 N·m |
| connectable conductor cross-section / on plug-type connection | |
| connectable conductor cross-section / on saddle-type connector | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationUK Declaration of ConformityType Test Certificates/Test ReportSpecial Test CertificateMarine / ShippingotherEnvironmental ConfirmationsMiscellaneous | General Product Approval |
Product Description
NNH fuse holder, tripolar, size 00, 160A, 660V, 50Hz, with flange connection from 6 to 70mm². Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
