3NH3220

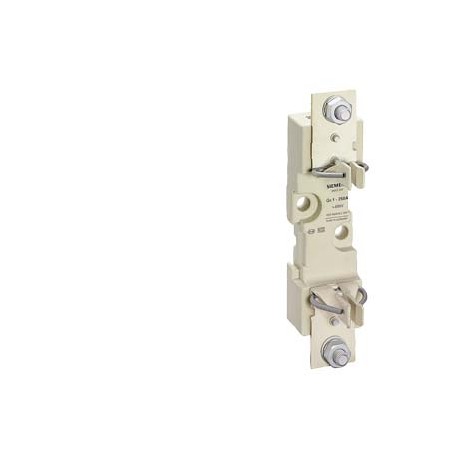

3NH3220 SIEMENS LV HRC fuse base Sz. 1, 1-pole 250 A 690 V (1000 V) Double busbar terminal
$0.00USD
4807 in stock
Key Specifications
:
EAN:4001869020532
UPC:754554153230
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869020532 |
| UPC | 754554153230 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 84 mm |
| width | 49 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 202 mm |
| ● at DC | 440 V |
| Group Code | P310 |
| net weight | 771 g |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/12/2022 | |
| Product Group | 5530 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | LV HRC Fuse Bases and Accessories |
| supply voltage | |
| Net Weight (kg) | 0,771 Kg |
| number of poles | 1 |
| fastening method | fixed mounting |
| Country of origin | Czech Republic |
| Test Certificates | Marine / Shipping |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 171,00 x 210,00 x 96,00 |
| Product Description | LV HRC fuse base Sz. 1, 1-pole 250 A 690 V (1000 V) Double busbar terminal |
| operational current | |
| product designation | LV HRC fuse system |
| utilization category | Without |
| design of the product | LV HRC fuse base |
| Minimum order quantity | 3 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 690 V |
| ● at DC / rated value | 25 kA |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 250 |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 1 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 35 °C / rated value | 235 A |
| ● at 40 °C / rated value | 230 A |
| ● at 45 °C / rated value | 222.6 A |
| ● at 50 °C / rated value | 215 A |
| ● at 55 °C / rated value | 207.6 A |
| ● at 60 °C / rated value | 202.6 A |
| ● at 65 °C / rated value | 192.6 A |
| ● at 70 °C / rated value | 185 A |
| Bus-mounting type (EF002573) | - |
| Construction size (EF002566) | NH1 |
| Package size unit of measure | MM |
| ● for main current circuit | flat connector |
| type of electrical connection | with twin bar connection |
| Swivelling mechanism (EF002574) | false |
| fastening method / bus-mounting | No |
| Type Test Certificates/Test Report | |
| Article Number (Market Facing Number) | 3NH3220 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| product component / swivel-in mechanism | No |
| size of fuse system / according to EN 60269-1 | NH1 |
| design of the thread / of the connection screw | M10 |
| Region Specific PriceGroup / Headquarter Price Group | 12J / 1BM |
| breaking capacity maximum short-circuit current (Icu) | |
| tightening torque / with screw-type terminals / maximum | 38 N·m |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationUK Declaration of ConformitySpecial Test CertificateTest CertificatesMarine / ShippingotherType Test Certificates/Test ReportEnvironmental ConfirmationsMiscellaneousMiscellaneous | General Product Approval |
Product Description
NH fuse base, unipolar, size 1, 250A, 660V, 50Hz, with connection to double profile ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 3 Units ** ). Cancelations and returns limit
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
