3NE7648-1U

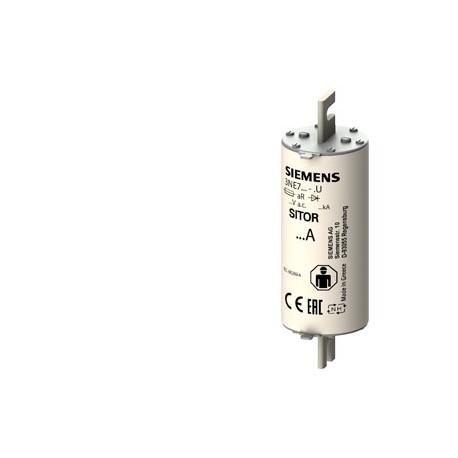

3NE7648-1U SIEMENS SITOR fuse link, with slotted blade contacts, NH3, In: 525 A, aR, Un AC: 2000 V, Un DC: 4..
$0.00USD
4485 in stock
Key Specifications
:
EAN:4001869521916
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869521916 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| ● at DC | 440 V |
| Group Code | P310 |
| net weight | 2 151 g |
| ● maximum | 50 °C |
| ● minimum | -20 °C |
| Confirmation | |
| Date5/8/2022 | |
| Metal Factor | LHP----- |
| Miscellaneous | |
| Product Group | 5540 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85361090 |
| Product family | LV HRC Design |
| power loss [W] | 210 W |
| supply voltage | |
| Net Weight (kg) | 2,151 Kg |
| Country of origin | Greece |
| mounting position | Any, preferably vertical |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 270,00 x 200,00 x 105,00 |
| Product Description | SITOR fuse link, with slotted blade contacts, NH3, In: 525 A, aR, Un AC: 2000 V, Un DC: 440 V, front indicator |
| operational current | |
| product description | Not non-interchangeable |
| product designation | SITOR fuse link |
| design of the product | With slotted blade contacts |
| Minimum order quantity | 2 |
| environmental category | -20 to +50 at 95% relative humidity |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | - |
| design of the fuse link | SITOR, LV HRC design |
| ● at AC / rated value | 2 000 V |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 525 |
| Rated voltage (EF000228) | 2000 |
| varying load factor (WL) | 1 |
| Export Control Regulations | AL : N / ECCN : N |
| switching capacity current | |
| Standard lead time ex-works | 30 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 30 °C / rated value | 525 A |
| ● at 40 °C / rated value | 525 A |
| ● at 45 °C / rated value | 525 A |
| ● at 50 °C / rated value | 519.75 A |
| ● at 55 °C / rated value | 514.5 A |
| ● at 60 °C / rated value | 509.25 A |
| Construction size (EF002566) | NH3 |
| Package size unit of measure | MM |
| Utilization category (EF002572) | aR (accompanied semiconductor protection) |
| design of the switching contact | With blade contacts, silver-plated |
| operating class of the fuse link | aR |
| Rated switching capacity (EF002563) | 100.0 |
| Article Number (Market Facing Number) | 3NE7648-1U |
| design of an identification indicator | front indicator |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| Type of fuse status indicator (EF004473) | Top fuse status indicator |
| type of voltage / of the operating voltage | AC/DC |
| ● according to IEC 60947-2 / rated value | 100 kA |
| size of fuse system / according to EN 60269-1 | NH3 |
| Insulated metal gripping lugs (IMGL) (EF012538) | - |
| Region Specific PriceGroup / Headquarter Price Group | 15I / 1DM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● for rated value of the current / at AC / in hot operating state / per pole | 210 W |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationUK Declaration of ConformitySpecial Test CertificateotherMiscellaneous | General Product Approval |
Product Description
SITOR FUSE FOR PROTEC. SEMICONDUCTORS 525A AR 2000V A.C. MBC=6XIN SIZE 3 BLADES CONT. M12 SLOTS ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 2 Units ** ). Cancelations and r
