3NC2340-0MK

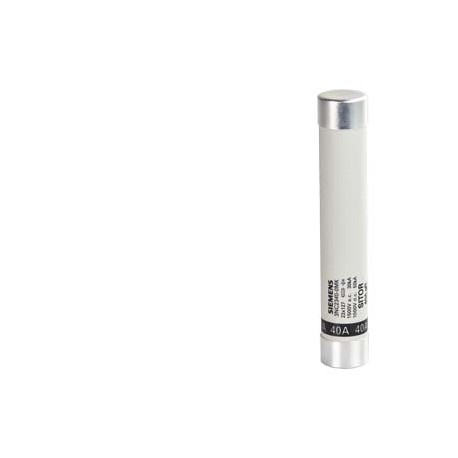

3NC2340-0MK SIEMENS SITOR cylindrical fuse link, 22x127 mm, 40 A, gR, Un AC: 1500 V, Un DC: 1000 V
$0.00USD
3393 in stock
Key Specifications
:VersionClassificationeClass627-14-20-02eClass7.127-14-20-02eClass827-14-20-02eClass927-14-20-02eClass9.127-14-20-02ETIM5EC002704ETIM6EC002704ETIM7EC002704ETIM8EC002704UNSPSC1439-12-16-06UNSPSC1539-12-16-26
EAN:4001869497402
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-20-02eClass7.127-14-20-02eClass827-14-20-02eClass927-14-20-02eClass9.127-14-20-02ETIM5EC002704ETIM6EC002704ETIM7EC002704ETIM8EC002704UNSPSC1439-12-16-06UNSPSC1539-12-16-26 | |
| EAN | 4001869497402 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | LHB----- |
| Product Group | 5540 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85361050 |
| Product family | Cylindrical Fuse Design |
| Net Weight (kg) | 0,104 Kg |
| Size (EF000088) | Other |
| Country of origin | Czech Republic |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 130,00 x 115,00 x 25,00 |
| Product Description | SITOR cylindrical fuse link, 22x127 mm, 40 A, gR, Un AC: 1500 V, Un DC: 1000 V |
| Minimum order quantity | 5 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| With striker (EF008175) | false |
| Rated voltage (EF003977) | ['10', '1500'] |
| Rated voltage (EF007681) | 1500 |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Nominal current (EF000001) | 40 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Breaking capacity (EF005617) | - |
| Package size unit of measure | MM |
| Utilization category (EF002572) | gR (general purpose semiconductor protection) |
| Release characteristic (EF000889) | - |
| Rated operating frequency (EF007370) | ['62', '45'] |
| Article Number (Market Facing Number) | 3NC2340-0MK |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 15I / 1DM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2013 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
PROTEC FUSE. SEMICOND. SITOR 22X127 40A T. 1500V AC/1000V DC ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 5 Units ** ). Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
