3NC2291

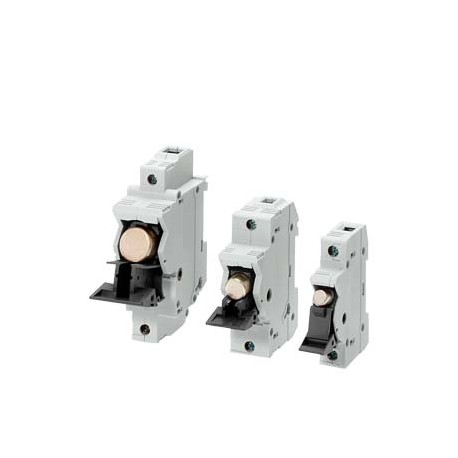

3NC2291 SIEMENS SITOR fuse-disconnector 22x 58, Up to 100 A, 690 V AC
$0.00USD
4633 in stock
Key Specifications
:Confirmation
EAN:4011209570368
UPC:887621098612
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209570368 |
| UPC | 887621098612 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 118 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 70 mm |
| Group Code | P310 |
| net weight | 214 g |
| ● maximum | 50 mm² |
| ● minimum | 4 mm² |
| Metal Factor | LHP----- |
| Date5/17/2022 | |
| Product Group | 5540 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | Cylindrical Fuse Design |
| Net Weight (kg) | 0,214 Kg |
| number of poles | 1 |
| ● main switch | No |
| fastening method | |
| Country of origin | Germany |
| operating voltage | |
| size of fuse link | 22x58 |
| ● rail mounting | No |
| ● safety switch | Yes |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SITOR |
| ● floor mounting | No |
| Packaging Dimension | 75,00 x 120,00 x 35,00 |
| Product Description | SITOR fuse-disconnector 22x 58, Up to 100 A, 690 V AC |
| product designation | SITOR fuse switch disconnector |
| suitability for use | |
| utilization category | AC20B/690 V |
| size of the fuse link | 22 x 58 mm |
| Cable entry (EF000537) | - |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● switch disconnector | Yes |
| ● EMERGENCY OFF switch | No |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 1 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| UK Declaration of Conformity | |
| Suitable for fuses (EF006692) | Other |
| Motor drive optional (EF007386) | false |
| With error protection (EF007384) | false |
| Motor drive integrated (EF006697) | false |
| Version as main switch (EF006981) | false |
| operational current / rated value | 100 A |
| ● at AC / rated value / maximum | 690 V |
| ● at DC / rated value / maximum | 800 V |
| Type of control element (EF006976) | Other |
| product function / fuse monitoring | No |
| protection class IP / on the front | IP20 |
| Equipped with connectors (EF011696) | - |
| Position control element (EF009410) | Front side |
| Version as safety switch (EF006985) | true |
| Article Number (Market Facing Number) | 3NC2291 |
| Rated permanent current Iu (EF001389) | 100.0 |
| Suitable for floor mounting (EF007243) | false |
| Suitable for front mounting (EF007246) | true |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Suitable for busbar mounting (EF007259) | false |
| connectable conductor cross-section / solid | |
| Max. rated operation voltage Ue AC (EF007355) | 690 |
| Degree of protection (IP), front side (EF003118) | Other |
| Rated operation power at AC-23, 400 V (EF007027) | - |
| Rated short-time withstand current lcw (EF007050) | - |
| Version as emergency stop installation (EF006959) | false |
| Region Specific PriceGroup / Headquarter Price Group | 15I / 1DM |
| Conditioned rated short-circuit current Iq (EF001444) | 100.0 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| type of electrical connection / for main current circuit | screw-type terminals |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalConfirmationMiscellaneousDeclaration of ConformityotherUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
DISCONNECTOR-FUSE SITOR 22X58, UP TO 100A, 690V AC. Manufactured to order. Non-Cancelable Non-Returnable.
