In Stock Hot Product
3NC2250-5

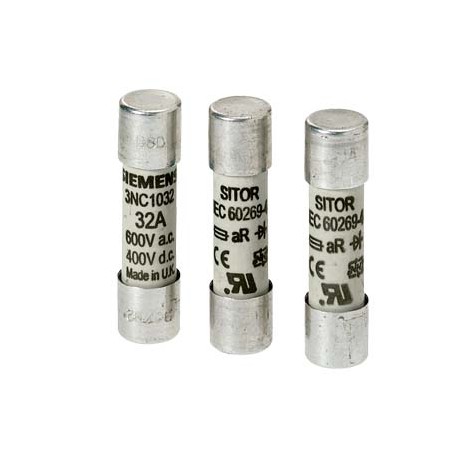

3NC2250-5 SIEMENS SITOR cylindrical fuse link, 22x58 mm, 50 A, aR, Un AC: 690 V, Un DC: 500 V, DC according ..
$0.00USD
3340 in stock
Key Specifications
:VersionClassificationeClass627-14-20-02eClass7.127-14-20-02eClass827-14-20-02eClass927-14-20-02eClass9.127-14-20-02ETIM5EC002704ETIM6EC002704ETIM7EC002704ETIM8EC002704UNSPSC1539-12-16-26
EAN:4011209629103
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-20-02eClass7.127-14-20-02eClass827-14-20-02eClass927-14-20-02eClass9.127-14-20-02ETIM5EC002704ETIM6EC002704ETIM7EC002704ETIM8EC002704UNSPSC1539-12-16-26 | |
| EAN | 4011209629103 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | LHP----- |
| Product Group | 5540 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85361050 |
| Product family | Cylindrical Fuse Design |
| Net Weight (kg) | 0,064 Kg |
| Size (EF000088) | 22x58 mm |
| Country of origin | India |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Packaging Dimension | 13,00 x 24,00 x 5,00 |
| Product Description | SITOR cylindrical fuse link, 22x58 mm, 50 A, aR, Un AC: 690 V, Un DC: 500 V, DC according to UL, Striker indicator |
| Minimum order quantity | 5 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| With striker (EF008175) | true |
| Rated voltage (EF003977) | ['10', '690'] |
| Rated voltage (EF007681) | 690 |
| Export Control Regulations | AL : N / ECCN : N |
| Nominal current (EF000001) | 50 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Breaking capacity (EF005617) | - |
| Package size unit of measure | MM |
| Utilization category (EF002572) | aR (accompanied semiconductor protection) |
| Release characteristic (EF000889) | - |
| Rated operating frequency (EF007370) | ['62', '45'] |
| Article Number (Market Facing Number) | 3NC2250-5 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 15I / 1DM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
CART. CILIND FUSE. SITOR AR WITH FIRING PIN 22X58 50A, 690V ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Request Multiple 5 Units ** ). Cancelations and returns limited. Consult conditions
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
