3NC1850-0MK

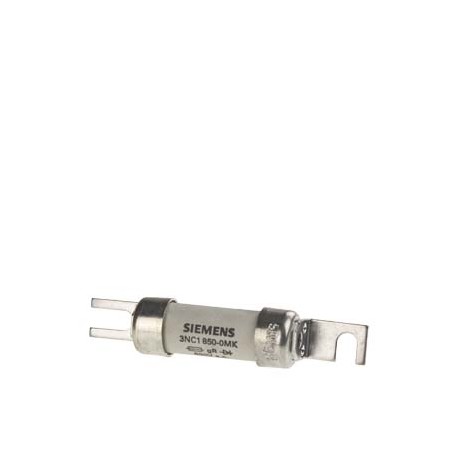

3NC1850-0MK SIEMENS SITOR fuse link, with Bolt-on links, In: 50 A, gR, Un AC: 690 V, Un DC: 440 V, without i..
$0.00USD
3415 in stock
Key Specifications
:
EAN:4001869497228
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869497228 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| ● at DC | 440 V |
| Group Code | P310 |
| net weight | 43 g |
| ● maximum | 50 °C |
| ● minimum | -20 °C |
| Confirmation | |
| Date5/6/2022 | |
| Metal Factor | LHB----- |
| Miscellaneous | |
| Product Group | 5540 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85361050 |
| Product family | LV HRC Design |
| supply voltage | |
| Net Weight (kg) | 0,043 Kg |
| Size (EF000088) | - |
| Country of origin | Greece |
| mounting position | Any, preferably vertical |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 88,00 x 57,00 x 22,00 |
| Product Description | SITOR fuse link, with Bolt-on links, In: 50 A, gR, Un AC: 690 V, Un DC: 440 V, without indicator |
| operational current | |
| product description | Not non-interchangeable |
| product designation | SITOR fuse link |
| design of the product | With bolt-on links |
| Minimum order quantity | 3 |
| environmental category | -20 to +50 at 95% relative humidity |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | - |
| With striker (EF008175) | - |
| design of the fuse link | SITOR, BS design |
| ● at AC / rated value | 690 V |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF003977) | - |
| Rated voltage (EF007681) | - |
| Export Control Regulations | AL : N / ECCN : N |
| Nominal current (EF000001) | - |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 30 °C / rated value | 50 A |
| ● at 40 °C / rated value | 50 A |
| ● at 45 °C / rated value | 50 A |
| ● at 50 °C / rated value | 49.5 A |
| Breaking capacity (EF005617) | - |
| Package size unit of measure | MM |
| Utilization category (EF002572) | - |
| design of the switching contact | With bolt-on links, silver-plated |
| operating class of the fuse link | gR |
| Release characteristic (EF000889) | - |
| Rated operating frequency (EF007370) | - |
| Article Number (Market Facing Number) | 3NC1850-0MK |
| design of an identification indicator | Without indicator |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| type of voltage / of the operating voltage | AC/DC |
| size of fuse system / according to EN 60269-1 | Other (BS) |
| Region Specific PriceGroup / Headquarter Price Group | 15I / 1DM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2013 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousUK Declaration of ConformityotherMiscellaneous | General Product Approval |
Product Description
PROTEC FUSE. SEMICOND. SITOR 50A T. 690V AC/440V DC ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 3 Units ** ). Manufactured to order. Non-Cancelable Non-Returnable.
