In Stock Hot Product
3NC1410

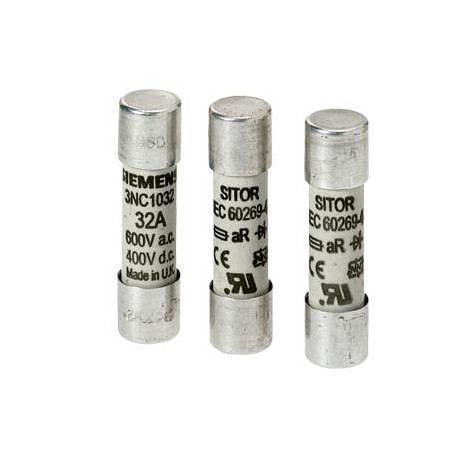

3NC1410 SIEMENS SITOR cylindrical fuse link, 14x51 mm, 10 A, aR, Un AC: 690 V, Un DC: 700 V, DC according to..
$0.00USD
4321 in stock
Key Specifications
:VersionClassificationeClass627-14-20-02eClass7.127-14-20-02eClass827-14-20-02eClass927-14-20-02eClass9.127-14-20-02ETIM5EC002704ETIM6EC002704ETIM7EC002704ETIM8EC002704IDEA44982UNSPSC1539-12-16-28
EAN:4011209570016
UPC:662643167580
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-20-02eClass7.127-14-20-02eClass827-14-20-02eClass927-14-20-02eClass9.127-14-20-02ETIM5EC002704ETIM6EC002704ETIM7EC002704ETIM8EC002704IDEA44982UNSPSC1539-12-16-28 | |
| EAN | 4011209570016 |
| UPC | 662643167580 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | LHP----- |
| Product Group | 5540 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85361010 |
| Product family | Cylindrical Fuse Design |
| Net Weight (kg) | 0,021 Kg |
| Size (EF000088) | 14x51 mm |
| Country of origin | India |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Packaging Dimension | 15,00 x 50,00 x 15,00 |
| Product Description | SITOR cylindrical fuse link, 14x51 mm, 10 A, aR, Un AC: 690 V, Un DC: 700 V, DC according to UL |
| Minimum order quantity | 10 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| With striker (EF008175) | false |
| Rated voltage (EF003977) | ['10', '690'] |
| Rated voltage (EF007681) | 690 |
| Export Control Regulations | AL : N / ECCN : N |
| Nominal current (EF000001) | 10 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Breaking capacity (EF005617) | - |
| Package size unit of measure | MM |
| Utilization category (EF002572) | aR (accompanied semiconductor protection) |
| Release characteristic (EF000889) | - |
| Rated operating frequency (EF007370) | ['62', '45'] |
| Article Number (Market Facing Number) | 3NC1410 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 15I / 1DM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
CART. CILIND FUSE. SITOR AR 10A, 660V AC/700V DC ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 10 Units ** ). Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
