3NC1006

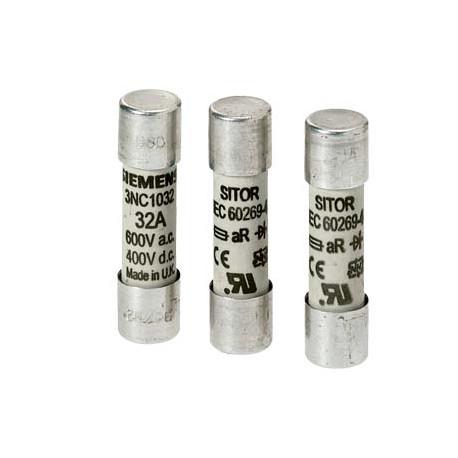

3NC1006 SIEMENS SITOR cylindrical fuse link, 10 x 38 mm, 6 A, aR, Un AC: 600 V, Un DC: 700 V, DC according t..
$0.00USD
3676 in stock
Key Specifications
:Confirmation
EAN:4011209569874
UPC:662643857573
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209569874 |
| UPC | 662643857573 |
| ETIM | 5 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 9 g |
| Metal Factor | LHP----- |
| Date5/12/2022 | |
| Product Group | 5540 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85361010 |
| Product family | Cylindrical Fuse Design |
| Net Weight (kg) | 0,009 Kg |
| Size (EF000088) | 10x38 mm |
| Country of origin | India |
| mounting position | Any, preferably vertical |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 10,00 x 35,00 x 10,00 |
| Product Description | SITOR cylindrical fuse link, 10 x 38 mm, 6 A, aR, Un AC: 600 V, Un DC: 700 V, DC according to UL |
| product designation | SITOR cylindrical fuse link |
| design of the product | DC acc. to UL |
| size of the fuse link | 10x38 mm |
| Minimum order quantity | 10 |
| supply voltage / at DC | 700 V |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| With striker (EF008175) | false |
| Rated voltage (EF003977) | ['10', '600'] |
| Rated voltage (EF007681) | 600 |
| Declaration of Conformity | other |
| Export Control Regulations | AL : N / ECCN : N |
| Nominal current (EF000001) | 6 |
| Standard lead time ex-works | 25 Day/Days |
| Surcharge for Raw Materials | None |
| product component / striker | No |
| Breaking capacity (EF005617) | - |
| Package size unit of measure | MM |
| UK Declaration of Conformity | |
| Utilization category (EF002572) | aR (accompanied semiconductor protection) |
| operating class of the fuse link | aR |
| Release characteristic (EF000889) | - |
| operational current / rated value | 6 A |
| Rated operating frequency (EF007370) | ['62', '45'] |
| Article Number (Market Facing Number) | 3NC1006 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| operating voltage / at AC / rated value | 600 V |
| operational current / at AC / rated value | 6 A |
| type of voltage / of the operating voltage | AC |
| Region Specific PriceGroup / Headquarter Price Group | 15I / 1DM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.5 W |
| General Product ApprovalConfirmationMiscellaneousDeclaration of ConformityotherUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
CART. CILIND FUSE. SITOR AR 6A, 600V AC/400V DC ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 10 Units ** ). Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
