3NB3362-1KK27

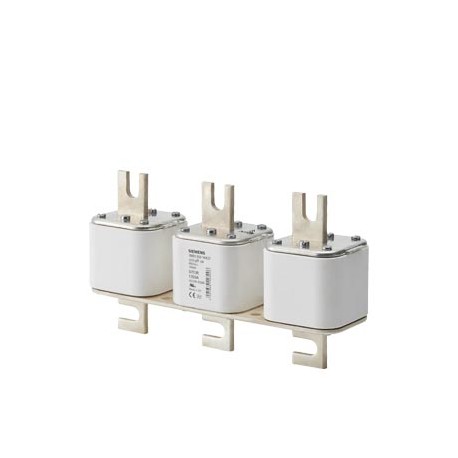

3NB3362-1KK27 SIEMENS SITOR fuse link, with slotted blade contacts, 3 x NH3, In: 1900 A, gR, Un AC: 690 V, f..
$0.00USD
3778 in stock
Key Specifications
:
EAN:4001869483931
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869483931 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 3 460 g |
| ● maximum | 196 W |
| ● minimum | -20 °C |
| Confirmation | |
| Metal Factor | LHP----- |
| Date5/11/2022 | |
| Product Group | 5540 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85361090 |
| Product family | LV HRC Design |
| power loss [W] | 196 W |
| supply voltage | |
| Net Weight (kg) | 3,460 Kg |
| Country of origin | Greece |
| mounting position | Any, preferably vertical |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 252,00 x 143,00 x 72,00 |
| Product Description | SITOR fuse link, with slotted blade contacts, 3 x NH3, In: 1900 A, gR, Un AC: 690 V, front indicator |
| operational current | |
| product description | Not non-interchangeable |
| product designation | SITOR fuse link |
| design of the product | With slotted blade contacts |
| environmental category | -20 to +50 at 95% relative humidity |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | - |
| design of the fuse link | Parallel SITOR semiconductor fuse, LV HRC design |
| ● at AC / rated value | 690 V |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 1900 |
| Rated voltage (EF000228) | 690 |
| Export Control Regulations | AL : N / ECCN : N |
| switching capacity current | |
| Standard lead time ex-works | 70 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 30 °C / rated value | 1 900 A |
| ● at 40 °C / rated value | 1 900 A |
| ● at 45 °C / rated value | 1 900 A |
| ● at 50 °C / rated value | 1 881 A |
| ● at 55 °C / rated value | 1 862 A |
| ● at 60 °C / rated value | 1 843 A |
| Construction size (EF002566) | NH3 |
| Package size unit of measure | MM |
| Utilization category (EF002572) | gR (general purpose semiconductor protection) |
| design of the switching contact | With bolt-on links, silver-plated |
| operating class of the fuse link | gR |
| Rated switching capacity (EF002563) | 100.0 |
| Article Number (Market Facing Number) | 3NB3362-1KK27 |
| design of an identification indicator | front indicator |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| Type of fuse status indicator (EF004473) | Top fuse status indicator |
| type of voltage / of the operating voltage | AC |
| ● according to IEC 60947-2 / rated value | 100 kA |
| size of fuse system / according to EN 60269-1 | 3 x NH3 |
| Insulated metal gripping lugs (IMGL) (EF012538) | - |
| Region Specific PriceGroup / Headquarter Price Group | 15I / 1DM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2013 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● for rated value of the current / at AC / in hot operating state / per pole | 196 W |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
SITOR FUSE SIZE 3 3X PARALLEL 1900A 690V AC 700V AC (UL) CLASS AR BLADES CONT. SLOTS 12. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
