3NA6124

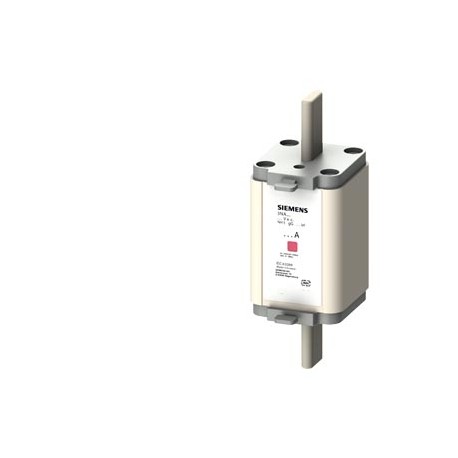

3NA6124 SIEMENS LV HRC fuse element, NH1, In: 80 A, gG, Un AC: 500 V, Un DC: 440 V, Combined indicator, Insu..
$0.00USD
4491 in stock
Key Specifications
:Confirmation
EAN:4001869071411
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869071411 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| ● at DC | 440 V |
| Group Code | P310 |
| net weight | 288 g |
| ● maximum | 40 °C |
| ● minimum | -5 °C |
| Date5/3/2022 | |
| Metal Factor | L-P----- |
| Miscellaneous | Type Test Certificates/Test Report |
| Product Group | 5530 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| mounting type | insulated grip lugs |
| Commodity Code | 85361090 |
| Product family | LV HRC Fuse Links |
| power loss [W] | 7.5 W |
| supply voltage | |
| Net Weight (kg) | 0,288 Kg |
| Country of origin | Greece |
| Test Certificates | Marine / Shipping |
| mounting position | Any, preferably vertical |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 143,00 x 93,00 x 71,00 |
| Product Description | LV HRC fuse element, NH1, In: 80 A, gG, Un AC: 500 V, Un DC: 440 V, Combined indicator, Insulated grip lugs |
| operational current | |
| product designation | LV HRC fuse link |
| protection class IP | IP20, with connected conductors |
| design of the product | With blade contacts |
| Minimum order quantity | 3 |
| environmental category | -20 to +50 at 95% relative humidity |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | - |
| design of the fuse link | LV HRC fuse link |
| ● at AC / rated value | 500 V |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 80 |
| Rated voltage (EF000228) | 500 |
| width / of the enclosure | 30 mm |
| Export Control Regulations | AL : N / ECCN : N |
| switching capacity current | |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 30 °C / rated value | 78.4 A |
| ● at 40 °C / rated value | 76 A |
| ● at 45 °C / rated value | 73.6 A |
| ● at 50 °C / rated value | 72 A |
| ● at 55 °C / rated value | 70.4 A |
| ● at 60 °C / rated value | 68.8 A |
| Construction size (EF002566) | NH1 |
| Package size unit of measure | MM |
| Utilization category (EF002572) | gL/gG (cable protection/equipment protection) |
| design of the switching contact | Non-corroding, silver-plated |
| operating class of the fuse link | gG |
| Rated switching capacity (EF002563) | 120.0 |
| Article Number (Market Facing Number) | 3NA6124 |
| design of an identification indicator | Combination alarms |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| environmental category / during storage | 90% at 20°C |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| type of voltage / of the operating voltage | AC/DC |
| ● according to IEC 60947-2 / rated value | 120 kA |
| size of fuse system / according to EN 60269-1 | NH1 |
| Insulated metal gripping lugs (IMGL) (EF012538) | - |
| ● at DC / according to IEC 60947-2 / rated value | 25 kA |
| Region Specific PriceGroup / Headquarter Price Group | 12I / 1BM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 7.5 W |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityTest CertificatesMarine / ShippingotherMiscellaneousType Test Certificates/Test ReportSpecial Test CertificateMiscellaneousMiscellaneous | General Product Approval |
Product Description
NH gL/gG fuse cartridge with voltage-free lug with central indicator tam.1, 80A, AC 500V/DC 440V ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 3 Units ** ). Cancelations and
