3LD3154-0TK53

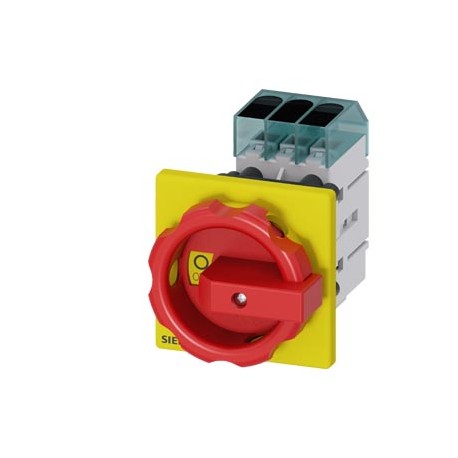

3LD3154-0TK53 SIEMENS Load disconnector 3LD3, Iu 25 A Main switch 3-pole Rated operating capacity at AC-23 A..
$0.00USD
4039 in stock
Key Specifications
:Confirmation
EAN:4001869550749
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869550749 |
| UPC | Not available |
| ETIM | 5 |
| depth | 114 mm |
| width | 36 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 60 mm |
| ● solid | 1x (2.5 to 16 mm²) |
| Group Code | P360 |
| net weight | 200 g |
| ● maximum | 6 |
| ● minimum | 14 |
| Date5/7/2022 | |
| Metal Factor | None |
| ● stranded | 1x (2.5 to 16 mm²) |
| Miscellaneous | |
| Product Group | 5887 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Basic Devices |
| power loss [W] | |
| type of device | fixed mounting |
| type of switch | front mounted |
| Net Weight (kg) | 0,238 Kg |
| number of poles | 3 |
| operating power | |
| product feature | |
| ● main switch | Yes |
| ● motor drive | No |
| design of handle | rotary operating mechanism, red/yellow |
| fastening method | Built-in unit fixed-mounted version |
| Country of origin | Germany |
| ● rail mounting | No |
| ● safety switch | Yes |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 79,00 x 85,00 x 110,00 |
| Product Description | Load disconnector 3LD3, Iu 25 A Main switch 3-pole Rated operating capacity at AC-23 A at 400V 9.0kW Front plate mounting Basic switch with Central hole mounting 22.5mm Toggle drive red / yellow 66x66 mm |
| operational current | |
| product designation | 3LD Switch disconnector |
| protection class IP | IP65 |
| suitability for use | |
| ● voltage trigger | No |
| design of the product | EMERGENCY-STOP switch |
| number of poles / note | 3 |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | |
| special product feature | Can be locked in zero position |
| ● at AC / rated value | 25 A |
| ● switch disconnector | Yes |
| General Product Approval | Declaration of Conformity |
| Interlockable (EF006281) | true |
| ● EMERGENCY OFF switch | Yes |
| ● 4-hole front mounting | No |
| ● at AC-23 A / at 690 V | 6 000 |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| ● for auxiliary contacts | Box terminals |
| Standard lead time ex-works | 80 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 40 °C / rated value | 25 A |
| ● at 45 °C / rated value | 25 A |
| ● at 50 °C / rated value | 25 A |
| ● at 55 °C / rated value | 25 A |
| ● per conductor / typical | 1 W |
| Package size unit of measure | MM |
| product extension / optional | |
| ● for main current circuit | box terminal |
| Number of switches (EF005586) | - |
| operating frequency / maximum | 50 1/h |
| type of electrical connection | |
| ● maintenance/repair switch | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| type of fuse / according to UL | RK5 |
| Motor drive optional (EF007386) | false |
| design of the actuating element | Short rotary knob |
| color / of the actuating element | red |
| degree of protection NEMA rating | 1, 3R, 4X, 12 |
| insulation voltage / rated value | 690 V |
| Colour control element (EF007167) | Red |
| Motor drive integrated (EF006697) | false |
| Version as main switch (EF006981) | true |
| number of bracket locks / maximum | 3 |
| operational current / rated value | 25 A |
| Rated operating voltage (EF001435) | - |
| Type of control element (EF006976) | Short thumb-grip |
| protection class IP / on the front | IP65 |
| Switching power at 400 V (EF009166) | - |
| Version as safety switch (EF006985) | true |
| Voltage release optional (EF007491) | false |
| ● can be locked into OFF position | Yes |
| ● at AC-3 / at 240 V / rated value | 4 kW |
| ● at AC-3 / at 400 V / rated value | 8 kW |
| ● at AC-3 / at 690 V / rated value | 7.5 kW |
| Article Number (Market Facing Number) | 3LD3154-0TK53 |
| Rated permanent current Iu (EF001389) | 25.0 |
| ● at AC-21 / at 690 V / rated value | 25 A |
| Degree of protection (NEMA) (EF011959) | - |
| Suitable for floor mounting (EF007243) | FALSE |
| Version as reversing switch (EF009408) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge voltage resistance / rated value | 6 kV |
| electrical endurance (switching cycles) | |
| ● at 440 V / by gG fuse / rated value | 10 kA |
| ● at 690 V / by gG fuse / rated value | 6 kA |
| ● at AC-21 A / at 240 V / rated value | 25 A |
| ● at AC-21 A / at 440 V / rated value | 25 A |
| ● at AC-23 A / at 240 V / rated value | 4 kW |
| ● at AC-23 A / at 400 V / rated value | 20 A |
| ● at AC-23 A / at 440 V / rated value | 9 kW |
| ● at AC-23 A / at 690 V / rated value | 9 kW |
| let-through current / with closed switch | |
| ● front mounting with central attachment | Yes |
| type of the driving mechanism / motor drive | No |
| Max. rated operation voltage Ue AC (EF007355) | 690 |
| Suitable for front mounting 4-hole (EF007247) | false |
| Suitable for front mounting centre (EF007248) | true |
| Suitable for intermediate mounting (EF007264) | false |
| ambient temperature / during storage / minimum | -25 °C |
| number of CO contacts / for auxiliary contacts | 0 |
| number of NC contacts / for auxiliary contacts | 0 |
| number of NO contacts / for auxiliary contacts | 0 |
| ● finely stranded / with core end processing | 1x (2.5...16 mm²) |
| Rated operation power at AC-3, 400 V (EF001364) | 7.5 |
| hasp thickness / of the bracket locks / maximum | 8 mm |
| hasp thickness / of the bracket locks / minimum | 4 mm |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Rated operation power at AC-23, 400 V (EF007027) | - |
| Rated short-time withstand current lcw (EF007050) | 0.5 |
| Version as emergency stop installation (EF006959) | true |
| Version as maintenance-/service switch (EF006986) | true |
| Rated permanent current at AC-21, 400 V (EF009165) | 25 |
| Rated permanent current at AC-23, 400 V (EF011777) | - |
| Region Specific PriceGroup / Headquarter Price Group | 12R / 1CL |
| mechanical service life (switching cycles) / typical | 100 000 |
| operational current / of upstream fuse / rated value | 25 A |
| Conditioned rated short-circuit current Iq (EF001444) | - |
| Suitable for distribution board installation (EF007262) | false |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| ● at 440 V / for combination switch + gG fuse / maximum | 3.5 kA |
| insulation voltage / of the auxiliary switch / rated value | 500 V |
| continuous current / of the auxiliary contact / rated value | 10 A |
| operating voltage / of auxiliary contacts / at AC / maximum | 500 V |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| ● for short-circuit protection of the main circuit / required | fuse gL/gG: 25 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| display version / for switch position indicator manual operation | 1 ON - 0 OFF |
| AWG number / as coded connectable conductor cross section / solid | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| conditional short-circuit current / with line-side fuse protection | |
| type of connectable conductor cross-sections / for copper conductor | |
| ● for short-circuit protection of the auxiliary switch / required | fuse gL/gG: 10 A |
| continuous current / of upstream fuse / according to UL / rated value | 50 A |
| type of connectable conductor cross-sections / for auxiliary contacts | |
| ● at 690 V / for combination switch + gG fuse / maximum permissible | 4 kA |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| operational current / at AC / according to UL 508/UL 60947-4-1 / rated value | 25 A |
| ● for rated value of the current / at AC / in hot operating state / per pole | 1.1 W |
| number of connectable CO contacts / for auxiliary contacts / attachable / maximum | 0 |
| number of connectable NC contacts / for auxiliary contacts / attachable / maximum | 2 |
| number of connectable NO contacts / for auxiliary contacts / attachable / maximum | 4 |
| short-time withstand current (SCCR) / at 600 V / according to UL 508/UL 60947-4-1 | 5 kA |
| active power [hp] / at AC / at 480 V / according to UL 508/UL 60947-4-1 / rated value | 10 |
| active power [hp] / at AC / at 600 V / according to UL 508/UL 60947-4-1 / rated value | 15 |
| I2t value / with closed switch / at 690 V / for combination switch + gG fuse / maximum | 4 kA2.s |
| operating voltage / at AC / at 50/60 Hz / according to UL 508/UL 60947-4-1 / rated value | 600 V |
| let-through I2t value / with closed switch / at 440 V / for combination switch + gG fuse / maximum | 4 kA2.s |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityotherMiscellaneous | General Product Approval |
