3LD2748-0TK53

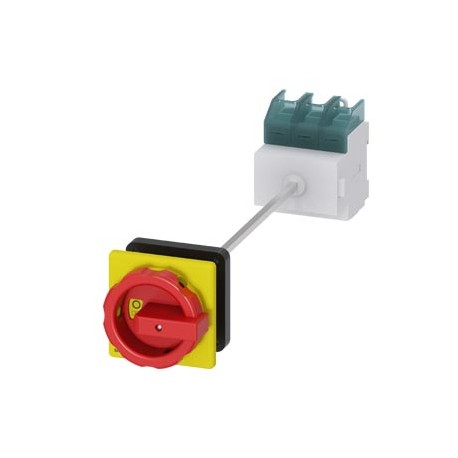

3LD2748-0TK53 SIEMENS SENTRON, Switch disconnector 3LD, emergency switching-off switch, 3- pole, Iu: 100 A, ..
$0.00USD
4948 in stock
Key Specifications
:Not available
EAN:4011209559196
UPC:Not available
Group Code:P360
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Not available | |
| EAN | 4011209559196 |
| UPC | Not available |
| Group Code | P360 |
| Metal Factor | LAO----- |
| Product Group | 5887 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Not available |
| Net Weight (kg) | 0,677 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Packaging Dimension | 140,00 x 475,00 x 110,00 |
| Product Description | SENTRON, Switch disconnector 3LD, emergency switching-off switch, 3- pole, Iu: 100 A, operating power / at AC-23 A 400 V: 37 kW, floor mounting with door coupling, rotary operating mechanism, Red / yellow, central mounting 22.5 mm of the handle, without tolerance compensation |
| Product Lifecycle (PLM) | PM300:Active Product |
| Interlockable (EF006281) | true |
| Export Control Regulations | ECCN : N / AL : N |
| Number of poles (EF001391) | 3 |
| Standard lead time ex-works | 80 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Number of switches (EF005586) | 1 |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Motor drive optional (EF007386) | false |
| Colour control element (EF007167) | Red |
| Motor drive integrated (EF006697) | false |
| Version as main switch (EF006981) | true |
| Rated operating voltage (EF001435) | - |
| Type of control element (EF006976) | Short thumb-grip |
| Switching power at 400 V (EF009166) | - |
| Version as safety switch (EF006985) | true |
| Voltage release optional (EF007491) | false |
| Article Number (Market Facing Number) | 3LD2748-0TK53 |
| Rated permanent current Iu (EF001389) | 100.0 |
| Degree of protection (NEMA) (EF011959) | - |
| Suitable for floor mounting (EF007243) | FALSE |
| Version as reversing switch (EF009408) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 690 |
| Suitable for front mounting 4-hole (EF007247) | false |
| Suitable for front mounting centre (EF007248) | true |
| Suitable for intermediate mounting (EF007264) | true |
| Rated operation power at AC-3, 400 V (EF001364) | 30.0 |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Rated operation power at AC-23, 400 V (EF007027) | 0.037 |
| Rated short-time withstand current lcw (EF007050) | 2.0 |
| Version as emergency stop installation (EF006959) | true |
| Version as maintenance-/service switch (EF006986) | true |
| Rated permanent current at AC-21, 400 V (EF009165) | 100 |
| Rated permanent current at AC-23, 400 V (EF011777) | - |
| Region Specific PriceGroup / Headquarter Price Group | 12R / 1CL |
| Conditioned rated short-circuit current Iq (EF001444) | - |
| Suitable for distribution board installation (EF007262) | true |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Given |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
INTERR.PPAL./PAR. EMERG. 3 poles IU=100, P/AC-23A WITH 400V=37KW FIXATION BASED FIXATION PROFILE/2 HOLES MYO ROTATING RED DOOR/AMA CENTRAL DRILL FIXING. Manufactured to order. Non-Cancelable Non-Retur
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
