3KL6130-1AB0

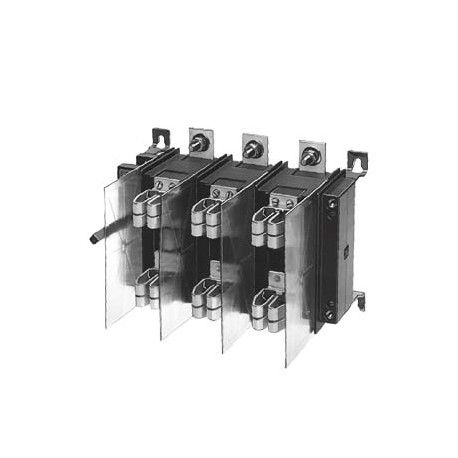

3KL6130-1AB0 SIEMENS Switch disconnector with fuse I 630 A, U 690 V, 3-pole Basic version, without drive wit..
$0.00USD
3439 in stock
Key Specifications
:Value
EAN:4011209000926
UPC:754554264370
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209000926 |
| UPC | 754554264370 |
| ETIM | 4 |
| Depth | 240 mm |
| Notes | Sucessor:3KF5363-0MF11, different dimensions, some deviating technical values. |
| Width | 345 mm |
| Height | 270 mm |
| UNSPSC | 14 |
| eClass | 6 |
| version | Basic version without handle |
| ● 400V | 50 kA |
| ● 500V | 50 kA |
| Group Code | P360 |
| Design type | For mounting and installation |
| Fuse system | LV HRC fuse |
| Price Group | 12S |
| ● maximum | 55 °C |
| ● minimum | -25 °C |
| Metal Factor | LAO----- |
| Mounting type | Surface mounting and installation |
| Product Group | 5853 |
| Product class | D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer) |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362090 |
| Product family | Not available |
| Net Weight (kg) | 17,640 Kg |
| Operating power | |
| number of poles | 3 |
| type of voltage | AC/DC |
| Type of mounting | fixed mounted |
| Country of origin | India |
| Operating voltage | |
| mounting position | any |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product phase-out since: 31.08.2018 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 370,00 x 395,00 x 305,00 |
| Product Description | Switch disconnector with fuse I=630 A, U=690 V, 3-pole Basic version, without drive with shaft stub with lyra contacts |
| Product designation | Switch disconnector |
| Protection class IP | IP00 |
| Design of the product | With 3KL fuses |
| ● AC-21 A / at 400 V | 630 A |
| ● AC-21 A / at 500 V | 630 A |
| ● AC-21 B / at 400 V | 630 A |
| ● AC-21 B / at 500 V | 630 A |
| ● AC-22 A / at 400 V | 630 A |
| ● AC-22 A / at 500 V | 630 A |
| ● AC-22 B / at 400 V | 630 A |
| ● AC-22 B / at 500 V | 630 A |
| ● stranded / maximum | 480 mm² |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| ● at DC / rated value | 440 V |
| General Product Approval | Declaration of Conformity |
| Interlockable (EF006281) | true |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| Size of disconnecting link | 3 and 2 |
| certificate of suitability | CE |
| Product feature / interlock | Yes |
| Standard lead time ex-works | 15 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Number of switches (EF005586) | - |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Product Dimensions (W x L x H) | Not available |
| Motor drive optional (EF007386) | false |
| Operating current / rated value | 630 A |
| Continuous current / rated value | 630 A |
| Insulation voltage / rated value | 1 000 V |
| Type of connection, main circuit | flat pad connection, M12 |
| Colour control element (EF007167) | - |
| Design of the operating mechanism | manual operating mechanism |
| Motor drive integrated (EF006697) | false |
| Version as main switch (EF006981) | true |
| ● mounting type / rail mounting | No |
| Rated operating voltage (EF001435) | - |
| Type of control element (EF006976) | Other |
| Switching power at 400 V (EF009166) | - |
| Version as safety switch (EF006985) | true |
| Voltage release optional (EF007491) | false |
| Ambient temperature / during storage | |
| Article Number (Market Facing Number) | 3KL6130-1AB0 |
| Rated permanent current Iu (EF001389) | 630.0 |
| ● at AC / at 50/60 Hz / rated value | 690 V |
| Ambient temperature / during operation | |
| Degree of protection (NEMA) (EF011959) | - |
| Design of the load switch / Strip form | No |
| Suitable for floor mounting (EF007243) | FALSE |
| Surge voltage resistance / rated value | 8 000 V |
| Version as reversing switch (EF009408) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Conditional rated short-circuit current | |
| ● at AC-23 A / at 500 V / rated value | 335 000 W |
| Number of poles / for main current circuit | 3 |
| Operating current / at AC-21 / rated value | 630 A |
| Type of the driving mechanism / motor drive | No |
| ● reference code / acc. to DIN EN 61346-2 | Q |
| Max. rated operation voltage Ue AC (EF007355) | 690 |
| Suitable for front mounting 4-hole (EF007247) | false |
| Suitable for front mounting centre (EF007248) | false |
| Suitable for intermediate mounting (EF007264) | false |
| Number of CO contacts / for auxiliary contacts | 0 |
| Number of NC contacts / for auxiliary contacts | 0 |
| Number of NO contacts / for auxiliary contacts | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | - |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Rated operation power at AC-23, 400 V (EF007027) | 335.0 |
| ● in utilization category / AC-21 A / at 400 V | 50 kA |
| ● in utilization category / AC-21 A / at 500 V | 50 kA |
| ● in utilization category / AC-21 B / at 400 V | 50 kA |
| ● in utilization category / AC-21 B / at 500 V | 50 kA |
| ● in utilization category / AC-22 A / at 400 V | 50 kA |
| ● in utilization category / AC-22 A / at 500 V | 50 kA |
| ● in utilization category / AC-22 B / at 400 V | 50 kA |
| ● in utilization category / AC-22 B / at 500 V | 50 kA |
| Rated short-time withstand current lcw (EF007050) | - |
| Version as emergency stop installation (EF006959) | true |
| Version as maintenance-/service switch (EF006986) | true |
| Rated permanent current at AC-21, 400 V (EF009165) | - |
| Rated permanent current at AC-23, 400 V (EF011777) | 630 |
| Rated current Ie / maximum / in utilization category | |
| Conditioned rated short-circuit current Iq (EF001444) | - |
| ● at AC-23 A / at 400 V / at 50/60 Hz / rated value | 335 000 W |
| ● at AC-23 A / at 690 V / at 50/60 Hz / rated value | 425 000 W |
| Connectable conductor cross-section / for main contacts | |
| Suitable for distribution board installation (EF007262) | false |
| Type of electrical connection of main circuit (EF006819) | Other |
| ● Mounting type / front mounting with 4-hole attachment | No |
| ● Mounting type / front mounting with central attachment | No |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Given |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherEnvironmental Confirmations | General Product Approval |
| Power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 46.7 W |
| Let-through current / I2 t / maximum permissible / in utilization category / AC-22 B / at 400 V | 5 400 000 A²·s |
