3KL5540-1GG01

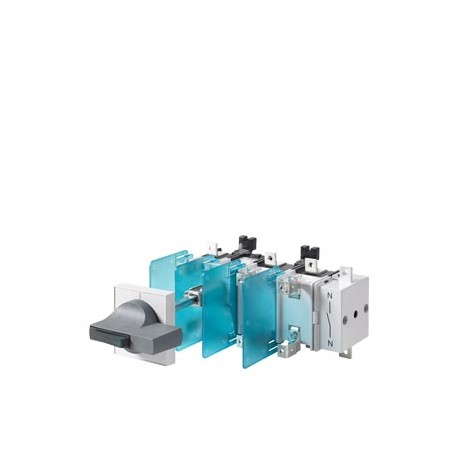

3KL5540-1GG01 SIEMENS Switch disconnector with fuse in new design Iu 250 A, Ue 690 V, 4-pole for BS88 fuse f..
$0.00USD
3512 in stock
Key Specifications
:Value
EAN:4011209739123
UPC:Not available
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209739123 |
| UPC | Not available |
| ETIM | 4 |
| Depth | 209 mm |
| Notes | Sucessor:3KF3425-0MF11, different dimensions, some deviating technical values. |
| Width | 293 mm |
| Height | 160 mm |
| UNSPSC | 14 |
| eClass | 6 |
| version | Complete version with rotary operating mechanism |
| ● 400V | 80 kA |
| ● 500V | 80 kA |
| Group Code | P360 |
| Design type | For mounting and installation |
| Fuse system | fuses according to BS 88 |
| Price Group | 12S |
| ● maximum | 55 °C |
| ● minimum | -25 °C |
| Metal Factor | LAO----- |
| Mounting type | Surface mounting and installation |
| Product Group | 5853 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362090 |
| Product family | Not available |
| Net Weight (kg) | 6,618 Kg |
| Operating power | |
| number of poles | 4 |
| type of voltage | AC/DC |
| Type of mounting | fixed mounted |
| Country of origin | Germany |
| Operating voltage | |
| mounting position | any |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product phase-out since: 31.08.2018 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 209,00 x 309,00 x 252,00 |
| Product Description | Switch disconnector with fuse in new design Iu=250 A, Ue = 690 V, 4-pole for BS88 fuse form B1/B3 4th pole selectable, without Fuse with door operating mechanism 8UC7 Handle dark blue/blue-green Basic masking frame light gray |
| Product designation | Switch disconnector |
| Protection class IP | IP00 |
| Design of the product | With 3KL fuses |
| ● AC-21 A / at 400 V | 250 A |
| ● AC-21 A / at 500 V | 250 A |
| ● AC-21 B / at 400 V | 250 A |
| ● AC-21 B / at 500 V | 250 A |
| ● AC-22 A / at 400 V | 250 A |
| ● AC-22 A / at 500 V | 250 A |
| ● AC-22 B / at 400 V | 250 A |
| ● AC-22 B / at 500 V | 250 A |
| ● stranded / maximum | 150 mm² |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| ● at DC / rated value | 440 V |
| Interlockable (EF006281) | true |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 4 |
| Size of disconnecting link | Form B1-B3 |
| certificate of suitability | CE |
| Environmental Confirmations | |
| Product feature / interlock | Yes |
| Standard lead time ex-works | 15 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Number of switches (EF005586) | - |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Product Dimensions (W x L x H) | Not available |
| Motor drive optional (EF007386) | false |
| Operating current / rated value | 250 A |
| Continuous current / rated value | 250 A |
| Insulation voltage / rated value | 1 000 V |
| Type of connection, main circuit | flat pad connection, M10 |
| Colour control element (EF007167) | - |
| Design of the operating mechanism | manual operating mechanism |
| Motor drive integrated (EF006697) | false |
| Version as main switch (EF006981) | true |
| ● mounting type / rail mounting | No |
| Rated operating voltage (EF001435) | - |
| Type of control element (EF006976) | Other |
| Switching power at 400 V (EF009166) | - |
| Version as safety switch (EF006985) | true |
| Voltage release optional (EF007491) | false |
| Ambient temperature / during storage | |
| Article Number (Market Facing Number) | 3KL5540-1GG01 |
| Rated permanent current Iu (EF001389) | 250.0 |
| ● at AC / at 50/60 Hz / rated value | 690 V |
| Ambient temperature / during operation | |
| Degree of protection (NEMA) (EF011959) | - |
| Design of the load switch / Strip form | No |
| Suitable for floor mounting (EF007243) | FALSE |
| Surge voltage resistance / rated value | 8 000 V |
| Version as reversing switch (EF009408) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Conditional rated short-circuit current | |
| ● at AC-23 A / at 500 V / rated value | 132 000 W |
| Number of poles / for main current circuit | 4 |
| Operating current / at AC-21 / rated value | 250 A |
| Type of the driving mechanism / motor drive | No |
| ● reference code / acc. to DIN EN 61346-2 | Q |
| Max. rated operation voltage Ue AC (EF007355) | 690 |
| Suitable for front mounting 4-hole (EF007247) | false |
| Suitable for front mounting centre (EF007248) | false |
| Suitable for intermediate mounting (EF007264) | false |
| Number of CO contacts / for auxiliary contacts | 0 |
| Number of NC contacts / for auxiliary contacts | 0 |
| Number of NO contacts / for auxiliary contacts | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | - |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Rated operation power at AC-23, 400 V (EF007027) | 132.0 |
| ● in utilization category / AC-21 A / at 400 V | 80 kA |
| ● in utilization category / AC-21 A / at 500 V | 80 kA |
| ● in utilization category / AC-21 B / at 400 V | 80 kA |
| ● in utilization category / AC-21 B / at 500 V | 80 kA |
| ● in utilization category / AC-22 A / at 400 V | 80 kA |
| ● in utilization category / AC-22 A / at 500 V | 80 kA |
| ● in utilization category / AC-22 B / at 400 V | 80 kA |
| ● in utilization category / AC-22 B / at 500 V | 80 kA |
| Rated short-time withstand current lcw (EF007050) | - |
| Version as emergency stop installation (EF006959) | false |
| Version as maintenance-/service switch (EF006986) | true |
| Rated permanent current at AC-21, 400 V (EF009165) | - |
| Rated permanent current at AC-23, 400 V (EF011777) | 250 |
| Rated current Ie / maximum / in utilization category | |
| Conditioned rated short-circuit current Iq (EF001444) | - |
| ● at AC-23 A / at 400 V / at 50/60 Hz / rated value | 132 000 W |
| ● at AC-23 A / at 690 V / at 50/60 Hz / rated value | 185 000 W |
| Connectable conductor cross-section / for main contacts | |
| Suitable for distribution board installation (EF007262) | false |
| Type of electrical connection of main circuit (EF006819) | Other |
| ● Mounting type / front mounting with 4-hole attachment | No |
| ● Mounting type / front mounting with central attachment | No |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2007 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 11 W |
| Let-through current / I2 t / maximum permissible / in utilization category / AC-22 B / at 400 V | 1 000 000 A²·s |
| Declaration of ConformityTest CertificatesShipping ApprovalotherSpecial Test CertificateMiscellaneousotherEnvironmental Confirmations | Declaration of Conformity |
