3KF2312-0MR11-8AA1

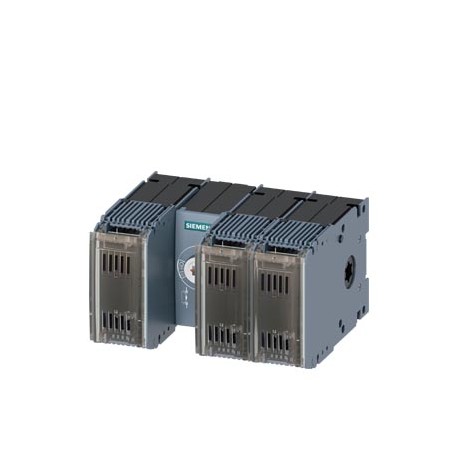

3KF2312-0MR11-8AA1 SIEMENS Switch disconnector with fuse 125A, size 2, 3-pole LV HRC-fuse Sz. 000 and 00 Fro..
$0.00USD
3517 in stock
Key Specifications
:
EAN:4001869570167
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869570167 |
| UPC | Not available |
| ETIM | 5 |
| depth | 178 mm |
| width | 190.7 mm |
| eClass | 6 |
| height | 111.3 mm |
| I2t value | |
| Group Code | P360 |
| net weight | 2 200 g |
| fuse system | LV HRC fuse |
| ● maximum | 22 N·m |
| ● minimum | 15 N·m |
| Date5/5/2022 | |
| Metal Factor | LAO----- |
| Miscellaneous | |
| Product Group | 5379 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | SENTRON 3KF Switch Disconnectors with Fuses |
| power loss [W] | |
| Net Weight (kg) | 2,734 Kg |
| number of poles | 3 |
| ● main switch | Yes |
| ● motor drive | No |
| design of handle | Without |
| fastening method | floor mounting |
| product function | |
| ● on the front | IP20 |
| Country of origin | China |
| mounting position | any |
| size of fuse link | NH000, NH00 |
| ● rail mounting | No |
| ● safety switch | Yes |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| product variations | 3KF SIVACON |
| Packaging Dimension | 230,00 x 250,00 x 150,00 |
| Product Description | Switch disconnector with fuse 125A, size 2, 3-pole LV HRC-fuse Sz. 000 and 00 Frontoperatingmechanism center Basic device without handle flat terminal on the rear specific SIVACON part number |
| operational current | |
| protection class IP | IP00 |
| suitability for use | |
| ● fuse monitoring | Yes |
| overvoltage category | IV |
| design of the product | 3KF switch disconnector with fuses |
| ● for copper busbar | 1x (15 x 3 mm²) |
| direction of actuation | from the front |
| ● locking capability | Yes |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 125 A |
| ● switch disconnector | Yes |
| General Product Approval | Declaration of Conformity |
| ● EMERGENCY OFF switch | Yes |
| ● 4-hole front mounting | No |
| ● at AC-23 A / at 440 V | 8 000 |
| ● at AC-23 A / at 690 V | 5 000 |
| ● at DC-23 A / at 440 V | 1 000 |
| Export Control Regulations | AL : N / ECCN : N |
| product feature / sealable | Yes |
| size of disconnecting link | 00 and 000 |
| Standard lead time ex-works | 12 Day/Days |
| Surcharge for Raw Materials | None |
| product feature / interlock | No |
| size of switch disconnector | 2 |
| ● at 35 °C / rated value | 125 A |
| ● at 40 °C / rated value | 125 A |
| ● at 45 °C / rated value | 125 A |
| ● at 50 °C / rated value | 125 A |
| ● at 55 °C / rated value | 125 A |
| ● at 60 °C / rated value | 125 A |
| ● at 65 °C / rated value | 125 A |
| ● at 70 °C / rated value | 125 A |
| Package size unit of measure | MM |
| product extension / optional | |
| ● maintenance/repair switch | Yes |
| design of the actuating element | without |
| operational current / rated value | 125 A |
| ambient temperature / during storage | |
| product extension / auxiliary switch | Yes |
| ● of the fuse / per fuse / maximum | 11 W |
| Article Number (Market Facing Number) | 3KF2312-0MR11-8AA1 |
| ● overvoltage protection monitoring | No |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge voltage resistance / rated value | 12 kV |
| electrical endurance (switching cycles) | |
| ● at 500 V / by gG fuse / rated value | 100 kA |
| ● at 690 V / by gG fuse / rated value | 100 kA |
| ● at AC-21 A / at 500 V / rated value | 125 A |
| ● at AC-21 A / at 690 V / rated value | 125 A |
| ● at DC-21 A / at 220 V / rated value | 125 A |
| ● product component / voltage trigger | No |
| let-through current / with closed switch | |
| operational current / at DC / rated value | 125 A |
| ● front mounting with central attachment | No |
| type of the driving mechanism / motor drive | No |
| type of connectable conductor cross-sections | |
| ● product component / undervoltage release | No |
| tightening torque / with screw-type terminals | |
| number of CO contacts / for auxiliary contacts | 3 |
| number of NC contacts / for auxiliary contacts | 6 |
| number of NO contacts / for auxiliary contacts | 6 |
| ● at DC-21 A / at 440 V / rated value / note | 125 A |
| ● at DC-22 A / at 220 V / rated value / note | 125 A |
| ● at DC-22 A / at 440 V / rated value / note | 125 A |
| ● at DC-23 A / at 220 V / rated value / note | 125 A |
| ● at DC-23 A / at 440 V / rated value / note | 125 A |
| ● product function / phase failure monitoring | No |
| operating voltage / with current paths in series | |
| ● of the fuse / at 500 V / maximum permissible | 223 000 A²·s |
| ● stranded / with lug / according to DIN 46234 | 1x (2.5 ... 95 mm²), 2x (2.5 ... 50 mm²) |
| ● stranded / with lug / according to DIN 46235 | 1x (25 ... 70 mm²), 2x (25 ... 50 mm²) |
| operating voltage / at AC / rated value / maximum | 690 V |
| ● of the aM fuse / at 690 V / maximum permissible | 565 000 A²·s |
| ● of the gG fuse / at 690 V / maximum permissible | 360 000 A²·s |
| Region Specific PriceGroup / Headquarter Price Group | 12S / 1DL |
| mechanical service life (switching cycles) / typical | 12 000 |
| ● with degree of pollution 2 / at DC / rated value | 440 / 3 |
| ● with degree of pollution 3 / at DC / rated value | 440 / 3 |
| operating power / at AC-23 A / at 500 V / rated value | 75 kW |
| ● with closed switch / with cover or cable lug cover | IP20 |
| ● with conventional rated thermal current / per pole | 4.2 W |
| number of connected CO contacts / for auxiliary contacts | 0 |
| number of connected NC contacts / for auxiliary contacts | 0 |
| number of connected NO contacts / for auxiliary contacts | 0 |
| type of electrical connection / for main current circuit | flat connector |
| ● with conventional rated thermal current / per device | 12.6 W |
| arrangement of electrical connectors / for main current circuit | Rear |
| ● product component / undervoltage release with leading contact | No |
| conditional short-circuit current / with line-side fuse protection | |
| let-through current / of the fuse / at 500 V / maximum permissible | 18 000 A |
| ● for combination switch + fuse / at 400 V / maximum permissible | 18 200 A |
| ● for combination switch + fuse / at 500 V / maximum permissible | 18 200 A |
| type of connectable conductor cross-sections / for copper conductor | |
| let-through current / of the aM fuse / at 690 V / maximum permissible | 33 200 A |
| let-through current / of the gG fuse / at 690 V / maximum permissible | 25 500 A |
| ● at 690 V / for combination switch + aM fuse / maximum permissible | 27 300 A |
| ● at 690 V / for combination switch + gG fuse / maximum permissible | 16 870 A |
| ● with conventional rated thermal current / without fuse / per pole | 4.2 W |
| Compliance with the substance restrictions according to RoHS directive | Since: 24.01.2019 |
| ● with conventional rated thermal current / without fuse / per device | 12.6 W |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● with closed switch / for combination switch + fuse / at 400 V / maximum | 150 600 A²·s |
| ● with closed switch / for combination switch + fuse / at 500 V / maximum | 150 600 A²·s |
| ● for rated value of the current / at AC / in hot operating state / per pole | 4.2 W |
| ● with closed switch / at 690 V / for combination switch + gG fuse / maximum | 89 640 A²·s |
| short-time withstand current (Icw) / at 690 V AC/440 V DC / limited to 1 s / rated value | 5 kA |
| type of connectable conductor cross-sections / for aluminum conductor / stranded / with lug | 1x (2.5 ... 70 mm²), 2x (2.5 ... 50 mm²) |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousUK Declaration of ConformityotherMiscellaneous | General Product Approval |
| short-circuit current making capacity (Icm) / for switch disconnector / at 690 V AC/440 V DC / without fuse link / rated value / minimum | 7.65 kA |
Product Description
Disconnector switch with fuse 125 A, size 2, 3 poles for fuse NH tam. 000 and 00 Central front drive base unit without lever rear flat connection, specific module SIVACON. Cancelations and returns lim
