3KE4530-0BA

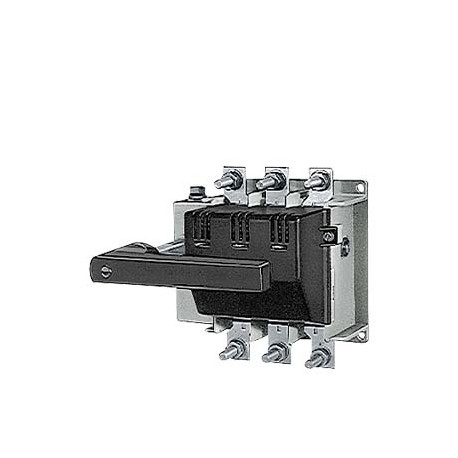

3KE4530-0BA SIEMENS switch disconnector, 3-pole I 1000A, U 690V front mounted rotary operator with black han..
$0.00USD
3725 in stock
Key Specifications
:Value
EAN:4011209000780
UPC:754554943060
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209000780 |
| UPC | 754554943060 |
| ETIM | 4 |
| Depth | 254 mm |
| Notes | Sucessor:3KD5030-0RE10-0, different dimensions, some deviating technical values. |
| Width | 209 mm |
| Height | 290 mm |
| UNSPSC | 14 |
| eClass | 6 |
| ● 400V | 40 000 A |
| ● 500V | 40 000 A |
| Group Code | P360 |
| net weight | 7.76 kg |
| Price Group | 12S |
| ● maximum | 55 °C |
| ● minimum | -20 °C |
| Metal Factor | LAO----- |
| Mounting type | floor mounting |
| Product Group | 5853 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| ● interlock | Yes |
| Commodity Code | 85362090 |
| Product family | Not available |
| Net Weight (kg) | 7,764 Kg |
| number of poles | 3 |
| type of voltage | AC/DC |
| ● motor drive | No |
| Type of mounting | fixed mounted |
| Country of origin | Germany |
| Operating voltage | |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product phase-out since: 31.08.2018 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 287,00 x 321,00 x 206,00 |
| Product Description | switch disconnector, 3-pole I=1000A, U=690V front mounted rotary operator with black handle |
| Product designation | Switch Disconnector 3KE |
| Protection class IP | IP00 |
| ● Voltage trigger | No |
| Design of the product | For assembly and installation |
| ● AC-21 A / at 400 V | 1 000 A |
| ● AC-21 A / at 500 V | 1 000 A |
| ● AC-21 B / at 400 V | 1 000 A |
| ● AC-21 B / at 500 V | 1 000 A |
| ● AC-22 A / at 400 V | 800 A |
| ● AC-22 A / at 500 V | 800 A |
| ● AC-22 B / at 400 V | 800 A |
| ● AC-22 B / at 500 V | 800 A |
| ● stranded / maximum | 480 mm² |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| ● at DC / rated value | 440 V |
| Interlockable (EF006281) | false |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| certificate of suitability | CE |
| Product feature / interlock | No |
| Standard lead time ex-works | 15 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Product extension / optional | |
| Number of switches (EF005586) | - |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Product Dimensions (W x L x H) | Not available |
| Motor drive optional (EF007386) | false |
| Operating current / rated value | 1 000 A |
| Continuous current / rated value | 1 000 A |
| Insulation voltage / rated value | 1 000 V |
| Type of connection, main circuit | Flat-type screw terminal; M12 |
| Colour control element (EF007167) | - |
| Design of the operating mechanism | manual operating mechanism |
| Motor drive integrated (EF006697) | false |
| Version as main switch (EF006981) | true |
| ● mounting type / rail mounting | No |
| Rated operating voltage (EF001435) | - |
| Type of control element (EF006976) | Other |
| Switching power at 400 V (EF009166) | - |
| Version as safety switch (EF006985) | true |
| Voltage release optional (EF007491) | false |
| Ambient temperature / during storage | |
| Product extension / Auxiliary switch | Yes |
| Article Number (Market Facing Number) | 3KE4530-0BA |
| Rated permanent current Iu (EF001389) | 1000.0 |
| ● at AC / at 50/60 Hz / rated value | 690 V |
| Ambient temperature / during operation | |
| Degree of protection (NEMA) (EF011959) | - |
| Design of the load switch / Strip form | No |
| Suitable for floor mounting (EF007243) | FALSE |
| Version as reversing switch (EF009408) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Conditional rated short-circuit current | |
| Number of poles / for main current circuit | 3 |
| Type of the driving mechanism / motor drive | No |
| ● Reference code / acc. to DIN EN 81346-2 | Q |
| ● reference code / acc. to DIN EN 61346-2 | Q |
| Max. rated operation voltage Ue AC (EF007355) | 690 |
| Suitable for front mounting 4-hole (EF007247) | false |
| Suitable for front mounting centre (EF007248) | false |
| Suitable for intermediate mounting (EF007264) | false |
| Number of CO contacts / for auxiliary contacts | 0 |
| Number of NC contacts / for auxiliary contacts | 0 |
| Number of NO contacts / for auxiliary contacts | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | - |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Rated operation power at AC-23, 400 V (EF007027) | - |
| ● in utilization category / AC-21 A / at 400 V | 40 000 A |
| ● in utilization category / AC-21 A / at 500 V | 40 000 A |
| ● in utilization category / AC-21 B / at 400 V | 40 000 A |
| ● in utilization category / AC-21 B / at 500 V | 40 000 A |
| ● in utilization category / AC-22 A / at 400 V | 40 000 A |
| ● in utilization category / AC-22 A / at 500 V | 40 000 A |
| ● in utilization category / AC-22 B / at 400 V | 40 000 A |
| ● in utilization category / AC-22 B / at 500 V | 40 000 A |
| Rated short-time withstand current lcw (EF007050) | - |
| Version as emergency stop installation (EF006959) | true |
| Version as maintenance-/service switch (EF006986) | true |
| Rated permanent current at AC-21, 400 V (EF009165) | - |
| Rated permanent current at AC-23, 400 V (EF011777) | 1000 |
| Rated current Ie / maximum / in utilization category | |
| Conditioned rated short-circuit current Iq (EF001444) | 40.0 |
| Connectable conductor cross-section / for main contacts | |
| Suitable for distribution board installation (EF007262) | false |
| Type of electrical connection of main circuit (EF006819) | Other |
| ● Mounting type / front mounting with 4-hole attachment | No |
| ● Mounting type / front mounting with central attachment | No |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Given |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Declaration of ConformityTest CertificatesotherSpecial Test CertificateMiscellaneous | Declaration of Conformity |
| Power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 60 W |
| Let-through current / I2 t / maximum permissible / in utilization category / AC-22 B / at 400 V | 19 000 000 A²·s |
