3KD9515-2

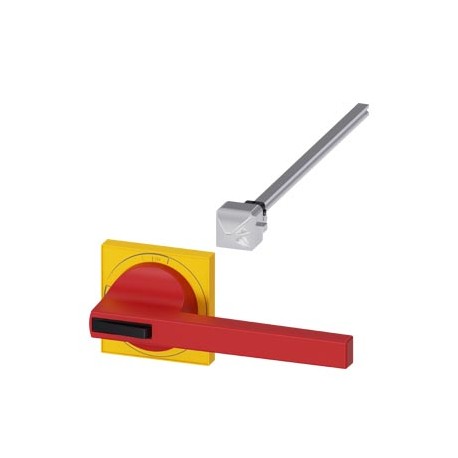

3KD9515-2 SIEMENS Accessory for 3KD size 5 door-coupling rotary operating mechanism Complete operating mecha..
$0.00USD
4433 in stock
Key Specifications
:Value
EAN:4011209931770
UPC:Not available
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209931770 |
| UPC | Not available |
| ETIM | 4 |
| Depth | 388 mm |
| Notes | Sucessor:8UD1161-4AF25, design change |
| Width | 250 mm |
| Height | 100 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| net weight | 999 g |
| Price Group | 12S |
| Metal Factor | None |
| Miscellaneous | |
| Product Group | 5378 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Accessories and Spare Parts |
| Net Weight (kg) | 1,080 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product phase-out since: 31.08.2018 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Lockable (EF000113) | true |
| Packaging Dimension | 110,00 x 300,00 x 95,00 |
| Product Description | Accessory for 3KD size 5 door-coupling rotary operating mechanism Complete operating mechanism, yellow/red incl. shaft 300 mm long and clutch holder Can be locked in OFF position |
| Product designation | Accessories for switch disconnectors |
| product description | INCL DRIVE SHAFT AND COUPLING DRIVER |
| suitability for use | For 3KD, size 5 |
| Design of the product | Door-coupling rotary operating mechanism |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 15 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type of the driving mechanism | MANUAL OPERATING MECHANISM |
| Product Dimensions (W x L x H) | Not available |
| With axis extension (EF001968) | - |
| With door interlock (EF001969) | true |
| Length / of the extension shaft | 300 mm |
| ● Product feature / interlock | Yes |
| Color / of the actuating element | Red/Yellow |
| With handle red/yellow (EF001970) | FALSE |
| protection class IP / on the front | IP65 |
| Article Number (Market Facing Number) | 3KD9515-2 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Display version / for switch position indicator | ON-OFF |
| ● Product function / can be locked into OFF position | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 24.11.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityShipping ApprovalotherMiscellaneousMiscellaneous | General Product Approval |
