3KD9415-1

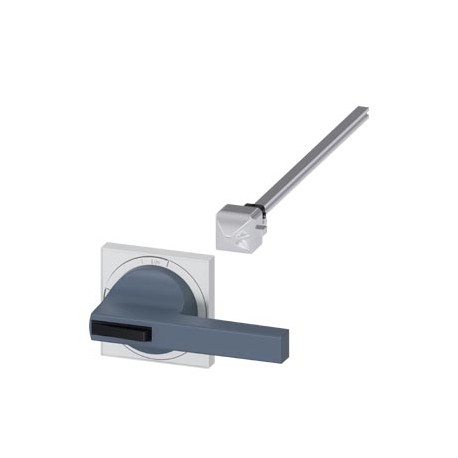

3KD9415-1 SIEMENS Accessory for 3KD size 4 door-coupling rotary operating mechanism Complete operating mecha..
$0.00USD
3788 in stock
Key Specifications
:Value
EAN:4011209931749
UPC:Not available
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209931749 |
| UPC | Not available |
| ETIM | 4 |
| Depth | 388 mm |
| Notes | Sucessor:8UD1151-3AF21, design change |
| Width | 190 mm |
| Height | 100 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| net weight | 1 155 g |
| Price Group | 12S |
| Metal Factor | None |
| Miscellaneous | |
| Product Group | 5378 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Accessories and Spare Parts |
| Net Weight (kg) | 1,011 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product phase-out since: 31.08.2018 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Lockable (EF000113) | true |
| Packaging Dimension | 110,00 x 300,00 x 95,00 |
| Product Description | Accessory for 3KD size 4 door-coupling rotary operating mechanism Complete operating mechanism, gray incl. shaft 300 mm long and clutch holder Can be locked in OFF position |
| Product designation | Accessories for switch disconnectors |
| product description | INCL DRIVE SHAFT AND COUPLING DRIVER |
| suitability for use | For 3KD, size 4 |
| Design of the product | Door-coupling rotary operating mechanism |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 15 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type of the driving mechanism | MANUAL OPERATING MECHANISM |
| Product Dimensions (W x L x H) | Not available |
| With axis extension (EF001968) | - |
| With door interlock (EF001969) | true |
| Length / of the extension shaft | 300 mm |
| ● Product feature / interlock | Yes |
| Color / of the actuating element | gray |
| With handle red/yellow (EF001970) | FALSE |
| protection class IP / on the front | IP65 |
| Article Number (Market Facing Number) | 3KD9415-1 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Display version / for switch position indicator | ON-OFF |
| ● Product function / can be locked into OFF position | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 24.11.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalDeclaration of ConformityShipping ApprovalotherMiscellaneousMiscellaneous | General Product Approval |
