3KD9103-5

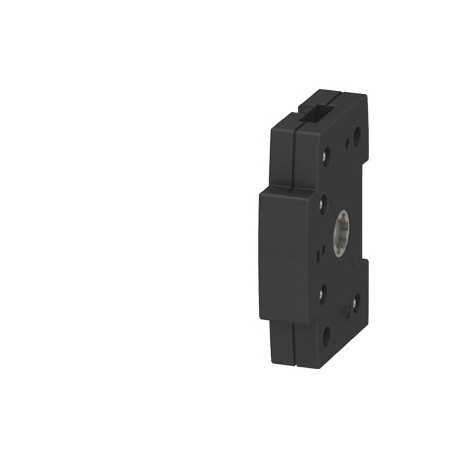

3KD9103-5 SIEMENS Accessory for 3KD size 1/2, 3KF size 1 3KC0 size 1/2 Auxiliary switch module for max. 2 au..
$0.00USD
3484 in stock
Key Specifications
:Value
EAN:4001869473734
UPC:Not available
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869473734 |
| UPC | Not available |
| ETIM | 4 |
| Depth | 60.5 mm |
| Width | 20.4 mm |
| Height | 84 mm |
| eClass | 6 |
| Group Code | P360 |
| net weight | 71 g |
| Price Group | 12S |
| Metal Factor | None |
| Miscellaneous | |
| Mounting type | Side mounting |
| Product Group | 5378 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Accessories and Spare Parts |
| Net Weight (kg) | 0,157 Kg |
| Model (EF000010) | Top mounting |
| Country of origin | China |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 100,00 x 80,00 x 120,00 |
| Product Description | Accessory for 3KD size 1/2, 3KF size 1 3KC0 size 1/2 Auxiliary switch module for max. 2 auxiliary switches |
| Product designation | Accessories for switch disconnectors |
| product description | For up to 2 auxiliary switches |
| suitability for use | For 3KD sizes 1 and 2 |
| Design of the product | Auxiliary switch module |
| Lamp holder (EF000048) | - |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Side mounting |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Product Dimensions (W x L x H) | Not available |
| Article Number (Market Facing Number) | 3KD9103-5 |
| Type of electric connection (EF003961) | Other |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Number of fault-signal switches (EF007613) | - |
| Number of contacts as change-over contact (EF008257) | - |
| Rated operation current Ie at AC-15, 230 V (EF001385) | - |
| Number of contacts as normally open contact (EF008256) | - |
| Number of contacts as normally closed contact (EF008255) | - |
| Number of CO contacts / of auxiliary contacts / instantaneous contact | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 24.11.2009 |
| Number of NC contacts / for auxiliary contacts / instantaneous contact | 0 |
| Number of NO contacts / for auxiliary contacts / instantaneous contact | 0 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityShipping ApprovalMiscellaneousotherMiscellaneous | General Product Approval |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
