3KD9101-2

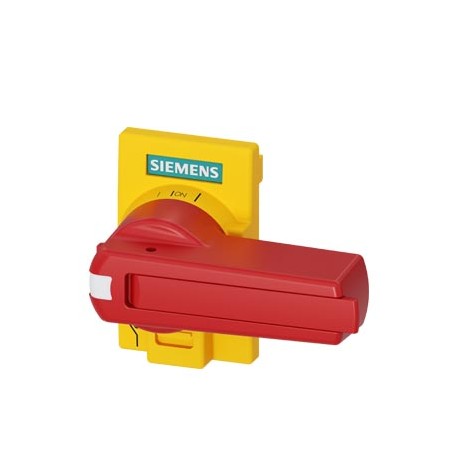

3KD9101-2 SIEMENS Accessory for 3KD size 1 Direct operating mechanism, red/yellow Standard version Can be lo..
$0.00USD
4002 in stock
Key Specifications
:
EAN:4001869473680
UPC:Not available
ETIM:7
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869473680 |
| UPC | Not available |
| ETIM | 7 |
| IDEA | 4 |
| depth | 35 mm |
| width | 60 mm |
| UNSPSC | 15 |
| eClass | 1.2 |
| height | 45 mm |
| Group Code | P360 |
| net weight | 240 g |
| Confirmation | Miscellaneous |
| Metal Factor | None |
| Date7/11/2022 | |
| Miscellaneous | |
| Product Group | 5378 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| ● interlock | Yes |
| Commodity Code | 85389099 |
| Product family | Accessories and Spare Parts |
| Net Weight (kg) | 0,124 Kg |
| product feature | |
| Country of origin | China |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Lockable (EF000113) | true |
| Packaging Dimension | 100,00 x 80,00 x 120,00 |
| Product Description | Accessory for 3KD size 1 Direct operating mechanism, red/yellow Standard version Can be locked in OFF position with three padlocks |
| product designation | Accessories for switch disconnectors |
| suitability for use | For 3KD, size 1 |
| design of the product | Direct operating mechanism |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| type of the driving mechanism | MANUAL OPERATING MECHANISM |
| With axis extension (EF001968) | - |
| With door interlock (EF001969) | true |
| color / of the actuating element | Red/Yellow |
| With handle red/yellow (EF001970) | FALSE |
| protection class IP / on the front | IP30 |
| ● can be locked into OFF position | Yes |
| Article Number (Market Facing Number) | 3KD9101-2 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| display version / for switch position indicator | ON-OFF-TEST |
| Region Specific PriceGroup / Headquarter Price Group | 12S / 1CL |
| Compliance with the substance restrictions according to RoHS directive | Since: 24.11.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityMarine / ShippingConfirmationMiscellaneousotherMiscellaneous | General Product Approval |
Product Description
ACCESSORY FOR 3KD TAM. 1 ACCTO. DIRECT, RED/YELLOW STANDARD VERSION LOCKABLE IN OFF POSITION WITH THREE PADLOCKS
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
