3KD5232-0RE10-0

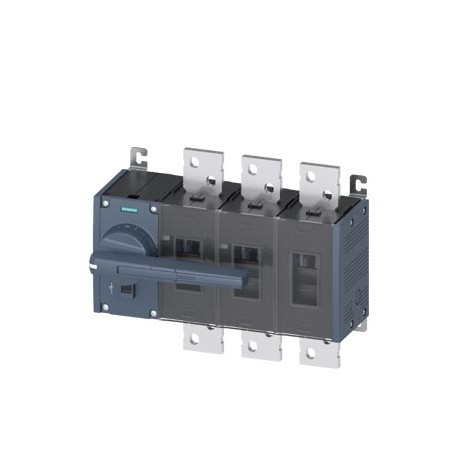

3KD5232-0RE10-0 SIEMENS Switch disconnector 1250 A, Size 5, 3-pole Front operating mechanism left Complete u..
$0.00USD
3356 in stock
Key Specifications
:VersionClassificationeClass627-37-14-03eClass7.127-37-14-03eClass827-37-14-03eClass927-37-14-03eClass9.127-37-14-03ETIM5EC000216ETIM6EC000216ETIM7EC000216ETIM8EC000216UNSPSC1539-12-22-33
EAN:4001869473352
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-14-03eClass7.127-37-14-03eClass827-37-14-03eClass927-37-14-03eClass9.127-37-14-03ETIM5EC000216ETIM6EC000216ETIM7EC000216ETIM8EC000216UNSPSC1539-12-22-33 | |
| EAN | 4001869473352 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| Metal Factor | LOA----- |
| Product Group | 5378 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Basic Devices |
| Net Weight (kg) | 17,420 Kg |
| Country of origin | China |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Packaging Dimension | 350,00 x 401,00 x 250,00 |
| Product Description | Switch disconnector 1250 A, Size 5, 3-pole Front operating mechanism left Complete unit with direct operating mechanism gray flat terminal |
| Product Lifecycle (PLM) | PM300:Active Product |
| Interlockable (EF006281) | true |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Number of switches (EF005586) | - |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Motor drive optional (EF007386) | false |
| Colour control element (EF007167) | Grey |
| Motor drive integrated (EF006697) | false |
| Version as main switch (EF006981) | true |
| Rated operating voltage (EF001435) | - |
| Type of control element (EF006976) | Long turning handle |
| Switching power at 400 V (EF009166) | 400.0 |
| Version as safety switch (EF006985) | true |
| Voltage release optional (EF007491) | false |
| Article Number (Market Facing Number) | 3KD5232-0RE10-0 |
| Rated permanent current Iu (EF001389) | 1250.0 |
| Degree of protection (NEMA) (EF011959) | - |
| Suitable for floor mounting (EF007243) | FALSE |
| Version as reversing switch (EF009408) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 690 |
| Suitable for front mounting 4-hole (EF007247) | false |
| Suitable for front mounting centre (EF007248) | false |
| Suitable for intermediate mounting (EF007264) | false |
| Rated operation power at AC-3, 400 V (EF001364) | - |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Rated operation power at AC-23, 400 V (EF007027) | 710.0 |
| Rated short-time withstand current lcw (EF007050) | - |
| Version as emergency stop installation (EF006959) | false |
| Version as maintenance-/service switch (EF006986) | true |
| Rated permanent current at AC-21, 400 V (EF009165) | 1250 |
| Rated permanent current at AC-23, 400 V (EF011777) | - |
| Region Specific PriceGroup / Headquarter Price Group | 12S / 1CL |
| Conditioned rated short-circuit current Iq (EF001444) | - |
| Suitable for distribution board installation (EF007262) | false |
| Type of electrical connection of main circuit (EF006819) | Other |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 8 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 8 |
| Compliance with the substance restrictions according to RoHS directive | Since: 24.11.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
SWITCH-DISCONNECTOR 1250A, SIZE 5, 3 POLES ACCTO. FRONT TO LEFT. COMPLETE UNIT WITH ACCTO. FULL, GREY FLAT CONNECTION
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
