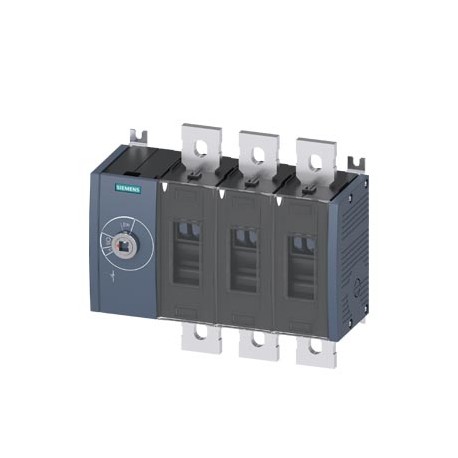

3KD4830-0QE10-0 SIEMENS Switch disconnector 800 A, Size 4, 3-pole Front operating mechanism left Basic unit ..
$0.00USD
4763 in stock
Key Specifications
:Confirmation
EAN:4001869473154
UPC:Not available
ETIM:7
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869473154 |
| UPC | Not available |
| ETIM | 7 |
| depth | 110 mm |
| width | 260 mm |
| UNSPSC | 15 |
| eClass | 1.2 |
| height | 235 mm |
| I2t value | |
| Group Code | P360 |
| net weight | 7 408 g |
| ● maximum | 70 °C |
| ● minimum | -25 °C |
| Metal Factor | LOA----- |
| Date7/11/2022 | |
| Product Group | 5378 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Basic Devices |
| power loss [W] | |
| type of device | fixed mounting |
| Net Weight (kg) | 7,408 Kg |
| number of poles | 3 |
| operating power | |
| ● main switch | Yes |
| ● motor drive | No |
| ● rated value | 1 000 V |
| fastening method | screw fixing |
| ● on the front | IP00 |
| Country of origin | China |
| mounting position | any |
| product component | |
| ● rail mounting | No |
| ● safety switch | Yes |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| insulation voltage | |
| product brand name | SENTRON |
| ● trip indicator | No |
| Packaging Dimension | 264,00 x 322,00 x 177,00 |
| Product Description | Switch disconnector 800 A, Size 4, 3-pole Front operating mechanism left Basic unit without handle flat terminal |
| degree of pollution | 3 |
| operational current | |
| product designation | 3KD switch disconnector |
| protection class IP | IP00 |
| suitability for use | |
| ● voltage trigger | No |
| overvoltage category | IV |
| design of the product | Switch |
| ● for copper busbar | '1 x (40 x 10 mm²), 2 x (40 x 5 mm²) |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 800 A |
| ● stranded / with lug | 1x (25 ... 240 mm²), 2x (25 ... 240 mm²) |
| ● switch disconnector | Yes |
| General Product Approval | Declaration of Conformity |
| Interlockable (EF006281) | false |
| ● EMERGENCY OFF switch | Yes |
| ● undervoltage release | No |
| Declaration of Conformity | Marine / Shipping |
| ● 4-hole front mounting | No |
| ● at AC-23 A / at 690 V | 500 |
| ● at DC-23 A / at 440 V | 500 |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| product feature / interlock | No |
| size of switch disconnector | 4 |
| ● at 35 °C / rated value | 800 A |
| ● at 40 °C / rated value | 800 A |
| ● at 45 °C / rated value | 800 A |
| ● at 50 °C / rated value | 800 A |
| ● at 55 °C / rated value | 800 A |
| ● at 60 °C / rated value | 630 A |
| ● at 65 °C / rated value | 630 A |
| ● at 70 °C / rated value | 630 A |
| Package size unit of measure | MM |
| product extension / optional | |
| Number of switches (EF005586) | - |
| type of the driving mechanism | Front operating mechanism |
| ● maintenance/repair switch | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Motor drive optional (EF007386) | false |
| design of the actuating element | Without handle |
| Colour control element (EF007167) | Other |
| Motor drive integrated (EF006697) | false |
| Version as main switch (EF006981) | true |
| operational current / rated value | 800 A |
| Rated operating voltage (EF001435) | - |
| Type of control element (EF006976) | None |
| Switching power at 400 V (EF009166) | 355.0 |
| Version as safety switch (EF006985) | true |
| Voltage release optional (EF007491) | false |
| ambient temperature / during storage | |
| product extension / auxiliary switch | Yes |
| ● at AC-20 A / at 1000 V / maximum | 800 A |
| ● at AC-22 A / at 1000 V / maximum | 800 A |
| ● at DC-20 A / at 1000 V / maximum | 800 A / 1 |
| Article Number (Market Facing Number) | 3KD4830-0QE10-0 |
| Rated permanent current Iu (EF001389) | 800.0 |
| Degree of protection (NEMA) (EF011959) | - |
| Suitable for floor mounting (EF007243) | FALSE |
| Version as reversing switch (EF009408) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge voltage resistance / rated value | 12 kV |
| electrical endurance (switching cycles) | |
| ● at 500 V / by gG fuse / rated value | 100 kA |
| ● at 690 V / by gG fuse / rated value | 100 kA |
| ● at AC-21 A / at 500 V / rated value | 800 A |
| ● at AC-21 A / at 690 V / rated value | 800 A |
| ● at AC-22 A / at 400 V / rated value | 800 A |
| ● at AC-22 A / at 500 V / rated value | 800 A |
| ● at AC-22 A / at 690 V / rated value | 800 A |
| ● at AC-23 A / at 400 V / rated value | 800 A |
| ● at AC-23 A / at 500 V / rated value | 800 A |
| ● at AC-23 A / at 690 V / rated value | 800 A |
| ● at DC-21 A / at 220 V / rated value | 800 A / 2 |
| operational current / at DC / rated value | 800 A |
| ● front mounting with central attachment | No |
| type of the driving mechanism / motor drive | No |
| position / of the switch operating mechanism | at the left end |
| type of connectable conductor cross-sections | |
| Max. rated operation voltage Ue AC (EF007355) | 690 |
| Suitable for front mounting 4-hole (EF007247) | false |
| Suitable for front mounting centre (EF007248) | false |
| Suitable for intermediate mounting (EF007264) | false |
| ● undervoltage release with leading contact | No |
| ● without fuse link / rated value / minimum | 80 kA |
| number of CO contacts / for auxiliary contacts | 0 |
| number of NC contacts / for auxiliary contacts | 8 |
| number of NO contacts / for auxiliary contacts | 8 |
| ● at DC-21 A / at 440 V / rated value / note | 800 A / 3 |
| ● at DC-22 A / at 220 V / rated value / note | 800 A / 2 |
| ● at DC-22 A / at 440 V / rated value / note | 800 A / 3 |
| ● at DC-23 A / at 220 V / rated value / note | 800 A / 2 |
| ● at DC-23 A / at 440 V / rated value / note | 800 A / 3 |
| Rated operation power at AC-3, 400 V (EF001364) | - |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Rated operation power at AC-23, 400 V (EF007027) | 400.0 |
| operating voltage / with current paths in series | |
| ● of the fuse / at 500 V / maximum permissible | 10 400 005 A²·s |
| ● stranded / with lug / according to DIN 46235 | 1x (25 ... 240 mm²), 2x (25 ... 240 mm²) |
| Rated short-time withstand current lcw (EF007050) | - |
| Version as emergency stop installation (EF006959) | true |
| Version as maintenance-/service switch (EF006986) | true |
| Rated permanent current at AC-21, 400 V (EF009165) | 800 |
| Rated permanent current at AC-23, 400 V (EF011777) | - |
| Region Specific PriceGroup / Headquarter Price Group | 12S / 1CL |
| mechanical service life (switching cycles) / typical | 8 000 |
| ● with degree of pollution 2 / at DC / rated value | 440 V / 3 |
| ● with degree of pollution 3 / at DC / rated value | 440 V / 3 |
| Conditioned rated short-circuit current Iq (EF001444) | - |
| ● with closed switch / with cover or cable lug cover | IP20 |
| ● with conventional rated thermal current / per pole | 25 W |
| Suitable for distribution board installation (EF007262) | false |
| Type of electrical connection of main circuit (EF006819) | Other |
| number of connected CO contacts / for auxiliary contacts | 0 |
| number of connected NC contacts / for auxiliary contacts | 0 |
| number of connected NO contacts / for auxiliary contacts | 0 |
| type of electrical connection / for main current circuit | flat connector |
| ● with conventional rated thermal current / per device | 75 W |
| ● at 415 V / by molded case circuit breaker / rated value | 65 kA |
| ● at DC 440 V / without fuse link / rated value / minimum | 42.6 kA |
| ● at 1000 V AC / without fuse link / rated value / minimum | 80 kA |
| ● of the gG/aM SITOR fuse / at 1000 V / maximum permissible | 520 000 A²·s |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| continuous current / of upstream fuse / at 1000 V / rated value | 1 000 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 8 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 8 |
| conditional short-circuit current / with line-side fuse protection | |
| let-through current / of the fuse / at 500 V / maximum permissible | 118 000 A |
| type of connectable conductor cross-sections / for copper conductor | |
| let-through current / of the gG fuse / at 690 V / maximum permissible | 90 600 A |
| short-circuit current making capacity (Icm) / for switch disconnector | |
| type of connectable conductor cross-sections / for aluminum conductor | |
| Compliance with the substance restrictions according to RoHS directive | Since: 24.11.2009 |
| ● of the molded case circuit breaker / at 415 V / maximum permissible | 16 000 000 A²·s |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| continuous current / of upstream fuse / at 500 V and 690 V / rated value | 1 000 A |
| ● for rated value of the current / at AC / in hot operating state / per pole | 25 W |
| let-through current / of the gG/aM SITOR fuse / at 1000 V / maximum permissible | 43 000 A |
| continuous current / of upstream molded case circuit breaker / at 415 V / rated value | 1 000 A |
| ● with closed switch / at 1000 V / for combination switch +gG/aM SITOR fuse / maximum | 647 250 A²·s |
| display version / for switch position indicator door-coupling rotary operating mechanism | ON-OFF |
| let-through current / of the molded case circuit breaker / at 415 V / maximum permissible | 72 500 A |
| short-time withstand current (Icw) / at 1000 V AC/440 V DC / limited to 1 s / rated value | 30 kA |
| overvoltage in percent / relative to the operating voltage / at AC / at 400, 500, 690 V / at 50/60 Hz | 10 % |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousDeclaration of ConformityMarine / ShippingotherMiscellaneous | General Product Approval |
