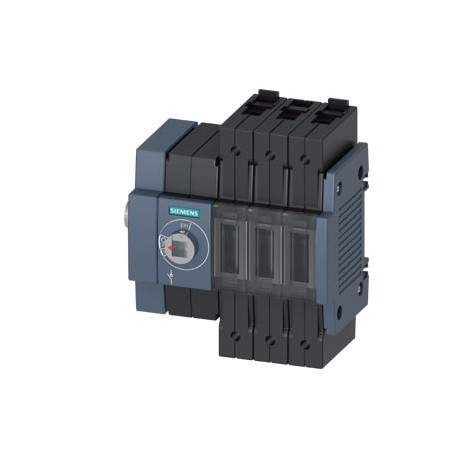

3KD1634-2ME10-0 SIEMENS Switch disconnector 16A, Size 1, 3-pole Lateral operating mechanism left Basic unit ..
$0.00USD
4959 in stock
Key Specifications
:Value
EAN:4001869514062
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869514062 |
| UPC | Not available |
| ETIM | 5 |
| Depth | 69.5 mm |
| Width | 103.3 mm |
| Height | 119 mm |
| UNSPSC | 14 |
| eClass | 6 |
| ● solid | 1x (1 ... 16 mm²) |
| Group Code | P360 |
| net weight | 897 g |
| Price Group | 12S |
| ● maximum | 70 °C |
| ● minimum | -25 °C |
| Metal Factor | LAO----- |
| ● stranded | 1x (6 ... 35 mm²) |
| Mounting type | Screw fixing and standard rail mounting 35 mm |
| Product Group | 5378 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Power loss [W] | |
| Product family | Basic Devices |
| Type of device | fixed mounting |
| Net Weight (kg) | 0,897 Kg |
| Operating power | |
| number of poles | 3 |
| ● Main switch | Yes |
| ● motor drive | No |
| ● rated value | 1 000 V |
| Country of origin | China |
| Operating voltage | |
| Product component | |
| mounting position | any |
| ● safety switch | Yes |
| Continuous current | |
| Insulation voltage | |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| ● Trip indicator | No |
| Degree of pollution | 3 |
| Packaging Dimension | 103,30 x 69,50 x 119,00 |
| Product Description | Switch disconnector 16A, Size 1, 3-pole Lateral operating mechanism left Basic unit without handle Box terminal |
| Product designation | 3KD switch disconnector |
| Protection class IP | IP20 |
| Suitability for use | |
| ● Voltage trigger | No |
| overvoltage category | III |
| Design of the product | Switch |
| ● for copper busbar | '1 x (2 x 9 mm²) |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● switch disconnector | Yes |
| General Product Approval | Declaration of Conformity |
| Interlockable (EF006281) | false |
| ● EMERGENCY OFF switch | Yes |
| ● undervoltage release | No |
| ● with flexible busbar | 2x (0,8x9 mm²) |
| ● at AC-23 A / at 690 V | 6 000 |
| ● at DC-23 A / at 440 V | 1 500 |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| Size of switch disconnector | 1 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| product feature / interlock | No |
| ● at 40 °C / rated value | 16 A |
| ● at 45 °C / rated value | 16 A |
| ● at 50 °C / rated value | 16 A |
| ● at 55 °C / rated value | 16 A |
| ● at 60 °C / rated value | 16 A |
| ● at 65 °C / rated value | 16 A |
| ● at 70 °C / rated value | 16 A |
| Package size unit of measure | MM |
| Product extension / optional | |
| ● for main current circuit | box terminal |
| Number of switches (EF005586) | - |
| Type of electrical connection | |
| type of the driving mechanism | Side operating mechanism |
| ● maintenance/repair switch | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Product Dimensions (W x L x H) | Not available |
| Motor drive optional (EF007386) | false |
| Operating current / rated value | 16 A |
| Colour control element (EF007167) | Other |
| Design of the operating mechanism | Without handle |
| Motor drive integrated (EF006697) | false |
| Version as main switch (EF006981) | true |
| ● mounting type / rail mounting | Yes |
| Rated operating voltage (EF001435) | - |
| Type of control element (EF006976) | None |
| Switching power at 400 V (EF009166) | 7.5 |
| Version as safety switch (EF006985) | true |
| Voltage release optional (EF007491) | false |
| Ambient temperature / during storage | |
| Product extension / Auxiliary switch | Yes |
| Article Number (Market Facing Number) | 3KD1634-2ME10-0 |
| Rated permanent current Iu (EF001389) | 16.0 |
| ● at AC / at 50/60 Hz / rated value | 1 000 V |
| Ambient temperature / during operation | |
| Degree of protection (NEMA) (EF011959) | - |
| Suitable for floor mounting (EF007243) | FALSE |
| Surge voltage resistance / rated value | 8 kV |
| Version as reversing switch (EF009408) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● protection class IP / on the front | IP20 |
| Electrical endurance (switching cycles) | |
| Operating current / at AC / rated value | 16 A |
| Operating current / at DC / rated value | 16 A |
| ● at 500 V / by gG fuse / rated value | 100 kA |
| ● at 690 V / by gG fuse / rated value | 100 kA |
| ● at AC-23 A / at 500 V / rated value | 7.5 kW |
| let-through current / with closed switch | |
| Short-circuit current making capacity (Icm) | |
| Type of the driving mechanism / motor drive | No |
| ● Reference code / acc. to DIN EN 81346-2 | Q |
| ● reference code / acc. to DIN EN 61346-2 | Q |
| Position / of the switch operating mechanism | at the left end |
| Type of connectable conductor cross-sections | |
| Max. rated operation voltage Ue AC (EF007355) | 690 |
| Suitable for front mounting 4-hole (EF007247) | false |
| Suitable for front mounting centre (EF007248) | false |
| Suitable for intermediate mounting (EF007264) | true |
| ● undervoltage release with leading contact | No |
| Number of CO contacts / for auxiliary contacts | 3 |
| Number of NC contacts / for auxiliary contacts | 0 |
| Number of NO contacts / for auxiliary contacts | 0 |
| ● finely stranded / with core end processing | 1x (1 ... 35 mm²) |
| Rated operation power at AC-3, 400 V (EF001364) | - |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Operating voltage / with current paths in series | |
| Rated operation power at AC-23, 400 V (EF007027) | 7.5 |
| Rated short-time withstand current lcw (EF007050) | - |
| Version as emergency stop installation (EF006959) | true |
| Version as maintenance-/service switch (EF006986) | true |
| Rated permanent current at AC-21, 400 V (EF009165) | 16 |
| Rated permanent current at AC-23, 400 V (EF011777) | - |
| Mechanical service life (switching cycles) / typical | 15 000 |
| ● with degree of pollution 2 / at DC / rated value | 440 V / 3 |
| ● with degree of pollution 3 / at DC / rated value | 440 V / 3 |
| Conditioned rated short-circuit current Iq (EF001444) | - |
| ● at AC-23 A / at 400 V / at 50/60 Hz / rated value | 7.5 kW |
| ● at AC-23 A / at 690 V / at 50/60 Hz / rated value | 11 kW |
| ● with conventional rated thermal current / per pole | 0.1 W |
| Suitable for distribution board installation (EF007262) | true |
| Number of connected CO contacts / for auxiliary contacts | 0 |
| Number of connected NC contacts / for auxiliary contacts | 0 |
| Number of connected NO contacts / for auxiliary contacts | 0 |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| ● Operating current / at AC-20 A / at 1000 V / maximum | 16 A |
| ● Operating current / at DC-20 A / at 1000 V / maximum | 16 A / 1 |
| ● with conventional rated thermal current / per device | 0.3 W |
| ● Mounting type / front mounting with 4-hole attachment | No |
| ● Mounting type / front mounting with central attachment | No |
| ● Operating current / at AC-21 A / at 400 V / rated value | 16 A |
| ● Operating current / at AC-21 A / at 500 V / rated value | 16 A |
| ● Operating current / at AC-21 A / at 690 V / rated value | 16 A |
| ● Operating current / at AC-22 A / at 400 V / rated value | 16 A |
| ● Operating current / at AC-22 A / at 500 V / rated value | 16 A |
| ● Operating current / at AC-22 A / at 690 V / rated value | 16 A |
| ● Operating current / at AC-23 A / at 400 V / rated value | 16 A |
| ● Operating current / at AC-23 A / at 500 V / rated value | 16 A |
| ● Operating current / at AC-23 A / at 690 V / rated value | 16 A |
| ● Operating current / at DC-21 A / at 220 V / rated value | 16 A / 2 |
| ● at 415 V / by molded case circuit breaker / rated value | 36 kA |
| Number of auxiliary contacts as change-over contact (EF003531) | 3 |
| Continuous current / of upstream fuse / at 1000 V / rated value | 100 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Conditional short-circuit current / with line-side fuse protection | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| let-through current / of the fuse / at 500 V / maximum permissible | 12 500 A |
| ● Operating current / at DC-21 A / at 440 V / rated value / Note | 16 A / 3 |
| ● Operating current / at DC-22 A / at 220 V / rated value / Note | 16 A / 2 |
| ● Operating current / at DC-22 A / at 440 V / rated value / Note | 16 A / 3 |
| ● Operating current / at DC-23 A / at 220 V / rated value / Note | 16 A / 2 |
| ● Operating current / at DC-23 A / at 440 V / rated value / Note | 16 A / 3 |
| ● for combination switch + fuse / at 400 V / maximum permissible | 13 100 A |
| ● for combination switch + fuse / at 500 V / maximum permissible | 13 100 A |
| Type of connectable conductor cross-sections / for copper conductor | |
| let-through current / of the gG fuse / at 690 V / maximum permissible | 14 700 A |
| ● at 690 V / for combination switch + gG fuse / maximum permissible | 11 500 A |
| Compliance with the substance restrictions according to RoHS directive | Since: 24.11.2009 |
| ● for switch disconnector / without fuse link / rated value / minimum | 7 kA |
| Continuous current / of upstream fuse / at 500 V and 690 V / rated value | 100 A |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● I2t value / of the gG/aM SITOR fuse / at 1000 V / maximum permissible | 6 000 A²·s |
| ● Protection class IP / with closed switch / with cover or cable lug cover | IP20 |
| ● at 1000 V / for combination switch +gG/aM SITOR fuse / maximum permissible | 5 057 A |
| ● for rated value of the current / at AC / in hot operating state / per pole | 0.1 W |
| let-through current / of the gG/aM SITOR fuse / at 1000 V / maximum permissible | 4 700 A |
| ● I2t value / of the molded case circuit breaker / at 415 V / maximum permissible | 480 000 A²·s |
| ● Operating current / at AC-22 A / at 400 V / at 50/60 Hz / rated value / maximum | 16 A |
| ● Operating current / at AC-22 A / at 500 V / at 50/60 Hz / rated value / maximum | 16 A |
| ● Operating current / at AC-22 A / at 690 V / at 50/60 Hz / rated value / maximum | 16 A |
| ● Operating current / at AC-23 A / at 400 V / at 50/60 Hz / rated value / maximum | 16 A |
| ● Operating current / at AC-23 A / at 500 V / at 50/60 Hz / rated value / maximum | 16 A |
| ● Operating current / at AC-23 A / at 690 V / at 50/60 Hz / rated value / maximum | 16 A |
| Continuous current / of upstream molded case circuit breaker / at 415 V / rated value | 100 A |
| ● for switch disconnector / at DC 440 V / without fuse link / rated value / minimum | 7 kA |
| ● for switch disconnector / at 1000 V AC / without fuse link / rated value / minimum | 7 kA |
| ● I2t value / with closed switch / for combination switch + fuse / at 400 V / maximum | 34 100 A²·s |
| ● I2t value / with closed switch / for combination switch + fuse / at 500 V / maximum | 34 100 A²·s |
| Display version / for switch position indicator door-coupling rotary operating mechanism | ON-OFF |
| ● at 415 V / for combination switch +molded case circuit breaker / maximum permissible | 12 400 A |
| Short-time withstand current (Icw) / at AC 1000 V/DC 440 V / limited to 1 s / rated value | 3 kA |
| let-through current / of the molded case circuit breaker / at 415 V / maximum permissible | 20 000 A |
| ● I2t value / with closed switch / at 690 V / for combination switch + gG fuse / maximum | 41 190 A²·s |
| General Product ApprovalDeclaration of ConformityShipping ApprovalotherMiscellaneousMiscellaneous | General Product Approval |
| ● I2t value / with closed switch / at 1000 V / for combination switch +gG/aM SITOR fuse / maximum | 2 331 A²·s |
| Overvoltage in percent / relative to the operating voltage / at AC / at 400, 500, 690 V / at 50/60 Hz | 10 % |
| ● I2t value / with closed switch / at 415 V / for combination switch +molded case circuit breaker / maximum | 187 000 A²·s |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
