3KC9501-2

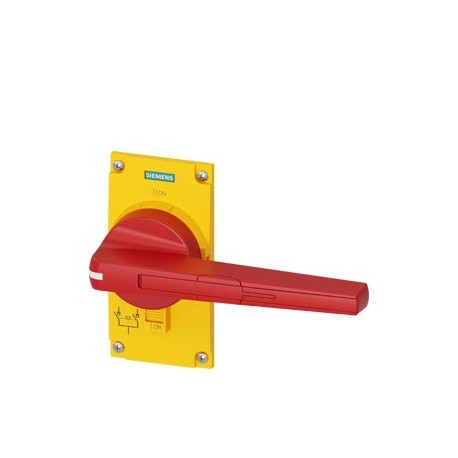

3KC9501-2 SIEMENS Accessories for 3KC0 SZ 5 Direct operating mechanism yellow/red with cover for 3KC0 SZ5 3 ..
$0.00USD
3589 in stock
Key Specifications
:Value
EAN:4001869537870
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869537870 |
| UPC | Not available |
| ETIM | 5 |
| Depth | 140.5 mm |
| Width | 254 mm |
| Height | 180 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| net weight | 586 g |
| Price Group | 12S |
| Metal Factor | None |
| Miscellaneous | |
| Product Group | 5380 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Accessories and Spare Parts |
| Net Weight (kg) | 0,840 Kg |
| Country of origin | China |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Lockable (EF000113) | true |
| Packaging Dimension | 254,00 x 180,00 x 140,50 |
| Product Description | Accessories for 3KC0 SZ 5 Direct operating mechanism yellow/red with cover for 3KC0 SZ5 3 and 4-pole contains 1 unit |
| Product designation | Accessories for transfer switching equipment |
| suitability for use | for 3KC MTSE, size 5 |
| Design of the product | Direct operating mechanism |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type of the driving mechanism | MANUAL OPERATING MECHANISM |
| Product Dimensions (W x L x H) | Not available |
| With axis extension (EF001968) | - |
| With door interlock (EF001969) | true |
| ● Product feature / interlock | Yes |
| Color / of the actuating element | Red/Yellow |
| With handle red/yellow (EF001970) | FALSE |
| protection class IP / on the front | IP30 |
| Article Number (Market Facing Number) | 3KC9501-2 |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| Display version / for switch position indicator | I-O-II |
| ● Product function / can be locked into OFF position | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 21.01.2016 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityShipping ApprovalMiscellaneous | General Product Approval |
Product Description
ACCESSORY FOR 3KC0 BG 5 ACT. DIRECT YELLOW/RED WITH LID FOR 3KC0 TAM. 5 3 AND 4 POLOS INCLUDES 1 UNIT. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
