3KC9000-8TL64

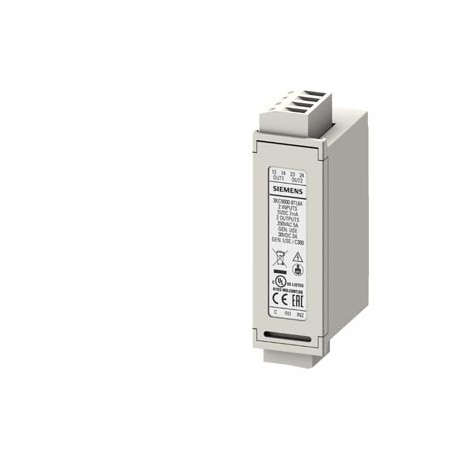

3KC9000-8TL64 SIEMENS ATC6 expansion module 2DI/2DO Relay, Accessory for ATC6300 and ATC6500 pluggable conta..
$0.00USD
4809 in stock
Key Specifications
:
EAN:4001869562551
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869562551 |
| UPC | Not available |
| ETIM | 5 |
| depth | 46.8 mm |
| width | 22 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 64.5 mm |
| Group Code | P360 |
| net weight | 80 g |
| accessories | Accessories for ATC6300 |
| ● maximum | 60 °C |
| ● minimum | -20 °C |
| Confirmation | |
| Date5/9/2022 | |
| Metal Factor | None |
| Miscellaneous | |
| Product Group | 5380 |
| Product class | D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer) |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389091 |
| Product family | SENTRON Transfer Control Devices |
| Net Weight (kg) | 0,074 Kg |
| Country of origin | Italy |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 150,00 x 183,00 x 127,00 |
| Product Description | ATC6 expansion module 2DI/2DO Relay, Accessory for ATC6300 and ATC6500 pluggable contains 2 digital inputs and 2 relay outputs 2 NO contacts |
| product designation | Accessories for transfer control device |
| overvoltage category | 3 |
| design of the product | ATC6 expansion module 2DI / 2DO, relays |
| operating temperature | |
| supply voltage / at DC | 5 V |
| type of voltage supply | Powered through the ATC |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| number of digital inputs | 2 |
| surge voltage resistance | 4 kV |
| Export Control Regulations | AL : N / ECCN : N |
| input delay time / minimum | 50 ms |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| design of the digital output | relais |
| type of electrical connection | Removable/plug-in |
| insulation voltage / rated value | 250 V |
| power loss [W] / at DC / maximum | 1 W |
| ● adjusted as status / maximum | 50 Hz |
| frequency / at the digital inputs | |
| power frequency withstand voltage | 2 kV |
| ● adjusted as counter / maximum | 2 000 Hz |
| ● design of the switching input | Negative |
| consumed current / at DC / maximum | 200 mA |
| protection class IP / on the front | IP20 |
| connectable conductor cross-section | |
| operating voltage / at AC / maximum | 250 V |
| relative humidity / reference value | 80 % |
| ● at DC-1 / at 30 V / rated value | 2 A |
| ambient temperature / during storage | |
| ● at AC-1 / at 250 V / rated value | 5 A |
| Article Number (Market Facing Number) | 3KC9000-8TL64 |
| output current / at the relay outputs | |
| ● at AC-15 / at 250 V / rated value | 0.75 A |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of accessory/spare part (EF000215) | - |
| product feature / of enclosure material | Polyamide |
| reference code / according to EN 61346-2 | K |
| input current / with signal <0> / maximum | 7 mA |
| ● at DC / at 30 V / according to UL 508 | 2 A |
| type of contact rating / according to NEMA | C300 |
| ● at AC / at 250 V / according to UL 508 | 5 A |
| voltage / at auxiliary power supply / at DC | 5 V |
| overvoltage category / according to IEC 61010 | 3 |
| switching capacity current / at the relay outputs | |
| Region Specific PriceGroup / Headquarter Price Group | 14N / 1CL |
| number of connected NO contacts / for auxiliary contacts | 2 |
| temperature of conductor / according to UL 508 / maximum | 60/75 °C |
| AWG number / as coded connectable conductor cross section | |
| connectable conductor cross-section / according to UL 508 | |
| number of outputs / as contact-affected switching element | 2 |
| electrical endurance (switching cycles) / of the relay outputs | 100 000 |
| mechanical service life (switching cycles) / of the relay outputs | 1 000 000 |
| tightening torque [lbf·in] / with screw-type terminals / maximum | 4.5 lbf·in |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| operating conditions for digital inputs / auxiliary power supply available | Yes |
| AWG number / as coded connectable conductor cross section / according to UL 508 | |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousUK Declaration of ConformityotherMiscellaneous | General Product Approval |
Product Description
ACCESSORY FOR ATC6300;. Manufactured to customer specifications. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
