3KC9000-8TL62

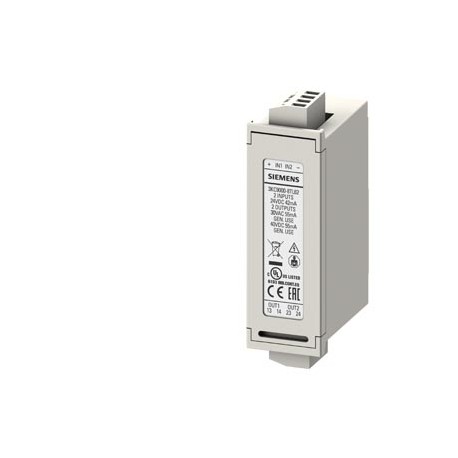

3KC9000-8TL62 SIEMENS ATC6 expansion module 2DI/2O SSR, Accessory for ATC6300 and ATC6500 pluggable contains..
$0.00USD
4979 in stock
Key Specifications
:
EAN:4001869562537
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869562537 |
| UPC | Not available |
| ETIM | 5 |
| depth | 46.8 mm |
| width | 22 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 64.5 mm |
| Group Code | P360 |
| net weight | 58 g |
| accessories | Accessories for ATC6300 |
| ● maximum | 60 °C |
| ● minimum | -20 °C |
| Confirmation | |
| Date5/8/2022 | |
| Metal Factor | None |
| Miscellaneous | |
| Product Group | 5380 |
| Product class | D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer) |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389091 |
| Product family | SENTRON Transfer Control Devices |
| Net Weight (kg) | 0,062 Kg |
| Country of origin | Italy |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 150,00 x 183,00 x 127,00 |
| Product Description | ATC6 expansion module 2DI/2O SSR, Accessory for ATC6300 and ATC6500 pluggable contains 2 digital inputs and 2 solid-state compatible digital outputs 2 NO contacts |
| product designation | Accessories for transfer control device |
| overvoltage category | 3 |
| design of the product | ATC6 expansion module 2DI / 2DO, SSR |
| operating temperature | |
| supply voltage / at DC | 5 V |
| type of voltage supply | Powered through the ATC |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| number of digital inputs | 2 |
| surge voltage resistance | 4 kV |
| Export Control Regulations | AL : N / ECCN : N |
| input delay time / minimum | 50 ms |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| design of the digital output | Solid-state relay (opto-MOSFET) |
| type of electrical connection | Removable/plug-in |
| power loss [W] / at DC / maximum | 1.25 W |
| ● adjusted as status / maximum | 50 Hz |
| frequency / at the digital inputs | |
| power frequency withstand voltage | 2 kV |
| ● adjusted as counter / maximum | 2 000 Hz |
| ● design of the switching input | Positive or negative |
| consumed current / at DC / maximum | 250 mA |
| protection class IP / on the front | IP20 |
| connectable conductor cross-section | |
| relative humidity / reference value | 80 % |
| ambient temperature / during storage | |
| Article Number (Market Facing Number) | 3KC9000-8TL62 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| output current / at electronic outputs | |
| Type of accessory/spare part (EF000215) | - |
| product feature / of enclosure material | Polyamide |
| reference code / according to EN 61346-2 | K |
| input current / with signal <0> / maximum | 7 mA |
| ● at AC / at 30 V / at 60 °C / maximum | 55 mA |
| ● at DC / at 40 V / at 60 °C / maximum | 55 mA |
| voltage / at auxiliary power supply / at DC | 24 V |
| current / at auxiliary power supply / maximum | 42 mA |
| overvoltage category / according to IEC 61010 | 3 |
| Region Specific PriceGroup / Headquarter Price Group | 14N / 1CL |
| number of connected NO contacts / for auxiliary contacts | 2 |
| temperature of conductor / according to UL 508 / maximum | 60/75 °C |
| AWG number / as coded connectable conductor cross section | |
| connectable conductor cross-section / according to UL 508 | |
| tightening torque [lbf·in] / with screw-type terminals / maximum | 1.7 lbf·in |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| operating conditions for digital inputs / auxiliary power supply available | Yes |
| AWG number / as coded connectable conductor cross section / according to UL 508 | |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousUK Declaration of ConformityotherMiscellaneous | General Product Approval |
Product Description
ACCESSORY FOR ATC6300;. Manufactured to customer specifications. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
