3KC8358-0JA22-0GA3

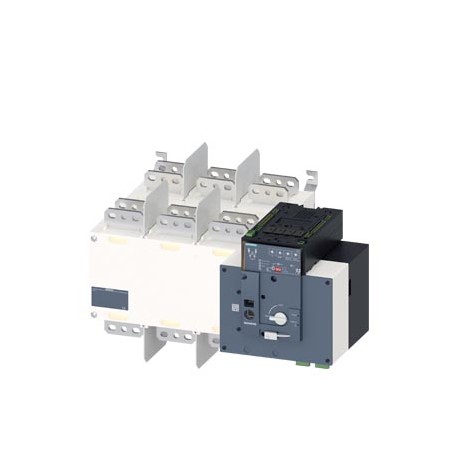

3KC8358-0JA22-0GA3 SIEMENS SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 3- pole, Iu:..
$0.00USD
4225 in stock
Key Specifications
:Value
EAN:4001869532974
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869532974 |
| UPC | Not available |
| ETIM | 5 |
| Depth | 569 mm |
| Width | 596 mm |
| Height | 380 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P360 |
| net weight | 51 800 g |
| Price Group | 12S |
| ● maximum | 332 V |
| ● minimum | 166 V |
| Metal Factor | None |
| Relay design | 2 relays: 2NO, 2A 250 VAC or 2A 24 VDC; 1 relay: 1CO, 2A 250 VAC or 2A 24 VDC |
| Mounting type | screw fixing |
| Product Group | 5380 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Power loss [W] | |
| Product family | ATE |
| Type of device | fixed mounting |
| Net Weight (kg) | 67,400 Kg |
| number of poles | 3 |
| ● Main switch | Yes |
| ● motor drive | No |
| ● rated value | 1 000 V |
| Design of handle | Handle |
| Input delay time | 0.046 s |
| Country of origin | France |
| Operating current | |
| Operating voltage | |
| ● safety switch | Yes |
| Continuous current | |
| Insulation voltage | |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Degree of pollution | 3 |
| Measuring procedure | True RMS |
| Packaging Dimension | 600,00 x 800,00 x 730,00 |
| Product Description | SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 3- pole, Iu: 2500 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 1250 A, screw mounting, motorized operating mechanism, at the right end, long handle, busbar connection |
| Product designation | 3KC transfer switching equipment |
| Protection class IP | IP00 |
| Suitability for use | |
| ● Voltage trigger | No |
| overvoltage category | III |
| Design of the product | automatic |
| ● for copper busbar | 2x100x10 |
| Supply voltage / at AC | |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● switch disconnector | Yes |
| General Product Approval | Declaration of Conformity |
| Interlockable (EF006281) | true |
| Pulse duration / minimum | 0.06 s |
| number of digital inputs | 11 |
| ● EMERGENCY OFF switch | No |
| Export Control Regulations | AL : N / ECCN : N |
| Number of monitored phases | 3 |
| Number of poles (EF001391) | 3 |
| Product feature / interlock | Yes |
| Standard lead time ex-works | 23 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 40 °C / rated value | 2 500 A |
| ● at 50 °C / rated value | 2 500 A |
| ● at 60 °C / rated value | 2 500 A |
| ● at 70 °C / rated value | 1 750 A |
| Package size unit of measure | MM |
| Product extension / optional | |
| Design of the switching input | Connected with control terminal |
| Number of switches (EF005586) | - |
| Type of the driving mechanism | motorized operating mechanism |
| ● between L and L / maximum | 600 V |
| ● between L and L / minimum | 30 V |
| ● between L and N / maximum | 332 V |
| ● between L and N / minimum | 30 V |
| ● maintenance/repair switch | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Product Dimensions (W x L x H) | Not available |
| Relative measurement deviation | 1 % |
| Motor drive optional (EF007386) | false |
| Operating current / rated value | 2 500 A |
| Colour control element (EF007167) | Black |
| Design of the operating mechanism | Long rotary knob |
| Input impedance / between L and L | 12 MΩ |
| Motor drive integrated (EF006697) | true |
| Operating frequency / rated value | |
| Version as main switch (EF006981) | true |
| ● mounting type / rail mounting | No |
| Rated operating voltage (EF001435) | ['166.0', '332.0'] |
| Type of control element (EF006976) | Long turning handle |
| ● at AC / at 230 V / Rated value | 1.5 A |
| Switching power at 400 V (EF009166) | - |
| Version as safety switch (EF006985) | true |
| Voltage release optional (EF007491) | false |
| Ambient temperature / during storage | |
| Product extension / Auxiliary switch | No |
| Article Number (Market Facing Number) | 3KC8358-0JA22-0GA3 |
| Rated permanent current Iu (EF001389) | 2500.0 |
| ● at AC / at 50/60 Hz / rated value | 415 V |
| Ambient temperature / during operation | |
| Degree of protection (NEMA) (EF011959) | - |
| Suitable for floor mounting (EF007243) | FALSE |
| Version as reversing switch (EF009408) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● protection class IP / on the front | IP00 |
| Operating current / at AC / rated value | 2 500 A |
| ● at AC-21 B / at 415 V / rated value | 2 500 A |
| ● at AC-21 B / at 500 V / rated value | 2 000 A |
| ● at AC-21 B / at 690 V / rated value | 2 000 A |
| ● at AC-22 B / at 415 V / rated value | 2 500 A |
| ● at AC-23 B / at 415 V / rated value | 1 600 A |
| ● at AC-31 B / at 415 V / rated value | 2 500 A |
| ● at AC-32 B / at 415 V / rated value | 2 000 A |
| ● at AC-33 B / at 415 V / rated value | 1 250 A |
| ● at AC-33 iB / at 415 V / rated value | 2 000 A |
| Type of the driving mechanism / motor drive | Yes |
| ● Reference code / acc. to DIN EN 81346-2 | Q |
| ● reference code / acc. to DIN EN 61346-2 | Q |
| Position / of the switch operating mechanism | at the right end |
| Type of connectable conductor cross-sections | |
| Max. rated operation voltage Ue AC (EF007355) | 415 |
| Suitable for front mounting 4-hole (EF007247) | false |
| Suitable for front mounting centre (EF007248) | false |
| Suitable for intermediate mounting (EF007264) | false |
| Number of CO contacts / for auxiliary contacts | 0 |
| Number of NC contacts / for auxiliary contacts | 0 |
| Number of NO contacts / for auxiliary contacts | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | - |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Rated operation power at AC-23, 400 V (EF007027) | - |
| Rated short-time withstand current lcw (EF007050) | 50.0 |
| Version as emergency stop installation (EF006959) | false |
| Version as maintenance-/service switch (EF006986) | true |
| Rated permanent current at AC-21, 400 V (EF009165) | - |
| Rated permanent current at AC-23, 400 V (EF011777) | - |
| Voltage measuring range / at the measurement inputs | |
| Conditioned rated short-circuit current Iq (EF001444) | - |
| ● with conventional rated thermal current / per pole | 255 W |
| Suitable for distribution board installation (EF007262) | false |
| Number of connected CO contacts / for auxiliary contacts | 4 |
| Number of connected NC contacts / for auxiliary contacts | 0 |
| Number of connected NO contacts / for auxiliary contacts | 3 |
| Type of electrical connection of main circuit (EF006819) | Rail connection |
| ● with conventional rated thermal current / per device | 765 W |
| ● Mounting type / front mounting with 4-hole attachment | No |
| ● Mounting type / front mounting with central attachment | No |
| Input current / at digital input / with signal <0> / maximum | 2.1 mA |
| ● Type of electrical connection / for main current circuit | busbar connection |
| ● type of electrical connection / of the inputs and outputs | Removable/insertable |
| General Product ApprovalDeclaration of ConformityMiscellaneous | General Product Approval |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Display version / for switch position indicator manual operation | I - O - II |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Short-circuit current making capacity (Icm) / for switch disconnector | |
| Compliance with the substance restrictions according to RoHS directive | Since: 30.04.2016 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● Protection class IP / with closed switch / with cover or cable lug cover | IP20 |
| ● for rated value of the current / at AC / in hot operating state / per pole | 255 W |
| ● at AC 415 V / without fuse link / acc. to IEC 60947-3 / rated value / minimum | 105 kA |
| Mechanical service life (switching cycles) / for function sequence O-I-O / typical | 1 500 |
| ● at AC 415 V / without fuse link / acc. to IEC 60947-6-1 / rated value / minimum | 105 kA |
Product Description
TRANSF SWITCH. AUTOMATIC ATSE, 2500A, 3 POLES FRONT DRIVE BASE UNIT WITH LEVER 2X POWER 230VAC FLAT CONNECTIONS. Manufactured to order. Non-Cancelable Non-Returnable.
