3KC3430-2AA22-0AA3

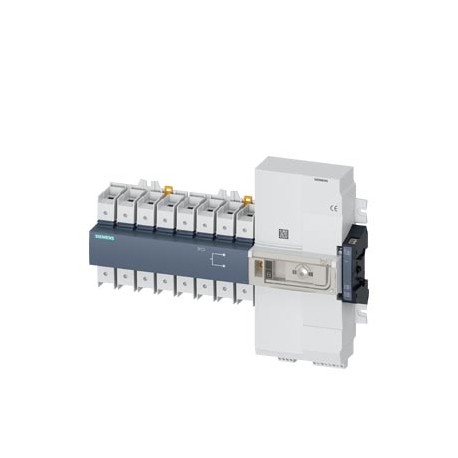

3KC3430-2AA22-0AA3 SIEMENS SENTRON, transfer switching equipment 3KC, remotely operated, RTSE, 4-pole, Iu: 1..
$0.00USD
4080 in stock
Key Specifications
:Value
EAN:4001869527383
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869527383 |
| UPC | Not available |
| ETIM | 5 |
| Depth | 73.5 mm |
| Width | 340 mm |
| Height | 245 mm |
| UNSPSC | 15 |
| eClass | 6 |
| I2t value | |
| ● solid | 1x(1070 mm²) |
| Group Code | P360 |
| net weight | 3 474 g |
| Price Group | 12S |
| ● maximum | 288 V |
| ● minimum | 176 V |
| Metal Factor | None |
| ● stranded | 1x(1070 mm²) |
| Mounting type | Screw fixing and standard rail mounting 35 mm |
| Product Group | 5380 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Power loss [W] | |
| Product family | Basic Devices |
| Type of device | fixed mounting |
| Net Weight (kg) | 4,309 Kg |
| Operating power | |
| number of poles | 4 |
| ● Main switch | Yes |
| ● motor drive | No |
| ● rated value | 800 V |
| Design of handle | Handle |
| Input delay time | 0.03 s |
| Country of origin | Tunisia |
| Operating current | |
| Operating voltage | |
| ● safety switch | No |
| Continuous current | |
| Insulation voltage | |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Degree of pollution | 3 |
| Packaging Dimension | 300,00 x 400,00 x 120,00 |
| Product Description | SENTRON, transfer switching equipment 3KC, remotely operated, RTSE, 4-pole, Iu: 100 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 100 A, Ie at AC-23 A at 690 V: 80 A, screw and standard mounting rail on 35 mm, motorized operating mechanism, at the right end, long handle, box terminal |
| Product designation | 3KC transfer switching equipment |
| Protection class IP | IP00 |
| Suitability for use | |
| ● Voltage trigger | No |
| overvoltage category | III |
| Design of the product | remote-controlled |
| Supply voltage / at AC | |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● switch disconnector | Yes |
| General Product Approval | Declaration of Conformity |
| Interlockable (EF006281) | true |
| Pulse duration / minimum | 0.06 s |
| number of digital inputs | 3 |
| ● EMERGENCY OFF switch | No |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 4 |
| Product feature / interlock | Yes |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 40 °C / rated value | 100 A |
| ● at 50 °C / rated value | 100 A |
| ● at 60 °C / rated value | 80 A |
| ● at 70 °C / rated value | 63 A |
| Package size unit of measure | MM |
| Product extension / optional | |
| Design of the switching input | Connected with control terminal |
| Number of switches (EF005586) | - |
| Type of the driving mechanism | motorized operating mechanism |
| ● maintenance/repair switch | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Product Dimensions (W x L x H) | Not available |
| Motor drive optional (EF007386) | false |
| Operating current / rated value | 100 A |
| Colour control element (EF007167) | Black |
| Design of the operating mechanism | Long rotary knob |
| Motor drive integrated (EF006697) | true |
| Operating frequency / rated value | |
| Version as main switch (EF006981) | true |
| ● mounting type / rail mounting | Yes |
| Rated operating voltage (EF001435) | ['176.0', '288.0'] |
| Type of control element (EF006976) | Long turning handle |
| ● at AC / at 230 V / Rated value | 0.03 A |
| Switching power at 400 V (EF009166) | - |
| Version as safety switch (EF006985) | false |
| Voltage release optional (EF007491) | false |
| Ambient temperature / during storage | |
| Product extension / Auxiliary switch | Yes |
| Article Number (Market Facing Number) | 3KC3430-2AA22-0AA3 |
| Rated permanent current Iu (EF001389) | 100.0 |
| ● at AC / at 50/60 Hz / rated value | 415 V |
| ● at AC-21 / at 690 V / rated value | 100 A |
| Ambient temperature / during operation | |
| Degree of protection (NEMA) (EF011959) | Other |
| Suitable for floor mounting (EF007243) | FALSE |
| Version as reversing switch (EF009408) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● protection class IP / on the front | IP20 |
| Operating current / at AC / rated value | 100 A |
| ● at 415 V / by gG fuse / rated value | 50 kA |
| ● at AC-21 A / at 415 V / rated value | 100 A |
| ● at AC-21 B / at 415 V / rated value | 100 A |
| ● at AC-21 B / at 690 V / rated value | 100 A |
| ● at AC-22 A / at 415 V / rated value | 100 A |
| ● at AC-22 A / at 690 V / rated value | 80 A |
| ● at AC-22 B / at 415 V / rated value | 100 A |
| ● at AC-22 B / at 690 V / rated value | 80 A |
| ● at AC-23 A / at 415 V / rated value | 100 A |
| ● at AC-23 A / at 690 V / rated value | 80 A |
| ● at AC-23 B / at 415 V / rated value | 100 A |
| ● at AC-23 B / at 690 V / rated value | 80 A |
| ● at AC-31 A / at 415 V / rated value | 100 A |
| ● at AC-31 B / at 415 V / rated value | 100 A |
| ● at AC-32 A / at 415 V / rated value | 100 A |
| ● at AC-32 B / at 415 V / rated value | 100 A |
| ● at AC-33 B / at 415 V / rated value | 100 A |
| ● at AC-33 iB / at 415 V / rated value | 100 A |
| Type of the driving mechanism / motor drive | Yes |
| ● Reference code / acc. to DIN EN 81346-2 | Q |
| ● reference code / acc. to DIN EN 61346-2 | Q |
| Position / of the switch operating mechanism | at the right end |
| Max. rated operation voltage Ue AC (EF007355) | 415 |
| Suitable for front mounting 4-hole (EF007247) | false |
| Suitable for front mounting centre (EF007248) | false |
| Suitable for intermediate mounting (EF007264) | true |
| Number of CO contacts / for auxiliary contacts | 3 |
| Number of NC contacts / for auxiliary contacts | 0 |
| Number of NO contacts / for auxiliary contacts | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | - |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Rated operation power at AC-23, 400 V (EF007027) | - |
| ● of the fuse / at 415 V / maximum permissible | 61 300 A²·s |
| Rated short-time withstand current lcw (EF007050) | 4.0 |
| Version as emergency stop installation (EF006959) | false |
| Version as maintenance-/service switch (EF006986) | true |
| Operating current / of upstream fuse / rated value | 100 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 100 |
| Rated permanent current at AC-23, 400 V (EF011777) | - |
| ● with degree of pollution 3 / at DC / rated value | 800 V |
| Conditioned rated short-circuit current Iq (EF001444) | - |
| ● at AC-23 A / at 690 V / at 50/60 Hz / rated value | 75 kW |
| ● with conventional rated thermal current / per pole | 4 W |
| Suitable for distribution board installation (EF007262) | true |
| Number of connected CO contacts / for auxiliary contacts | 3 |
| Number of connected NC contacts / for auxiliary contacts | 0 |
| Number of connected NO contacts / for auxiliary contacts | 0 |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| ● with conventional rated thermal current / per device | 16 W |
| ● Mounting type / front mounting with 4-hole attachment | No |
| ● Mounting type / front mounting with central attachment | No |
| Input current / at digital input / with signal <0> / maximum | 0.5 mA |
| ● Type of electrical connection / for main current circuit | box terminal |
| ● type of electrical connection / of the inputs and outputs | Removable/insertable |
| General Product ApprovalDeclaration of ConformityMiscellaneous | General Product Approval |
| Number of auxiliary contacts as change-over contact (EF003531) | 3 |
| ● at 415 V / by gG fuse / acc. to IEC 60947-6-1 / rated value | 50 kA |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Conditional short-circuit current / with line-side fuse protection | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Type of connectable conductor cross-sections / for copper conductor | |
| Short-circuit current making capacity (Icm) / for switch disconnector | |
| Compliance with the substance restrictions according to RoHS directive | Since: 31.07.2015 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● with closed switch / for combination switch + fuse / at 415 V / maximum | 61 300 A²·s |
| ● Protection class IP / with closed switch / with cover or cable lug cover | IP20 |
| ● for rated value of the current / at AC / in hot operating state / per pole | 4 W |
| ● at AC 415 V / without fuse link / acc. to IEC 60947-3 / rated value / minimum | 5.88 kA |
| Mechanical service life (switching cycles) / for function sequence O-I-O / typical | 8 500 |
Product Description
RTSE RTSE TRANSFER SWITCH, 100A, 4 POLES FRONT ACCONAMIENTO BASE UNIT WITH HANDLE 2X POWER 230V AC FRAME TERMINALS. Cancelations and returns limited. Consult conditions.
