In Stock Hot Product
3G3RX2-A2022

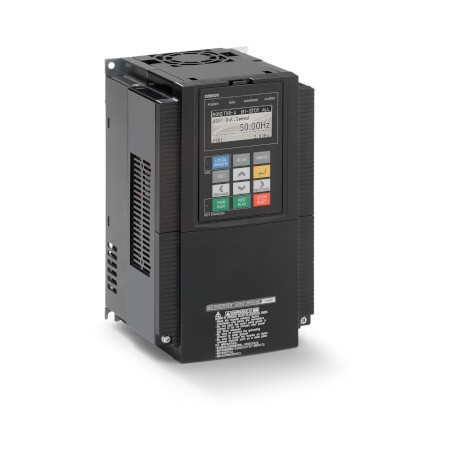

3G3RX2-A2022 3G3R9204F 3G3RX2A2022 OMRON Inverter RX2, 200 V, VLD: 15,6 A / 3,7 kW, LD: 12 A / 3,7 kW, ND: 1..
$0.00USD
3597 in stock
Key Specifications
():AX-REM00K4035-IE
Finless type:
Built in EMC filter:
Drive control method:Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | AX-REM00K4035-IE |
| Finless type | |
| Built in EMC filter | |
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage | 230 V three phase |
| Communication port(s) | Serial RS-485, USB |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication option(s) | MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave |
| Product Depth (unpacked) | 140 mm |
| Product Width (unpacked) | 150 mm |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 255 mm |
| Product Weight (unpacked) | 4000 g |
| Max. motor output at constant torque | 2.2 kW |
| Max. motor output at variable torque | 3.7 kW |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
