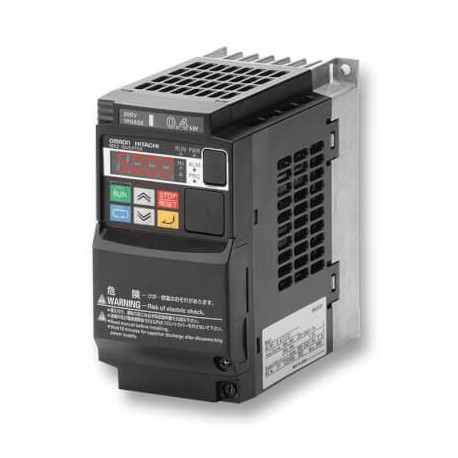

3G3MX2-A2022-E
3G3MX2-A2022-E 3G3M9290F 379067 OMRON MX2 Three-phase, 200VAC, 2.2/3.0KW, 11.0/12.0A(HD/ND), vector without ..
$0.00USD
3300 in stock
Key Specifications
():AX-FIM2020-SE-V1
Depth:170.5 mm
Width:108 mm
Height:128 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | AX-FIM2020-SE-V1 |
| Depth | 170.5 mm |
| Width | 108 mm |
| Height | 128 mm |
| Weight | 1800 g |
| Finless type | |
| Built in EMC filter | |
| Drive supply voltage | 230 V three phase |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication option(s) | CompoNet Slave, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, PROFIBUS DP Slave |
| Inverter control method | Open loop V/f, Open loop vector |
| Degree of protection (IP) | IP20 |
| Max. motor output at constant torque (HD) | 2.2 kW |
| Max. motor output at variable torque (ND) | 3 kW |
Product Description
MX inverter drive, 2.2/3.0 kW (HD/ND), 11.0/12.00 A (HD/ND), 200 VAC, 3~ input, sensorless vector, max. output freq. 580Hz
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
