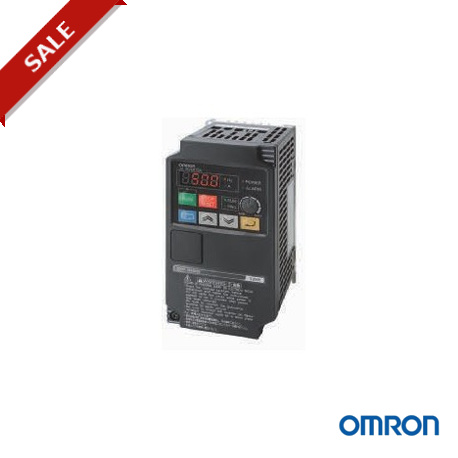

3G3JX-A2015-E

JX Frequency invertersCompact and completeWith the RFI filter built-in, and the communications integrated as standard, the JXprovides a compact and complete solution to a whole range of simple applications,such as conveyor control. The RS485 Modbus is built into the RJ45 port of the inverter front, making it very easy to add inverters into the network without any extra option boards. Therefore, saving costs and space.• V/f controlled inverter• Side by side mounting• EMC filter built-in• RS485 Modbus built-in• Overload detection function (150% during 60 s)• PID• Micro-surge voltage suppression• Automatic energy savingOrdering informationPower supplyMCCBAAC reactorB DUSB cable CX-DriveCX-OneB BA * FilterRemote operator extension cableLCD 5 lines remote operatorC C C CJXAChokeADC reactorMotorGroundAOutput reactor* Only needed for 3 phase 200 V or to comply C1 on 3 phase 400 V models166JX Frequency inverters3G3JXSpecifications Order codeVoltage class Max. applicable motor output kW Rated output current (A) StandardSingle-phase 200 V 0.2 1.4 3G3JX-AB002-EF0.4 2.6 3G3JX-AB004-EF0.75 4 3G3JX-AB007-EF1.5 7.1 3G3JX-AB015-EF2.2 10 3G3JX-AB022-EF Three-phase 200 V 0.2 1.4 3G3JX-A2002-E0.4 2.6 3G3JX-A2004-E0.75 4 3G3JX-A2007-E1.5 7.1 3G3JX-A2015-E2.2 10 3G3JX-A2022-E3.7 15.9 3G3JX-A2037-E5.5 24 3G3JX-A2055-E7.5 32 3G3JX-A2075-E Three-phase 400 V 0.4 1.5 3G3JX-A4004-EF0.75 2.5 3G3JX-A4007-EF1.5 3.8 3G3JX-A4015-EF2.2 5.5 3G3JX-A4022-EF4.0 8.6 3G3JX-A4040-EF5.5 13 3G3JXA4055-EF7.5 16 3G3JXA4075-EFA Line filtersInverter Line filter RasmiVoltage Model 3G3JX-_ Rated current (A) Weight (kg) Order code1-Phase 200 VAC AB002/AB004 6 0.5 AX-FIJ1006-RE AB007 10 0.6 AX-FIJ1010-RE AB015/AB022 26 0.8 AX-FIJ1026-RE3-Phase 200 VAC A2002/A2004/A2007 6 1.0 AX-FIJ2006-RE A2015/A2022/A2037 20 1.3 AX-FIJ2020-RE A2055/A2075 40 2.3 AX-FIJ2040-RE3-Phase 400 VAC A4004/A4007 /A4015 5 0.9 AX-FIJ3005-RE A4022 /A4040 11 1.1 AX-FIJ3011-REA4055/A4075 20 1.7 AX-FIJ3020-REA Input AC ReactorsInverter AC ReactorVoltage Model 3G3JX-_ Order code3-Phase 200 VAC A2002/A2004/A2007 AX-RAI02800080-DE A2015/A2022/A2037 AX-RAI00880175-DE A2055/A2075 AX-RAI00350335-DE1-Phase 200 VAC AB002/AB004 Under developmentAB007AB015/AB0223-Phase 400 VAC A4004/A4007/A4015 AX-RAI07700042-DE A4022/A4040 AX-RAI03500090-DE A4055/A4075 AX-RAI01300170-DEA DC Reactors200 V single-phase 200 V three-phase 400 V three-phaseInverter Order code Inverter Order code Inverter Order code3G3JX-AB002 AX-RC10700032-DE 3G3JX-A2002 AX-RC21400016-DE –3G3JX-AB004 AX-RC06750061-DE 3G3JX-A2004 AX-RC10700032-DE 3G3JX-A4004 AX-RC43000020-DE3G3JX-AB007 AX-RC03510093-DE 3G3JX-A2007 AX-RC06750061-DE 3G3JX-A4007 AX-RC27000030-DE3G3JX-AB015 AX-RC02510138-DE 3G3JX-A2015 AX-RC03510093-DE 3G3JX-A4015 AX-RC14000047-DE3G3JX-AB022 AX-RC01600223-DE 3G3JX-A2022 AX-RC02510138-DE 3G3JX-A4022 AX-RC10100069-DE– 3G3JX-A2037 AX-RC01600223-DE 3G3JX-A4040 AX-RC06400116-DE3G3JX-A2055 AX-RC01110309-DE 3G3JX-A4055 AX-RC04410167-DE3G3JX-A2075 AX-RC00840437-DE 3G3JX-A4075 AX-RC03350219-DE167JX Frequency invertersA ChokesDiameter Description Order codeB AccessoriesTypes Description Functions Order code21 For 2.2 KW motors or below AX-FER2102-RE25 For 7.5 KW motors or below AX-FER2515-REA Output AC ReactorsInverter AC ReactorVoltage Model 3G3JX-@ Order codeLCD remote operatorRemote operator cableLED remote opera- tor5 Line LCD remote operator with copy function, cablelength max. 3 m.*13 meters cable for connecting remote operatorLED remote operator, cable length max. 3 mAX-OP05-E3G3AX-CAJOP300-EE3G3AX-OP01200 VAC A2001/A2002/A2004AX-RAO11500026-DEMounting kit for LED Mounting kit for LED operator4X-KITMINIAB001/AB002/AB004operatoron panelA2007/AB007 AX-RAO07600042-DEUSB converter / USB RJ45 to USB connection cable 3G3AX-PCACN2A2015/AB015 AX-RAO04100075-DE A2022/AB022 AX-RAO03000105-DEA2037 AX-RAO01830160-DEcableRJ45 T-Branch cable T cable for RS-422 connectionUSB-convertercable3G3AX-CTB020-EEA2055 AX-RAO01150220-DE A2075 AX-RAO00950320-DERJ45 Terminator resistorTerminator resistor for RS-422 connection3G3AX-CTR150-EE400 VAC A4004/A4007/A4015 AX-RAO16300038-DE A4022 AX-RAO11800053-DE A4040 AX-RAO07300080-DE A4055 AX-RAO04600110-DE A4075 AX-RAO03600160-DE*1 Please note, for 3G3JX inverters models, the operator will only display 2 lines of text.D Computer softwareDescription Installation Order codeComputer software Configuration and monitoring CX-Drive software toolComputer software Configuration and monitoring CX-One software toolComputer software Software tool for Energy Sav- ing calculation€SaverSpecifications200 V classSingle-phase: 3G3JX_ AB002 AB004 AB007 AB015 AB022 - - -Three-phase: 3G3JX_ A2002 A2004 A2007 A2015 A2022 A2037 A2055 A2075Motor kW*1Power supplyApplicable motor capacity 0.2 0.4 0.75 1.5 2.2 3.7 5.5 7.5Inverter capacity kVA 200 V 0.4 0.9 1.3 2.4 3.4 5.5 8.3 11.0240 V 0.5 1.0 1.6 2.9 4.1 6.6 9.9 13.3Rated output current (A) 1.4 2.6 4.0 7.1 10.0 15.9 24.0 32.0Max. output voltage Proportional to input voltage: 0 to 240 VMax. output frequency 400 HzRated input voltageand frequency Single-phase 200 to 240 V 50/60 HzThree-phase 200 to 240 V 50/60 HzRated input current (A) Three-phase 200 V 1.8 3.4 5.2 9.3 13.0 20.0 30.0 40.0Rated input current (A) Single-phase 200 V 3.1 5.8 9.0 16.0 22.5 – – –Allowable voltage fluctuation –15% to 10%Allowable frequency fluctuation 5%Built-in filter EMC filter (C1 single phase)Braking torqueAt short-time decelerationAt capacitor feedbackApprox. 50% 50% for3-phase20% to 40% for1-phaseApprox 20% to 40% Approx 20%Cooling method Self cooling Forced-air-cooling*1 Based on a standard 3-Phase standard motor.400 V classThree-phase: 3G3JX_ A4004 A4007 A4015 A4022 A4040 A4055 A4075Motor kW*1Power supplyApplicable motor capacity 0.4 0.75 1.5 2.2 4.0 5.5 7.5Inverter capacity kVA 380 V 0.9 1.6 2.5 3.6 5.6 8.5 10.5480 V 1.2 2.0 3.1 4.5 7.1 10.8 13.3Rated output current (A) 1.5 2.5 3.8 5.5 8.6 13.0 16.0Max. output voltage Proportional to input voltage: 0 to 480 VMax. output frequency 400 HzRated input voltageand frequency 3-phase 380 to 480 V 50/60 HzRated input current (A) 2.0 3.3 5.0 7.0 11.0 16.5 20.0Allowable voltage fluctuation –15% to 10%Allowable frequency fluctuation 5%Built-in filter EMC filter C2 classBraking torqueAt short-time decelerationAt capacitor feedbackApprox. 50% Approx. 20% to 40% Approx. 20%Cooling method Self cooling Forced-air-cooling*1 Based on a standard 3-Phase standard motor.168JX Frequency invertersDimensionsVoltage class Max. applicable motor output Inverter model Dimensions in mmkW H W D Weight (kg)Single-phase 200 V 0.2 3G3JX-AB002 155 80 95.5 0.80.4 3G3JX-AB004 109.5 0.90.75 3G3JX-AB007 189 110 130.5 1.51.5 3G3JX-AB015 157.5 2.32.2 3G3JX-AB022 2.4Three-phase 200 V 0.2 3G3JX-A2002 155 80 95.5 0.80.4 3G3JX-A2004 109.5 0.90.75 3G3JX-A2007 132.5 1.11.5 3G3JX-A2015 189 110 157.5 2.22.2 3G3JX-A2022 2.43.7 3G3JX-A20375.5 3G3JX-A2055 250 180 167.5 4.27.5 3G3JX-A2075Three-phase 400 V 0.4 3G3JX-A4004 189 110 130.5 1.50.75 3G3JX-A4007 157.5 2.31.5 3G3JX-A4015 2.42.2 3G3JX-A40224.0 3G3JX-A40405.5 3G3JX-A4055 250 180 167.5 4.27.5 3G3JX-A4075HDW169
