2CSF204001R3950

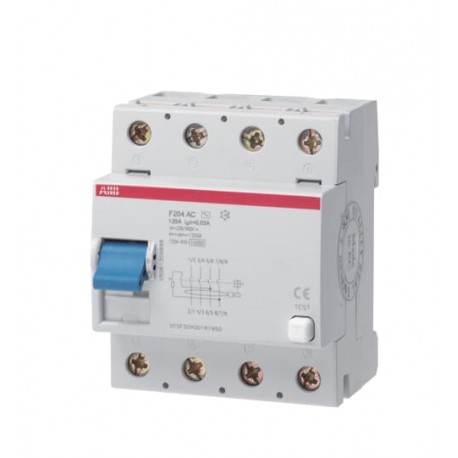

F204 AC-125/0,3 2CSF204001R3950 ABB Residual Current Circuit Breaker 4P 125A AC 300mA
$0.00USD
4877 in stock
Key Specifications
Customs Tariff Number::85363030
Minimum Order Quantity::1 piece
Standards: (Dimensions):IEC/EN 61008
Power Loss: (Dimensions):at Rated Operating Conditions per Pole 7.5 W
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Customs Tariff Number: | 85363030 |
| Minimum Order Quantity: | 1 piece |
| Standards: (Dimensions) | IEC/EN 61008 |
| Power Loss: (Dimensions) | at Rated Operating Conditions per Pole 7.5 W |
| RoHS Status: (Technical) | Following EU Directive 2011/65/EU |
| Number of Poles: (Dimensions) | 4 |
| ETIM 4: (Container Information) | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 5: (Container Information) | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 6: (Container Information) | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 7: (Container Information) | EC000003 - Residual current circuit breaker (RCCB) |
| Rated Current (In): (Dimensions) | 125 A |
| RoHS Information: (Environmental) | 2CSC423001K2702 |
| Ambient Air Temperature: (Technical) | Operation -25 ... +40 °CStorage -40 ... +70 °C |
| Instructions and Manuals: (Ordering) | Manual sheet inside the box |
| Rated Residual Current: (Dimensions) | 300 mA |
| Operating Characteristic: (Dimensions) | Instantaneous |
| Product Net Width: (Popular Downloads) | 0.072 m |
| Type of Residual Current: (Dimensions) | AC type |
| Product Net Height: (Popular Downloads) | 0.085 m |
| Product Net Weight: (Popular Downloads) | 0.500 kg |
| Instructions and Manuals: (Environmental) | Manual sheet inside the box |
| Environmental Information: (Environmental) | Refer to RoHS |
| Position of Neutral Terminals: (Dimensions) | Right |
| Data Sheet, Technical Information: (Ordering) | 9AKK107046A0424 |
| Declaration of Conformity - CE: (Environmental) | 9AKK106713A5602 |
| Product Net Depth / Length: (Popular Downloads) | 0.069 m |
| Object Classification Code: (Container Information) | Q |
| Package Level 1 EAN: (Certificates and Declarations (Document Number)) | 8012542941705 |
| Package Level 1 Units: (Certificates and Declarations (Document Number)) | 1 piece |
| Package Level 1 Width: (Certificates and Declarations (Document Number)) | 0.073 m |
| Package Level 1 Height: (Certificates and Declarations (Document Number)) | 0.078 m |
| Package Level 1 Gross Weight: (Certificates and Declarations (Document Number)) | 0.525 kg |
| Package Level 1 Depth / Length: (Certificates and Declarations (Document Number)) | 0.09 m |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
