In Stock Hot Product
2CSB203401R1250

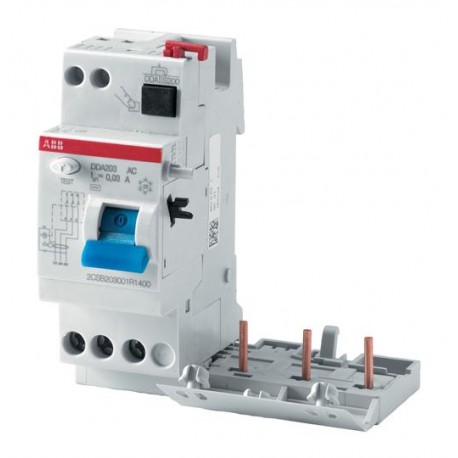

DDA203A25/0,03APR 2CSB203401R1250 ABB DDA203 A-25/0,03 AP-R RCD Block
$0.00USD
4260 in stock
Key Specifications
Customs Tariff Number::85363030
Minimum Order Quantity::1 piece
Standards: (Dimensions):IEC/EN 61009 Ann. G
Power Loss: (Dimensions):3 W
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Customs Tariff Number: | 85363030 |
| Minimum Order Quantity: | 1 piece |
| Standards: (Dimensions) | IEC/EN 61009 Ann. G |
| Power Loss: (Dimensions) | 3 W |
| RoHS Status: (Technical) | Following EU Directive 2011/65/EU |
| Number of Poles: (Dimensions) | 3 |
| ETIM 4: (Container Information) | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 5: (Container Information) | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 6: (Container Information) | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 7: (Container Information) | EC002297 - Residual current circuit breaker (RCCB) module |
| Rated Current (In): (Dimensions) | 25 A |
| Rated Voltage (Ur): (Dimensions) | 230/400 V |
| RoHS Information: (Environmental) | 2CSC427001K2701 |
| Ambient Air Temperature: (Technical) | Operation -25 ... +55 °CStorage -40 ... +70 °C |
| Instructions and Manuals: (Ordering) | 2CSB423001D003 |
| Rated Residual Current: (Dimensions) | 30 mA |
| Operating Characteristic: (Dimensions) | Instantaneous (APR High Immunity) |
| Product Net Width: (Popular Downloads) | 0.087 m |
| Type of Residual Current: (Dimensions) | A type |
| Product Net Height: (Popular Downloads) | 0.093 m |
| Product Net Weight: (Popular Downloads) | 0.158 kg |
| Instructions and Manuals: (Environmental) | 2CSB423001D003 |
| Environmental Information: (Environmental) | Refer to RoHS |
| Data Sheet, Technical Information: (Ordering) | 9AKK107046A0424 |
| Declaration of Conformity - CE: (Environmental) | 9AKK106713A5614 |
| Product Net Depth / Length: (Popular Downloads) | 0.069 m |
| Object Classification Code: (Container Information) | Q |
| Package Level 1 EAN: (Certificates and Declarations (Document Number)) | 8012542811015 |
| Package Level 1 Units: (Certificates and Declarations (Document Number)) | 1 piece |
| Package Level 1 Width: (Certificates and Declarations (Document Number)) | 0.096 m |
| Package Level 1 Height: (Certificates and Declarations (Document Number)) | 0.075 m |
| Package Level 1 Gross Weight: (Certificates and Declarations (Document Number)) | 0.199 kg |
| Package Level 1 Depth / Length: (Certificates and Declarations (Document Number)) | 0.102 m |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
