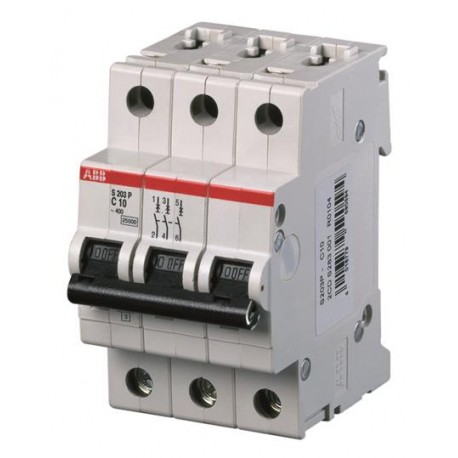

S203P-C1 2CDS283001R0014 ABB Miniature Circuit Breaker S200P 3P C 1 A
$0.00USD
3789 in stock
Key Specifications
Remarks: (Dimensions):IP40 in enclosure with cover
Standards: (Dimensions):IEC/EN 60898-1IEC/EN 60947-2UL 1077CSA 22.2 No. 235
Identifier (Accessories):Qty
Power Loss: (Dimensions):4.2 Wat Rated Operating Conditions per Pole 1.4 W
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Remarks: (Dimensions) | IP40 in enclosure with cover |
| Standards: (Dimensions) | IEC/EN 60898-1IEC/EN 60947-2UL 1077CSA 22.2 No. 235 |
| Identifier (Accessories) | Qty |
| Power Loss: (Dimensions) | 4.2 Wat Rated Operating Conditions per Pole 1.4 W |
| RoHS Status: (Technical) | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Actuator Type: (Dimensions) | Insulation group II, black, sealable |
| Terminal Type: (Dimensions) | Screw Terminals |
| 2CCA880100R0001 (Accessories) | 1 |
| 2CCA880101R0001 (Accessories) | 1 |
| 2CCA880102R0001 (Accessories) | 1 |
| 2CDS200909R0001 (Accessories) | 1 |
| 2CDS200909R0002 (Accessories) | 1 |
| 2CDS200912R0001 (Accessories) | 1 |
| 2CDS200918R0001 (Accessories) | 1 |
| 2CDS200922R0001 (Accessories) | 1 |
| 2CDS200936R0001 (Accessories) | 1 |
| 2CDS200936R0002 (Accessories) | 1 |
| 2CDS200936R0003 (Accessories) | 1 |
| 2CDS200946R0001 (Accessories) | 1 |
| 2CDS200946R0002 (Accessories) | 1 |
| 2CDS200946R0003 (Accessories) | 1 |
| 2CDS200970R0001 (Accessories) | 1 |
| 2CDS200970R0002 (Accessories) | 1 |
| 2CSS200911R0001 (Accessories) | 1 |
| 2CSS200911R0002 (Accessories) | 1 |
| 2CSS200911R0003 (Accessories) | 1 |
| 2CSS200911R0004 (Accessories) | 1 |
| 2CSS200911R0005 (Accessories) | 1 |
| 2CSS200911R0006 (Accessories) | 1 |
| 2CSS200911R0007 (Accessories) | 1 |
| 2CSS200911R0008 (Accessories) | 1 |
| 2CSS200911R0009 (Accessories) | 1 |
| 2CSS200911R0010 (Accessories) | 1 |
| 2CSS200998R0001 (Accessories) | 1 |
| 2CSS200999R0001 (Accessories) | 1 |
| 2CSS201997R0013 (Accessories) | 1 |
| 2CSS203997R0013 (Accessories) | 1 |
| 2CSS204997R0013 (Accessories) | 1 |
| GHS2001901R0003 (Accessories) | 1 |
| Number of Poles: (Dimensions) | 3 |
| Housing Material: (Dimensions) | Insulation Group II, RAL 7035 |
| Pollution Degree: (Dimensions) | 3 |
| ETIM 4: (Container Information) | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 5: (Container Information) | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 6: (Container Information) | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 7: (Container Information) | EC000042 - Miniature circuit breaker (MCB) |
| Mounting Position: (Dimensions) | Any |
| Tightening Torque: (Dimensions) | 2.8 N·m |
| UNSPSC: (Container Information) | 39121614 |
| eClass: (Container Information) | 7.0 27141901 |
| Rated Current (In): (Dimensions) | 1 A |
| Connecting Capacity: (Dimensions) | Busbar 10 / 10 mm²Flexible with Ferrule 0.75 ... 16 mm²Flexible 0.75 ... 16 mm²Rigid 0.75 ... 25 mm²Stranded 0.75 ... 25 mm² |
| Operational Voltage: (Dimensions) | Maximum (Incl. Tolerance) 440 V ACMaximum 440 V ACMinimum 12 V ACMinimum 12 V DC |
| Rated Frequency (f): (Dimensions) | 50 Hz60 Hz |
| Screw Terminal Type: (Dimensions) | Failsafe Bi-directional Cylinder-lift Terminal |
| Degree of Protection: (Dimensions) | IP20 |
| Electrical Endurance: (Dimensions) | 20000 AC cycle |
| Mounting on DIN Rail: (Dimensions) | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Overvoltage Category: (Dimensions) | III |
| Energy Limiting Class: (Dimensions) | 3 |
| Ambient Air Temperature: (Technical) | Operation -25 ... +55 °CStorage -40 ... +70 °C |
| Customs Tariff Number: (Accessories) | 85362010 |
| Instructions and Manuals: (Ordering) | 2CSC400002D0208 |
| RoHS Information: (Technical UL/CSA) | 2CDK400003K0201 |
| Dielectric Test Voltage: (Dimensions) | 50 / 60 Hz, 1 min: 2 kV |
| Environmental Conditions: (Technical) | 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 % |
| Minimum Order Quantity: (Accessories) | 1 piece |
| Tripping Characteristic: (Dimensions) | C |
| Product Net Width: (Popular Downloads) | 52.5 mm |
| Recommended Screw Driver: (Dimensions) | Pozidriv 2 |
| Product Net Height: (Popular Downloads) | 88 mm |
| Product Net Weight: (Popular Downloads) | 0.42 kg |
| Rated Operational Voltage: (Dimensions) | acc. to IEC 60898-1 400 V ACacc. to IEC 60947-2 400 V AC |
| Contact Position Indication: (Dimensions) | Red ON / Green OFF |
| Tightening Torque UL/CSA: (Environmental) | 25 in·lb |
| Mechanical Endurance (Nendu): (Dimensions) | 20000 cycle |
| Connecting Capacity UL/CSA: (Environmental) | Busbar 18-8 AWGConductor 18-4 AWG |
| Rated Insulation Voltage (Ui): (Dimensions) | acc. to IEC/EN 60664-1 440 V |
| Instructions and Manuals: (Technical UL/CSA) | 2CSC400002D0208 |
| Data Sheet, Technical Information: (Ordering) | 9AKK106930A8017 |
| Environmental Information: (Technical UL/CSA) | 2CDK400030D0201 |
| Product Net Depth / Length: (Popular Downloads) | 69 mm |
| Rated Short-Circuit Capacity (Icn): (Dimensions) | (400 V AC) 25 kA |
| Maximum Operating Voltage UL/CSA: (Environmental) | 480Y/277 V AC |
| Declaration of Conformity - CE: (Technical UL/CSA) | 2CDK403003D0402 |
| Interrupting Rating acc. to UL1077: (Environmental) | (480 V AC) 10 kA(480Y / 277 V AC) 10 kA |
| Object Classification Code: (Container Information) | F |
| Rated Impulse Withstand Voltage (Uimp): (Dimensions) | 4 kV(6.2 kV @ sea level)(5.0 kV @ 2000 m) |
| Resistance to Shock acc. to IEC 60068-2-27: (Technical) | 25g / 2 shocks / 13 ms |
| Resistance to Vibrations acc. to IEC 60068-2-6: (Technical) | 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In |
| Rated Service Short-Circuit Breaking Capacity (Ics): (Dimensions) | (400 V AC) 12.5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): (Dimensions) | (400 V AC) 25 kA |
| Package Level 1 EAN: (Certificates and Declarations (Document Number)) | 4016779596886 |
| Package Level 1 Units: (Certificates and Declarations (Document Number)) | 1 piece |
| Package Level 1 Width: (Certificates and Declarations (Document Number)) | 92 mm |
| Package Level 1 Height: (Certificates and Declarations (Document Number)) | 80 mm |
| Package Level 1 Gross Weight: (Certificates and Declarations (Document Number)) | 0.435 kg |
| Package Level 1 Depth / Length: (Certificates and Declarations (Document Number)) | 58 mm |
