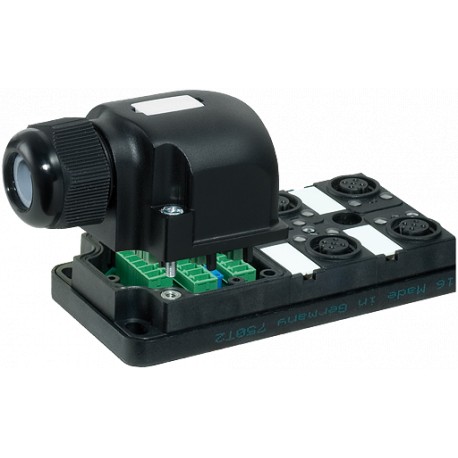

27776 MURRELEKTRONIK MVP12, 4XM12, 4POLE, PLUG. CAP SCT.
$0.00USD
4958 in stock
Key Specifications
EAN:4048879063272
PIN 1:(+)
PIN 3:(-)
PIN 4:(NO)/(S1)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879063272 |
| PIN 1 | (+) |
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| PIN 5 | (Earth) |
| eClass | 27279219 |
| Housing | Plastic, flame retardant |
| Weight: | 0.098 kg |
| Art.No.: | 27776 |
| Connection | Screw plug-in terminals: max. 1.5 mm² (AWG 16) |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED display | LED (green): Power / LED (yellow): (S1) |
| Total current | max. 2 × 8 A |
| Packaging unit | 1 |
| Signal per port | 1 - (31-32) |
| Locking of ports | Screw thread M12 × 1 mm |
| Operating voltage | 24 V DC |
| Temperature range | -20...+80 °C |
| country of origin | DE |
| customs tariff number | 85369010 |
| Dimensions H × W × D | 100×50.2×17 mm |
| Operating current per contact | max. 4 A |
Product Description
MVP12, 4XM12, 4POLE, PLUG. CAP SCT.Plug. cap, field-wireable via screw terminals
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
