27539

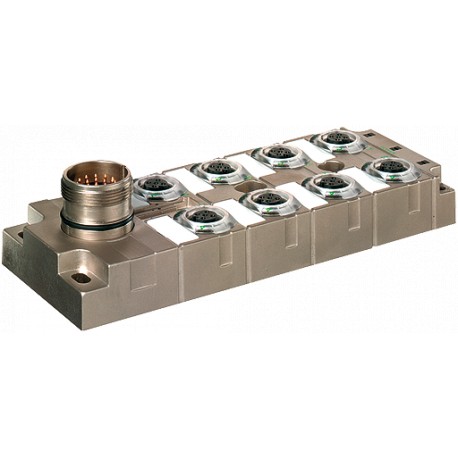

27539 MURRELEKTRONIK MVP-METALL, 8XM12, 5POLE, M23 19POL. CON.
$0.00USD
4717 in stock
Key Specifications
:LED (green): Power / LED (yellow): (S1/S2) / LED (red): Failure
EAN:4048879063531
PIN 1:(+)
PIN 2:Port 1...7: (NO)/(S2); Port 8: diagnostic
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| LED (green): Power / LED (yellow): (S1/S2) / LED (red): Failure | |
| EAN | 4048879063531 |
| PIN 1 | (+) |
| PIN 2 | Port 1...7: (NO)/(S2); Port 8: diagnostic |
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| PIN 5 | (Earth) |
| eClass | 27279219 |
| Housing | Zinc die casting, matte nickel plated |
| Protection | IP65, IP67, IP68 inserted and tightened (EN 60529) |
| Total current | max. 10 A |
| Packaging unit | 1 |
| Inrush capacity | max. 1470 µF |
| Unit protection | Short-circuit, overload (PNP switching) |
| Locking of ports | Screw thread (M12×1 mm) |
| Diagnostic output | active high, max. load 25 mA, M23 - PIN 18 |
| Operating voltage | 24 V DC (EN 61131-2) |
| Temperature range | -20...+60 °C |
| country of origin | CZ |
| Dimensions H×W×D | 145×55×21 mm |
| Current consumption | max. 35 mA |
| customs tariff number | 85369010 |
| Functional description | All M12 ports are current monitored regarding 0 V total current (contact 3), and are switched off in case of overload or short-circuit (self-resetting). Operating voltage remains the same. In case of a fault the DIAGNOSTIC signal “active high” to the PLC |
| Operating current (contact 3) | max. 2 A (shutoff 2.3...2.7 A) |
| Required power supply with max. ports | min. 20 A |
Product Description
MVP-METALL, 8XM12, 5POLE, M23 19POL. CON.Connector exit st the top
