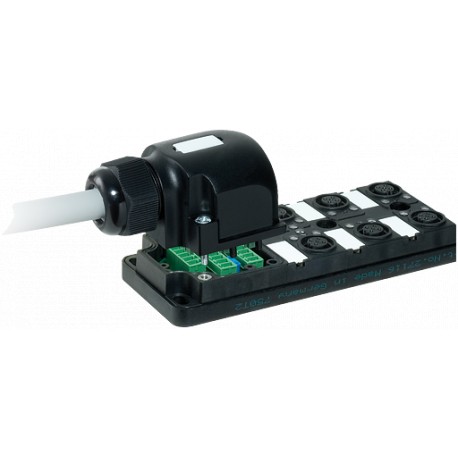

27034 MURRELEKTRONIK MVP12, 6XM12, 5 pole, pluggable cable 15.0m PUR/PVC 12x0,34 + 3x0,75
$0.00USD
3389 in stock
Key Specifications
EAN:4048879064477
PIN 1:(+)
PIN 2:(NC)/(S2)
PIN 3:(-)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879064477 |
| PIN 1 | (+) |
| PIN 2 | (NC)/(S2) |
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| PIN 5 | (Earth) |
| eClass | 27279219 |
| Housing | Plastic, flame retardant |
| Weight: | 3.052 kg |
| Art.No.: | 27034 |
| Material | PBT |
| Outer Ø | 9.8 mm ±5% |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| LED display | LED (green): Power / LED (yellow): (S1/S2) |
| Cable number | 388 |
| Jacket Color | gray |
| Total current | max. 8 A |
| Color (jacket) | gray |
| Packaging unit | 1 |
| Wire isolation | PVC (yebr, rd, grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, br, gnye, bl) |
| Signal per port | 2 |
| Locking of ports | Screw thread M12 × 1 mm |
| Material (jacket) | PUR/PVC |
| Operating voltage | 24 V DC ±25% |
| Temperature range | -20...+80 °C |
| country of origin | CZ |
| C-track properties | 2 Mio. |
| Bend radius (fixed) | 10 × outer Ø |
| Bend radius (moving) | 12 × outer Ø |
| No./diameter of wires | 12×0.34 + 3×0.75 mm² |
| customs tariff number | 85444290 |
| Dimensions H × W × D | 125×50.2×17 mm |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -5...+70 °C |
| Operating current per contact | max. 4 A |
Product Description
MVP12, 6XM12, 5POLE, PLUGGABLE CABLE15.0m PUR/PVC 12x0,34+3x0,75
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
