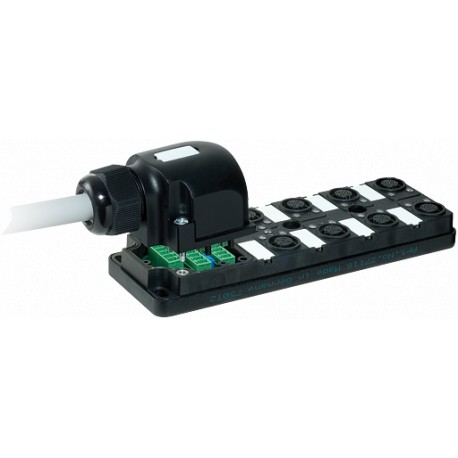

27024 MURRELEKTRONIK MVP12, 8XM12, 4 pole, pluggable cable 15.0m PUR/PVC 8x0,34 + 3x0,75
$0.00USD
4728 in stock
Key Specifications
AWG:similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
EAN:4048879064552
PIN 1:(+)
PIN 3:(-)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²) |
| EAN | 4048879064552 |
| PIN 1 | (+) |
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| PIN 5 | (Earth) |
| Shield | no |
| eClass | 27279219 |
| Housing | Plastic, flame retardant |
| Weight: | 2.426 kg |
| Art.No.: | 27024 |
| Material | PBT |
| Outer Ø | 8.1 mm ±5% |
| Cable Type | 2 (PUR/PVC) |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| LED display | LED (green): Power / LED (yellow): (S1) |
| Cable number | 362 |
| Jacket Color | gray |
| Test voltage | 2 000 V AC |
| Total current | max. 8 A |
| Color (jacket) | gray |
| Packaging unit | 1 |
| Wire isolation | PVC |
| Diameter (core) | 8×0.34 + 3×0.75 mm² |
| Material (wire) | Cu wire, bare |
| Nominal voltage | U0/U 300/300 V AC |
| Resistor (core) | max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C) |
| Signal per port | 1 - (31-32) |
| Approval (cable) | UL (AWM-Style 20549/1731), CE conform |
| Locking of ports | Screw thread M12 × 1 mm |
| Material (jacket) | PUR/PVC (UL/CSA) |
| Operating voltage | 24 V DC ±25% |
| Outer-Ø (jacket) | 8.1 mm ±5% |
| Temperature range | -20...+80 °C |
| country of origin | CZ |
| C-track properties | 2 Mio. |
| Cable weight [g/m] | 115,5 |
| Bend radius (fixed) | 5 × outer Ø |
| Construction (core) | 19 × 0.15 mm (0.34 mm²); 24 × 0.2 mm (0.75 mm²); (wire class 5) |
| chemical resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Bend radius (moving) | 10 × outer Ø |
| Cable identification | 362 |
| Current load capacity | to DIN VDE 0298-4 |
| No./diameter of wires | 8×0.34 + 3×0.75 mm² |
| Single wire Ø (core) | 0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²) |
| customs tariff number | 85444290 |
| Acceleration (C-track) | max. 10 m/s² |
| Dimensions H × W × D | 150×50.2×17 mm |
| Travel speed (C-track) | max. 2 m/s |
| Wire-Ø incl. isolation | 1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²) |
| Color/numbering of wires | wh, vi, gn, ye, gr, pk, rd, bk+br, bl, gnye longitudinally striped |
| Material (wire isolation) | PVC |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -5...+70 °C |
| Operating current per contact | max. 4 A |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| No. of bending cycles (C-track) | max. 2 Mio. (25 °C) |
| Shore hardness (wire isolation) | 43 ±5 D |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
Product Description
MVP12, 8XM12, 4POLE, PLUGGABLE CABLE15.0m PUR/PVC 8x0,34+3x0,75
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
