24FFMSJ45
24FFMSJ45 EATON ELECTRIC Fuse-link, medium voltage, 45 A, AC 24 kV, 3", 76 x 442 mm, full-range, DIN, with s..
$0.00USD
3591 in stock
Key Specifications
Feature Name:Feature Value
Length (EF001438):442 mm
Diameter (EF000551):76 mm
Standard (EF009322):DIN
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Length (EF001438) | 442 mm |
| Diameter (EF000551) | 76 mm |
| Standard (EF009322) | DIN |
| Application (EF000041) | Primary side transformer protection |
| Voltage type (EF000187) | AC |
| With striker (EF008175) | Yes |
| Rated current (EF000227) | 45 A |
| Rated voltage (EF000228) | 24 kV |
| Rated frequency (EF001663) | 50 Hz |
| Breaking capacity (EF005617) | 35.5 kA |
| Installation technique (EF001474) | Air |
| Release characteristic (EF000889) | Other |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Performance category according to IEC 60282-1 (EF012539) | Full range |
Product Description

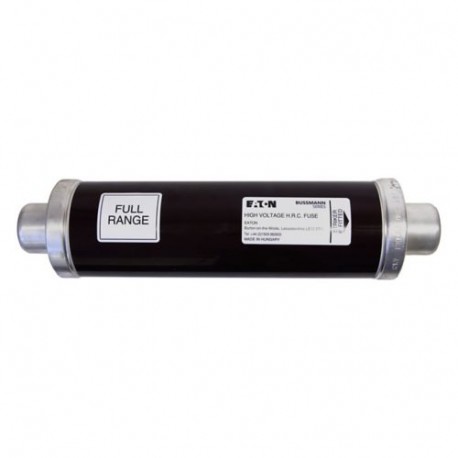

Eaton Bussmann series medium voltage DIN fuse, 45 A, 24 kV, 35.5 kA, 76 x 442 mm, With Striker
