246.12591

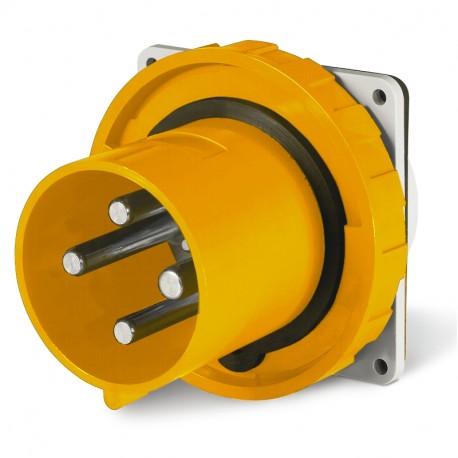

246.12591 SCAME APPLIANCE INLET 3P+E IP66/IP67 125A 4h
$0.00USD
3575 in stock
Key Specifications
Poles::3P+E
Colour::YELLOW
Flange::114X114MM
Volume::28800 CCM
Supplier Information
SCAME
Products: 16209
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Poles: | 3P+E |
| Colour: | YELLOW |
| Flange: | 114X114MM |
| Volume: | 28800 CCM |
| EAN code: | 8001636078069 |
| Quantity: | 10 |
| Dimensions: | 300X400X240 (MM) |
| Net Weight: | 0.922KG |
| Description: | Carton |
| Gross weight: | 9.92 KG |
| Hour position: | 4h |
| Minimum order: | 10NR |
| Rated current: | 125A |
| Rated voltage: | 100-130V |
| Commercial series: | OPTIMA Series |
| Working frequency: | 50Hz |
| Protection degree IP: | IP66/IP67 |
| Synthetical description: | FLUSH MOUNTING APPLIANCE INLET |
| Harmonized System Code (HSCode): | 85366990 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
